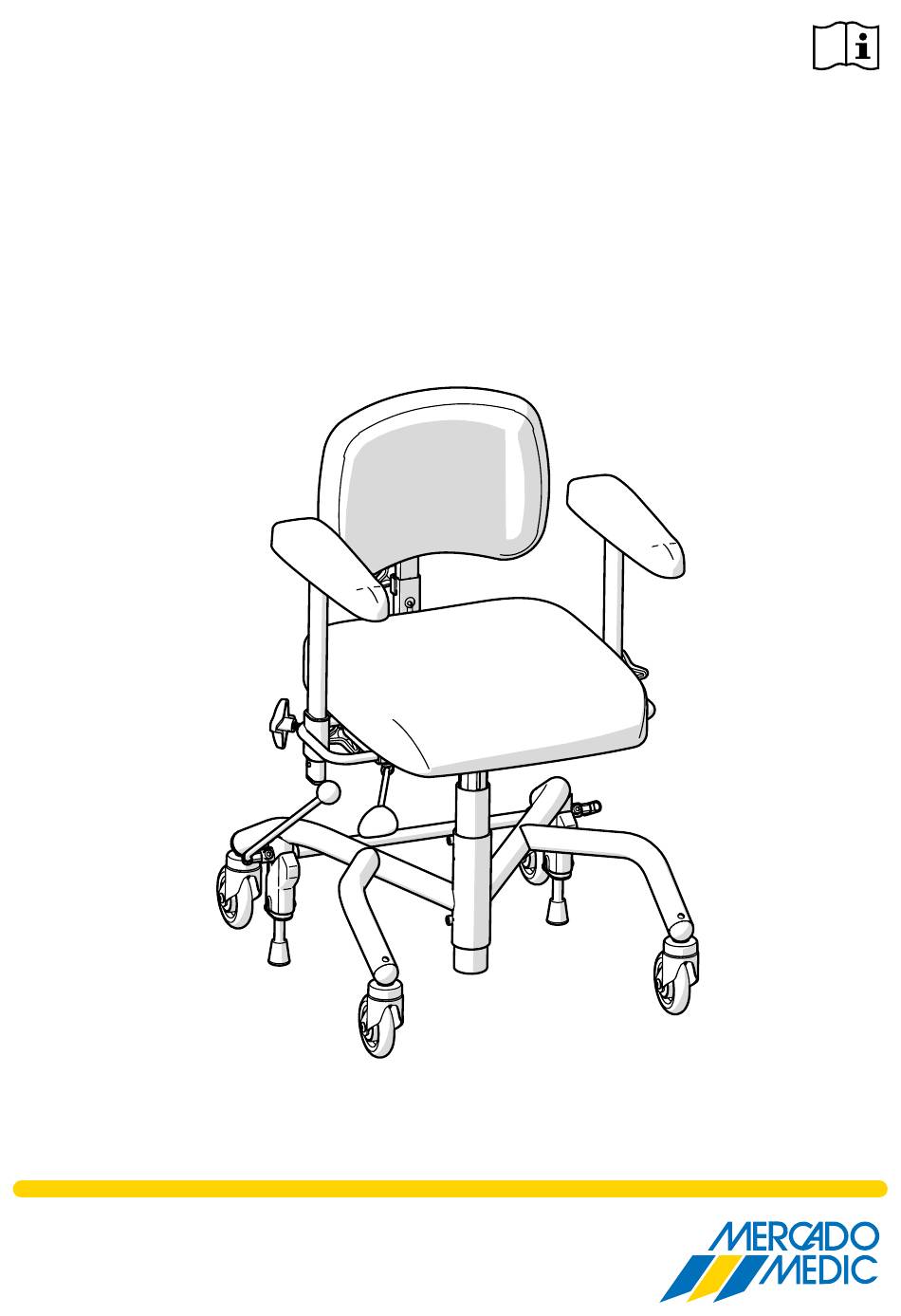

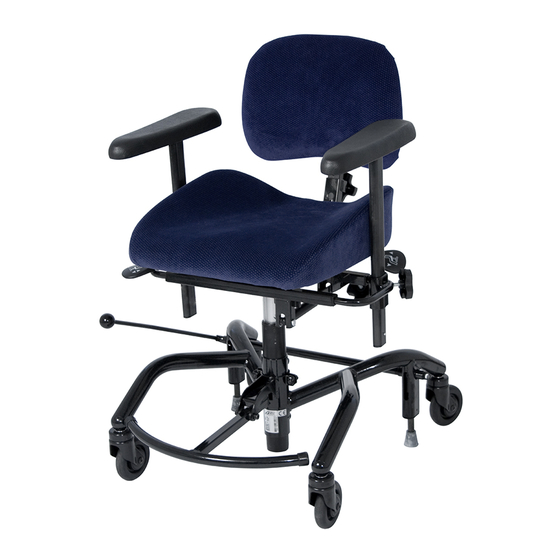

INSTRUCTIONS FOR USE
for medical work chairs in the REAL 9000 PLUS
EN
device range
(international)
Instructions for use and care
Translation of manual
Document No.: 21-08742-EN
Revision: 01
Valid from: 2021-05-26
Amended: -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REAL 9000 PLUS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mercado Medic REAL 9000 PLUS Series

Summary of Contents for Mercado Medic REAL 9000 PLUS Series

  • Page 1 INSTRUCTIONS FOR USE for medical work chairs in the REAL 9000 PLUS device range (international) Instructions for use and care Translation of manual Document No.: 21-08742-EN Revision: 01 Valid from: 2021-05-26 Amended: -...
  • Page 2 [Space for device label with serial number]...

  • Page 3: Table Of Contents

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Table of contents User information 5.12. Armrest mechanism ... . . 28 5.13. Base ......30 1.

  • Page 4: Introduction

    We manufacture all our different medical chairs under our own management in Sweden. Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with applicable labour and environmental legislation.

  • Page 5: Contact Details

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Introduction 1.1. Contact details 1.2. Warranty Manufacturer All components of Mercado Medic's devices Street address: Mercado Medic AB, are covered by warranty, under the time Tryffelslingan 14, SE-181 57 Lidingö, Sweden periods and general terms and conditions...

  • Page 6: Getting Started

    If you have any questions about your device or if something unexpected has happened, please first contact your prescriber or dealer. You can find up-to-date contact details in Section 1.1. Contact details. You are also welcome to contact us at Mercado Medic. 2.1. Before use...
  • Page 7 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Getting started Backrest mechanism (Medic) Neck support Battery Brake lever Armrests Figure 2.1. Preparations before the device is put into use. Consider the following before and during • The device must be operated with care. use of the device Always be aware of your surroundings •...
  • Page 8 If the device is modified, the CE been released, the movement can be marking no longer applies and interrupted by pressing the button for Mercado Medic may no longer have movement in another direction. full device liability. Modifications may affect the safety of the device •...

  • Page 9: Electrical And Manual Height

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Getting started 2.2. Electrical and manual height adjustment 2.3. Charging Depending on the model, the device has For electric models, the battery should electric or manual height adjustment. be charged once a day.

  • Page 10: Transfers

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Getting started How to charge the device 2.4. Transfers 1. Connect the charger plug into the When moving around while sitting in the charging socket, see Figure 2.5. The device, it is important to make good contact charging socket is normally located at the with the floor.

  • Page 11: Caring For The Device

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Caring for the device 3. Caring for the device Clean the device according to the instructions in this section to maintain its functions and service life. If you still have issues that cannot be resolved using available home resources, please contact your prescriber or distributor for reconditioning.

  • Page 12: Transport And Storage

    • In the case of air transport, the device must be stored in the hold. Original • The device should be lifted by two people. Mercado Medic batteries are approved for Suitable grip points are at the front, air transport. For information on battery rear, right and left sides of the seat, see type, see 7.

  • Page 13: Intended Use

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Intended use 4. Intended use 4.1. Operating environment The REAL 9000 device range consists of modular indoor work chairs designed to be • The device is intended for indoor use only used by people who need assistive devices to and must not be used outdoors.

  • Page 14: Configurations And Settings

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5. Configurations and settings This section is primarily aimed at you as a and other padded parts, please visit our prescriber of the device. It describes the website www.mercado.se.

  • Page 15: Basic Design

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.2. Basic design The device is always supplied with seat, backrest, armrests, base with four castors (100 mm as standard), manual brake with brake lever (350 mm as standard) and an angular seat frame that does not allow seat tilt.

  • Page 16: Electrical Functions

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.3. Electrical functions Electric models can be equipped with up to four electrical functions, electric height adjustment, electric brake (optional), electric seat tilt (optional) and electric back recliner (optional). These can be adjusted in two ways;...
  • Page 17 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Seat tilt The seat tilt control button is located under the front edge of the left armrest, see Figure 5.3. Adjustment: 1. Press up for backward seat tilt. 2.
  • Page 18 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Brake Button in the middle at the bottom, see Figure 5.6. Activation and deactivation of brake: 1. A short press activates the brake. 2. A short press on the same button deactivates Figure 5.6.

  • Page 19: Seat

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.4. Seat Seats are available in three versions, ErgoMedic, ErgoMedic Plus and ErgoMedic Plus Coxit. These are also available with the optional Slow Recovery padding. Seat upholstery is available in four materials: plush, synthetic leather (optional), patterned fabric (optional) and hygiene fabric (optional).

  • Page 20: Manual Height Adjustment

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.5. Manual height adjustment Manual height adjustment is available in two ranges, standard seat height and low seat height. These are also available for three different user weight ranges 0 - 55 kg, 55 - 90 kg and 90 - 150 kg.

  • Page 21: Manual Seat Tilt

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.6. Manual seat tilt Manual seat tilt (optional) is available in three ranges: standard (15° forward, 8° backward), reverse seat tilt (8° forward, 15° backward) and all seat tilt backwards (0° forward, 23° backwards).

  • Page 22: Coxit Mechanism

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.7. Coxit mechanism The Coxit mechanism has angle-adjustable flaps that can be angled down to a maximum of 45°. The flaps are set using a knob. On configurations without the seat silt, Coxit mechanism controls are placed under the front edge of the seat on the right and left sides, see Figure 5.17.

  • Page 23: Seat Rotation

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.8. Seat rotation Seat rotation (optional) allows the seat to be rotated relative to the base in ranges between +90° to -90°. Seat rotation The rotation control (A) is placed under the seat on the right side, see Figure 5.19.
  • Page 24 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings ErgoMedic Support ErgoMedic Support is a lightly curved backrest with more padding and an extra built-up lumbar support, see Figure 43 cm 5.21. The seat is available in sizes from 350 x 430 mm to 460 x 430 mm.

  • Page 25: Manual Backrest Mechanism

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.10. Manual backrest mechanism The manual back mechanism is available in three versions, Standard, Medic (optional) and Comfort (optional). These are available in low and high models. Back recliner adjustment is also available as an electrical function, see 5.3.
  • Page 26 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Medic Medic can be adjusted in height (A), angle of backrest (B, angle of back recliner (C) and depth (E), see Figure 5.28. The back recliner can be adjusted in the range of 15° forward to 45°...

  • Page 27: Armrest Panel

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.11. Armrest panel Armrest panels are available in five versions, ErgoMedic, Mobile (optional), ErgoMedic Plus (optional), Hemiplegia (optional) and Extra Soft (optional). Upholstery for armrest panels is available in five materials, synthetic leather, plush (optional), patterned fabric (optional), hygiene fabric (optional) and genuine leather (optional).

  • Page 28: Armrest Mechanism

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Extra Soft The Extra Soft armrest panel is a slightly wider armrest panel with a very soft and flexible foam. The armrest panel .is designed for pain-sensitive users, but also works for users who sit for long periods of time, see Figure 5.33.
  • Page 29 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Foldable armrests Folding armrests are adjustable in height (A), width (B) and can be folded backwards (C), see Figure 5.35. For height and width adjustment, see PLUS armrest. Folding the armrests: 1.

  • Page 30: Base

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.13. Base The REAL 9000, 9100, 9700 and 9800 PLUS adult models are equipped with the 9000 PLUS 48 base. The base is front braked and standard for configurations with seat widths 400–480 mm. The REAL 9300 and 9400 PLUS child models are equipped with the 9000 PLUS 43 base.
  • Page 31 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Folding foot ring 1/4 The folding foot ring 1/4 is located at the front of the base and folds up into one piece, see Figure 5.41. Figure 5.41.
  • Page 32 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings Base with high-low function The base has individual brakes on each castor, as well as built-in adjustment for seat height and tilt, see Figure 5.44. Seat height (A) and seat tilt (B) are adjusted with pedals at the rear edge of the base, see Figure 5.45.

  • Page 33: Manual Brake

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Configurations and settings 5.14. Manual brake Manual brake is available in two versions, brake lever (350 mm as standard) and foot brake (optional). The brake lever is available in two models, brake lever with knob and brake lever with loop.

  • Page 34: Individual Adaptation

    • The user's centre of gravity must be risk of strangulation. maintained over the lifting mechanism. In addition to its own range, Mercado Medic • Padded parts must be able to withstand has combination agreements with several the applicable flammability requirements companies.
  • Page 35 CE marking Regulation on Medical Devices (EU) 2017/745, MDR. For questions regarding customisation, please contact the device Manager at Mercado Medic using the contact details of the head office under Section 1.1. Contact details. 21-08742-EN-01...

  • Page 36: Important Safety Information

    6.1. Standards met and classification All textiles on the devices have been tested and approved according to the following fire Mercado Medic's work chairs are CE protection standards: marked in accordance with the Regulation on Medical Devices (EU) 2017/745, MDR, •...

  • Page 37: Warnings

    Medic. If this is not followed, the would like individual customisation, CE marking no longer applies and contact your prescriber or distributor. Mercado Medic may no longer have If the device is modified, the CE full device liability. marking no longer applies and...

  • Page 38: Expected Service Life

    6.3. Expected service life provided alongside the device by Mercado Medic AB, the CE marking The expected service life of the device is ten and Mercado Medic AB’s device years when used in accordance with these liability will cease to be valid for any instructions for use.

  • Page 39: Reporting Of Adverse Events And Incidents

    Servicing and reconditioning, in addition to the overall assessment below. As a manufacturer of medical devices in the EU, Mercado Medic is obliged to have a After the expected service life, Mercado system to monitor how our devices work in Medic cannot guarantee the suitability and practical use.

  • Page 40: Technical Information

    Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability.
  • Page 41 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Technical information Device characteristics for all models REAL 9000 PLUS REAL 9100 PLUS REAL 9700 PLUS REAL 9300 PLUS REAL 9800 PLUS REAL 9400 PLUS Width 480 mm 430 mm 440 mm Length...

  • Page 42: Symbols

    Instructions for use for medical work chairs in the REAL 9000 PLUS device range Technical information 7.1. Symbols The following symbols are used on the device controls, markings or in these instructions for use. For an overview of the positioning of symbols, see Figure 7.1-7.5. No.
  • Page 43 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Technical information No. Electric controls and control box Connection for back recliner Brake connection Read the instructions for use before use No. Labelling and instructions for use Warning 27–41 Warning, crushing risk Figure 7.3.
  • Page 44 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Technical information No. Labelling and instructions for use Permitted relative humidity Permitted altitude For indoor use only Maximum user weight Date of manufacture Manufacturer Medical device Serial number CE mark showing the device’s conformity with the European regulatory framework...

  • Page 45: Servicing & Reconditioning

    Medic. If this is not followed, the The main components of the device include CE marking no longer applies and base, brake, lifting mechanism, seat frame, Mercado Medic may no longer have back recliner and armrest mechanism. The full device liability. inspection must include welds, lockable Warning! As a user, you should functions and settings.

  • Page 46: Troubleshooting Guide

    Servicing & reconditioning 8.1. Troubleshooting guide If none of the following actions address the problem that has occurred, service may be required. Please contact your dealer or get in touch with Mercado Medic, see 1.1. Contact details. Troubleshooting for electrical functions...
  • Page 47 The device does not brake The base is warped and Replace the base and report satisfactorily. needs to be replaced. this event to Mercado Medic. See 1.1. Contact details. The brakes must be checked on a regular basis, see 6. Important safety information. 21-08742-EN-01...

  • Page 48: Battery Replacement

    8.2. Battery replacement Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability.

  • Page 49: Reconditioning And Periodic Maintenance

    This type of new user. work may therefore only be carried out by a Mercado Medic authorised Inspection during reconditioning technician. Reconditioning must include a thorough Warning! All parts of the device visual inspection of the device’s main...
  • Page 50 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Servicing & reconditioning Long-term storage of batteries retain its functionality, see 2.3. Charging. During longer periods of storage, the battery If these charging instructions are followed, is automatically disconnected after seven the battery will maintain sufficient capacity days.
  • Page 51 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Servicing & reconditioning Area Reconditioning instructions 2 Electrical components Electronics Start by charging the device for at least 5 seconds to activate the electronics. Check the electronics and all electrical functions.
  • Page 52 Make sure that the lifting mechanism does not have any play when rotating or loading from side to side. Replace the lifting mechanism in case of play. Defective lifting mechanisms can be sent to Mercado Medic for repair. Lifting columns Raise the lifting mechanism to the highest position. Wipe the lifting column of dust and dirt with a dry cloth.
  • Page 53 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Servicing & reconditioning Area Reconditioning instructions 5 Base Welds Check all welds carefully for signs of cracks, corrosion and movement. Ensure good lighting and preferably use a magnifying glass, as small cracks can be difficult to detect on black lacquered bases.
  • Page 54 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Servicing & reconditioning Area Reconditioning instructions Gas spring-controlled If the device is equipped with gas spring controlled seat tilt, seat tilt check that the gas spring locks the seat tilt properly. If the seat tilt slowly changes under load, adjust the wire nipple.
  • Page 55 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Servicing & reconditioning Area Reconditioning instructions 10.3 Plastic plugs Check that guide bushings and plastic plugs are properly secured. Replace worn or damaged parts. 10.4 Armrest mechanics Check all welds and that there is no damage to mechanical parts that may impair or weaken the structure.

  • Page 56: Instructions For Destruction

    Warning! Installation, connection or dismantling is not risk-free. If components are handled incorrectly, for example, crushing damage may occur. This type of work may therefore only be carried out by a Mercado Medic authorised technician. 9.1. Recycling Instructions for recycling of components.
  • Page 57 Instructions for use for medical work chairs in the REAL 9000 PLUS device range Instructions for destruction 21-08742-EN-01...
