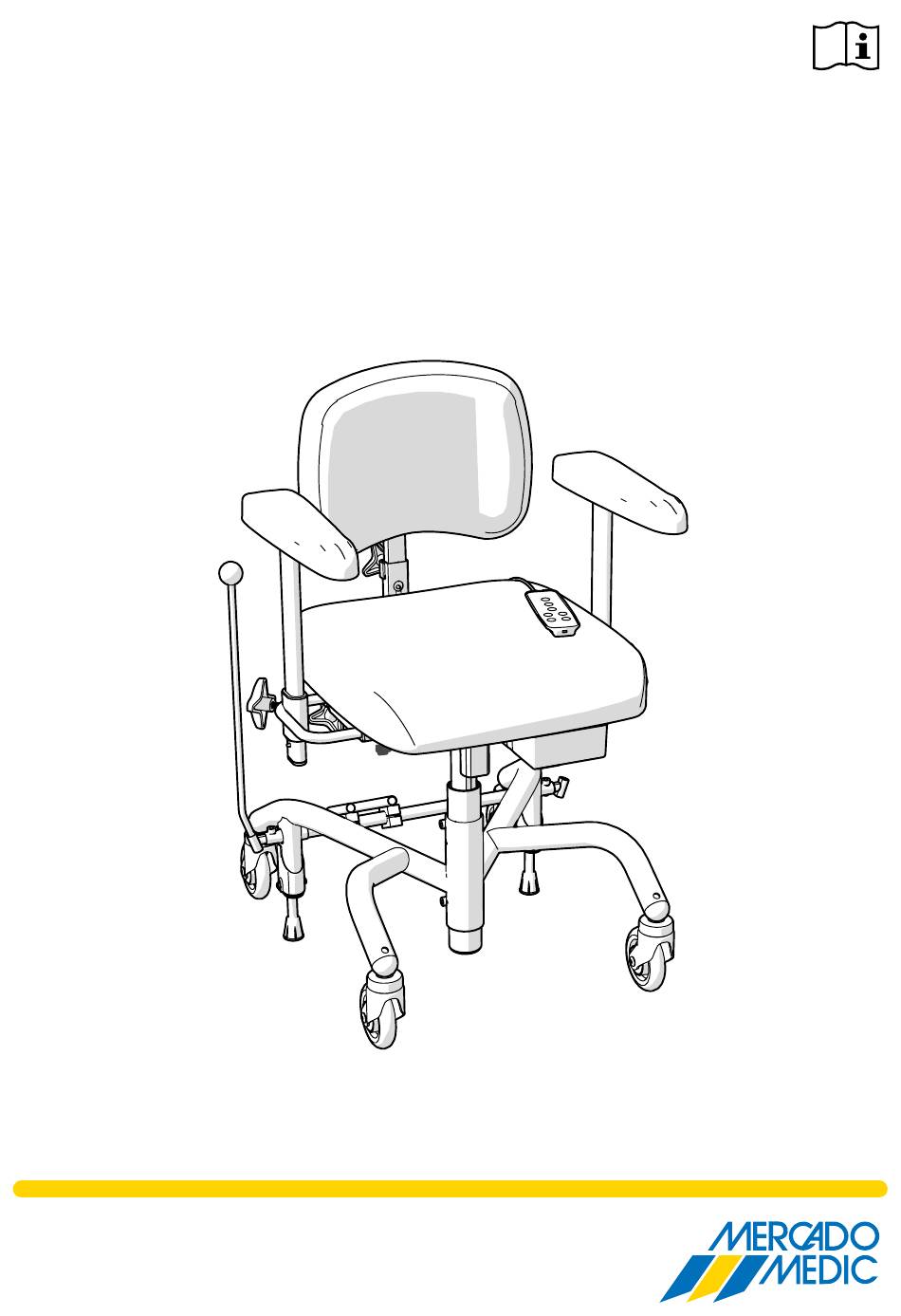

- Page 1 INSTRUCTIONS FOR USE for REAL 8000 PLUS Ophthalmology medical clinic chairs (international) Instructions for use and care Translation of manual Document No.: 21-08997-EN Revision: 00 Valid from: 2021-05-26 Amended: -...
- Page 2 [Space for device label with serial number]...
-
Page 3: Table Of Contents
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Table of contents User information 5.11. Base ......23 5.12. -
Page 4: Introduction
We manufacture all our different medical chairs under our own management in Sweden. Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with applicable labour and environmental legislation. -
Page 5: Contact Details
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Introduction 1.1. Contact details 1.2. Warranty Manufacturer All components of Mercado Medic's devices Street address: Mercado Medic AB, are covered by warranty, under the time Tryffelslingan 14, SE-181 57 Lidingö, Sweden... -
Page 6: Getting Started
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Getting started 2. Getting started As the operator of the device, this section is primarily aimed at you. It describes how to prepare the device for use, how to use its functions, and how to charge it. For care instructions, see 3. - Page 7 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Getting started Backrest mechanism (Medic) Neck support Battery Brake lever Armrests Figure 2.1. Preparations before the device is put into use. Consider the following before and during • The braking capacity of the device may be use of the device impaired on uneven floors.
- Page 8 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Getting started • The optional foot support ring is designed Warning! You are not permitted to to rest your feet on, not to stand on. modify the device yourself. Please contact your distributor if you would •...
-
Page 9: How To Use The Device's Functions
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Getting started 2.2. How to use the device’s functions 2.3. Charging The product is equipped with electric height The battery should be charged once every 24 adjustment (A) and is controlled by a wired hours. - Page 10 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Getting started How to charge the device 1. Inset the plug into the charging outlet (see Figure 2.4). The charging outlet is usually placed in the rear edge under the seat.
-
Page 11: Caring For The Device
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Caring for the device 3. Caring for the device Clean the device according to the instructions in this section to maintain its functions and service life. If needs arise that cannot resolved with the resources available, please contact your distributor for reconditioning. -
Page 12: Transport And Storage
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Caring for the device 3.4. Transport and storage • The device is intended to be transported and stored at between -25°C to +60°C When transporting and storing the device,... -
Page 13: Intended Use
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Intended use 4. Intended use 4.1. Operating environment The REAL 8000 product range consists of modular patient seats designed to be • The device is intended for indoor use only used in combination with primary clinical and must not be used outdoors. -
Page 14: Configurations And Settings
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5. Configurations and settings 5.1. Required level of competence for It describes the device's models, options setting and adjusting when configuring the device, and information about setting and adjusting the device's To attain the right position for correct X-rays, functions. -
Page 15: Basic Design
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.2. Basic design The device is always supplied with a seat, back rest, armrests, base with four castors (100 mm as standard), a foot brake with hand brake and an angular seat frame that does not allow for seat tilt. -
Page 16: Electrical Functions
These are adjusted via a wired hand-held controller (standard on models REAL 8000 PLUS EL 24V Easy low and REAL 8000 PLUS EL 24V Easy high) or a wireless remote control (standard on models REAL 8000 PLUS EL 24V Easy low extra and REAL 8000 PLUS EL 24V Easy high extra). -
Page 17: Seat
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings Back recliner Buttons on the lower keypad in the middle, see Figure 5.4. Adjustment: 1. Press up to move the back recliner forwards. 2. Press down to move the back recliner backwards. -
Page 18: Backrest
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.5. Backrest Back rests are available in the ErgoMedic model. The fabric for back rests is in faux leather. Further details about fabrics and available colours, please visit our website www.mercado.se. - Page 19 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings Medic Medic can be adjusted in height (A), angle of back rest (B, angle of back rest mechanism (C) and depth (D), see Figure 5.9. The back recliner can be adjusted in the range of 15°...
-
Page 20: Push Handles
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.7. Push handles Push handles (accessories) are available in the Clinic Push Handle version. Clinic Push Handle The height and angle (A) of the push handle can be adjusted, see Figure 5.11. -
Page 21: Armrest Mechanism
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.9. Armrest mechanism Three versions of the armrest mechanism are available in three versions: PLUS armrests, foldable armrests (optional) and armrests for sampling (optional). For more information on armrests for sampling, we recommend you consult the documents "REAL Eye Clinic Chairs"... -
Page 22: Neck Support
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.10. Neck support There are two optional head rest versions available: Flat and Cupped. Available fabric for head rest is faux leather. Further details about fabrics and available colours, please visit our website www.mercado.se. -
Page 23: Base
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.11. Base There are two Base designs available: Base Plus Clinic 43 (standard) and Base Plus Clinic 48. Bases are available in models with reverse brake (standard) and forward brake (optional). -
Page 24: Manual Brake
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.12. Manual brake Two versions of manual braking are available: a foot brake and a brake lever (optional). The brake lever is available in two models, brake lever with knob and brake lever with loop. -
Page 25: Leg Support
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.13. Leg support Manual leg rests (optional) are available in the centre-mounted version. The centre-mounted leg support has a full footplate and is adjustable in height, leg support angle t and footplate angle. - Page 26 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings Cross leg support Cross leg supports are removable without tools and can be rotated sideways. The leg supports are adjustable in height (A), angle of leg support (B) and angle of foot plate (C), see Figure 5.27.
-
Page 27: Individual Adaptation
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Configurations and settings 5.14. Individual adaptation devices that have undergone changes outside of the above guidelines must be The device must not be equipped with any verified by Mercado Medic in order for... -
Page 28: Important Safety Information
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Important safety information 6. Important safety information Our website www.mercado.se has information about any safety notices to the market or recalls of devices and accessories. 6.1. Standards met and classification... -
Page 29: Warnings
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Important safety information 6.2. Warnings Warning! As a user, you should Warning! Always make sure that the contact your distributor if device device’s brake is applied when the performance deteriorates or patient sits down and gets up. -
Page 30: Expected Service Life
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Important safety information 6.3. Expected service life Warning! Only tested and approved batteries and chargers from Mercado The expected service life of the device is ten Medic may be used with models years when used in accordance with these with electrical functions. -
Page 31: Reporting Of Adverse Events And Incidents
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Important safety information 6.4. Reporting of adverse events and In order to continue using the product incidents beyond its expected service life, you must make sure that periodic maintenance at... -
Page 32: Technical Information
Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability. - Page 33 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Technical information Device characteristics for all models REAL 8000 REAL 8000 REAL 8000 REAL 8000 PLUS EL 24V PLUS EL 24V PLUS EL 24V PLUS EL 24V Easy low...
-
Page 34: Symbols
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Technical information 7.1. Symbols The following symbols are used on the device controls, markings or in these instructions for use. For an overview of the location of symbols, see Figures 7.1–7.3. - Page 35 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Technical information No. Labelling and instructions for use Permitted altitude 60 °C For indoor use only -25 °C 90 % Maximum user weight Date of manufacture Figure 7.2. Overview of symbols on packaging. Symbols 16–20.
-
Page 36: Servicing & Reconditioning
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning 8. Servicing & reconditioning This section describes the inspection and troubleshooting of the device, information about battery replacement and instructions for reconditioning the device. The troubleshooting guide is aimed at all users of the device, and the section is otherwise aimed at those who handle these parts of the device lifecycle professionally. -
Page 37: Troubleshooting Guide
Servicing & reconditioning 8.1. Troubleshooting guide If none of the following actions address the problem that has occurred, service may be required. Contact your distributor or get in touch with Mercado Medic, see 1.1. Contact details. Troubleshooting for electrical functions Symptom... - Page 38 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning Symptom Cause Action The electrical functions do The internal batteries of the Charge the device, see not work. The indicator shows device are discharged or 2.3. Charging. If charging a low battery level if the defective.
-
Page 39: Battery Replacement
8.2. Battery replacement Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability. -
Page 40: Reconditioning And Periodic Maintenance
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning 8.3. Reconditioning and periodic on all four wheels in the unbraked position, maintenance the device must be withdrawn from service immediately. Check the balance of the base... - Page 41 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning When the battery is disconnected, it must charging outlet and wall socket. Wait at be charged every four months in order to least five seconds before disconnecting retain its functionality, see 2.3.
- Page 42 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning Area Reconditioning instructions Contacts Check that cables and connectors are intact and properly secured. Check that there is no risk of crushing cables and connectors, and that all cables are fastened with cable ties.
- Page 43 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning Area Reconditioning instructions 4 Base Welds Check all welds carefully for signs of cracks, corrosion and movement. Make sure there is good lighting and preferably use a magnifying glass, as small cracks can be difficult to detect on black-painted bases.
- Page 44 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning Area Reconditioning instructions 8 Back rest mechanism Mechanics Check and replace any worn parts, carefully inspect for cracks in welds as they may have been heavily loaded for a long time.
- Page 45 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Servicing & reconditioning Area Reconditioning instructions 11 Final inspection 11.1 Final inspection Test all functions of the device. Check that all settings, electrical functions and brakes are working properly. Check that the castors are working properly and that all four wheels are in contact with the surface.
-
Page 46: Instructions For Destruction
Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Instructions for destruction 9. Instructions for destruction Devices permanently decommissioned must be dismantled and sorted in a correct and safe manner. The website www.mercado.se/en/mercado-document there are installation instructions that can also be used to dismantle the device's components. The components should then be discarded in the relevant manner, see 9.1. - Page 47 Instructions for use for REAL 8000 PLUS Ophthalmology medical clinic chairs Instructions for destruction This page has been deliberately left blank 21-08997-EN-00...
