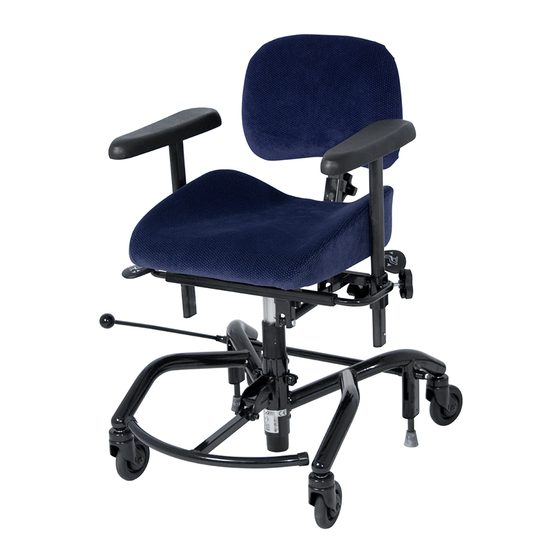

YOUR REAL
9000 PLUS EL 24V
ADULT (REAL 9100 PLUS)
CHILD/MINI (REAL 9400 PLUS)
COXIT (REAL 9800 PLUS)
Sufficient competence to use this product safely is obtained by carefully
reading these instructions for use and care before using the chair.
REAL
9000 PLUS SERIES
®

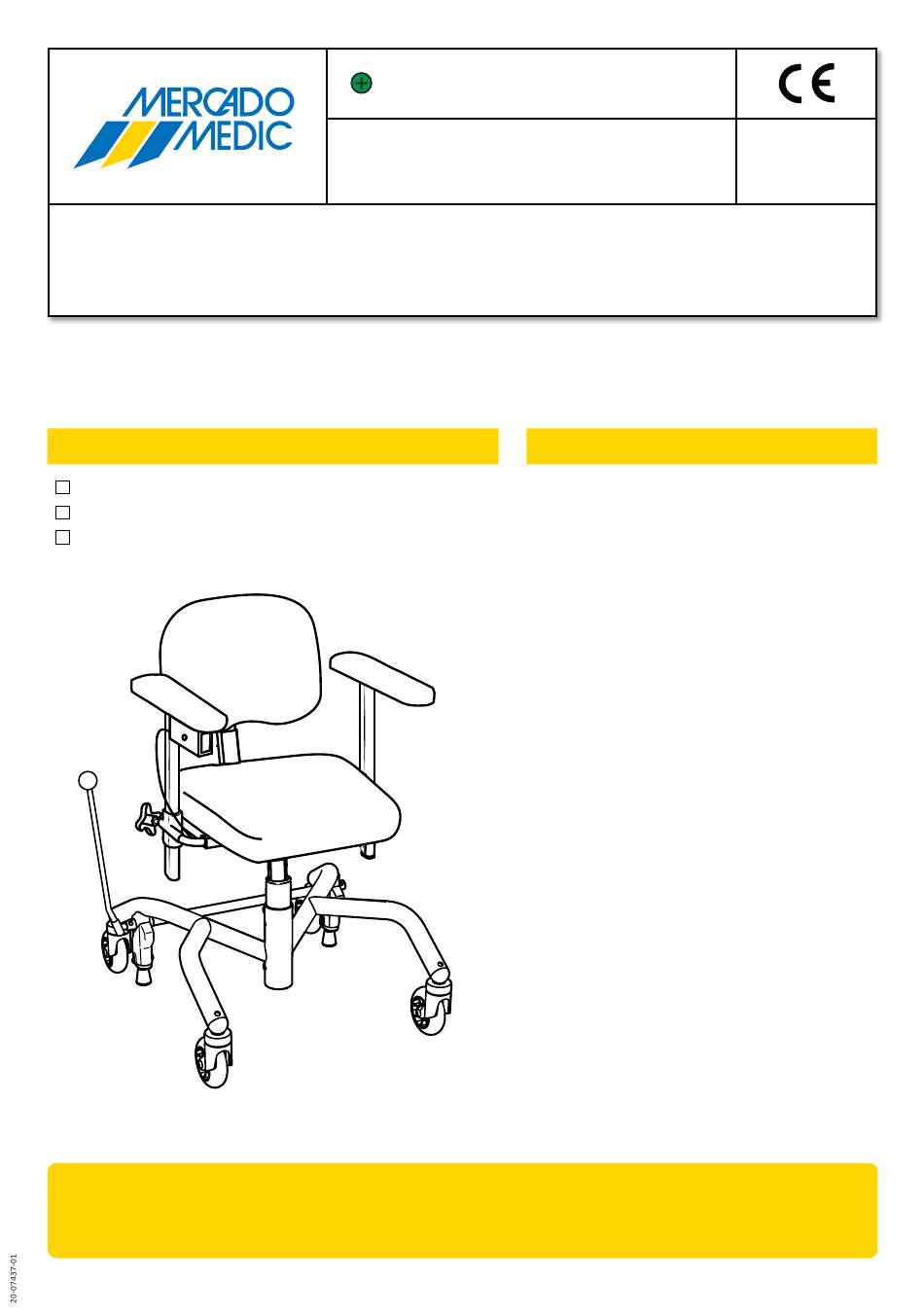

ASSEMBLY INSTRUCTIONS, INSTRUCTIONS FOR USE AND CARE
REAL 9000 PLUS/EL/ADULT/CHILD/MINI/COXIT
TABLE OF CONTENTS
Assembly for use . . . . . . . . . . . . . . . . . . 3
REAL 9000 PLUS . . . . . . . . . . . . . . . . . . . 4
Important safety information . . . . . . . . 4
Cleaning & maintenance . . . . . . . . . . . . 5
Instructions for disposal . . . . . . . . . . . . 5
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 6
User manual . . . . . . . . . . . . . . . . . . . . . . 6
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Seat height. . . . . . . . . . . . . . . . . . . . . . . . 7
Seat tilt (optional) . . . . . . . . . . . . . . . . . . 7
backwards (optional) . . . . . . . . . . . . . . . 8
Backrest mechanism . . . . . . . . . . . . . . . 8
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjustment of Coxit flaps . . . . . . . . . . . 9
Rotation accessory (optional) . . . . . . . . 9
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Created:
170601
Changed: 200609
Doc.no:
20-07437
Revision: 01
Advertisement
Table of Contents
Related Manuals for Mercado Medic REAL 9000 PLUS Series
Summary of Contents for Mercado Medic REAL 9000 PLUS Series
-
Page 1: Table Of Contents
PDF versions of our operating and maintenance instructions with magnification options can be found on the website mercado.se. There you will also find information about accessories that can be mounted on Mercado Medic's chairs as well as any safety messages to the market, prescription support or recalls of products and accessories. -
Page 3: Assembly For Use
ASSEMBLY FOR USE Brake lever Armrest For manual brake, remove the chair from the cardboard Loosen the adjustment knobs for the height (2) and for box. Remove the brake lever that is held in place with the width (3) of the armrest. Set the desired level in plastic wrap along the brake shaft at the back of the height and width. -
Page 4: Familiarise Yourself With Your
• Warning! Do not plug any accessory, other than • Expected service-life ten (10) years. those supplied by Mercado Medic AB, into the control system’s contacts. • REAL 9000 PLUS can be supplemented with a variety of accessories. Only accessories supplied •... -
Page 5: Cleaning & Maintenance
• Electric lifting mechanism • Armrest • Gas pistons • Headrest • Gas springs • Other padded parts sold by Mercado Medic AB • Seat frame • Back recliner Electronic waste: • U-bars and armrest mechanism • Motors • Other metal parts in products sold by Mercado •... -
Page 6: Warranty
If there is a defect within the warranty period you shall The warranty only applies to the original purchase and send a written notice of the defect to Mercado Medic's terminates if you transfer, modify or sell the product. US partner EMP Living, LLC. EMP Living LLC and Mercado... -
Page 7: Seat Height
USER MANUAL SEAT HEIGHT Control There are two types of lifting mechanisms: Gas spring and electric. These are available in two 1. Seat height. Gas spring - pull the lever upwards different seat heights, low and standard. The gas spring 2. -
Page 8: Reverse Seat Tilt Or All Seat Tilt Backwards (Optional)
USER MANUAL REVERSE SEAT TILT OR ALL SEAT TILT BACKWARDS (OPTIONAL) Control 1. Armrests placed here move with the seat tilt. 2. Armrests placed here do not move with the seat tilt. 3. There are 3 positions. When position 3 is selected, the chair must be equipped with base extensions 1. -
Page 9: Adjustment Of Coxit Flaps
Battery charger 2240-24V (part no. 805021) must be used to charge the chair. If using a different charger or different batteries to those which are provided alongside the product by Mercado Medic AB, the warranty and Mercado Medic AB’s product liability will cease to be valid for any cases regarding the battery, charging or other electronic aspects of the chair. - Page 10 If none of the above measures are able to resolve the problem, servicing may be required. Please contact your dealer or get in touch with Mercado Medic AB. You will find our contact details on the last page of this manual.
- Page 12 Dealer in North America EMP Living, LLC. 14941 NE 147 Woodinville, WA 98072 Phone: 425-949-7195 Email: info@empliving.com Web: www.empliving.com [Room for product label with serial number.] Mercado Medic AB Phone +46(0)8 555 143 00 14 Tryffelslingan Email info@mercado.se SE-181 57 Lidingö www.mercado.se...
