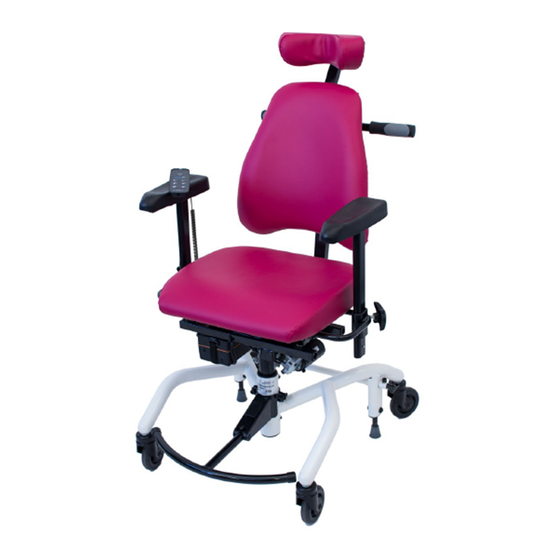

Mercado Medic REAL 8200 PLUS Instructions For Use Manual

Medical clinic chairs
Hide thumbs Also See for REAL 8200 PLUS:
Table of Contents

Advertisement

Quick Links

Download this manual

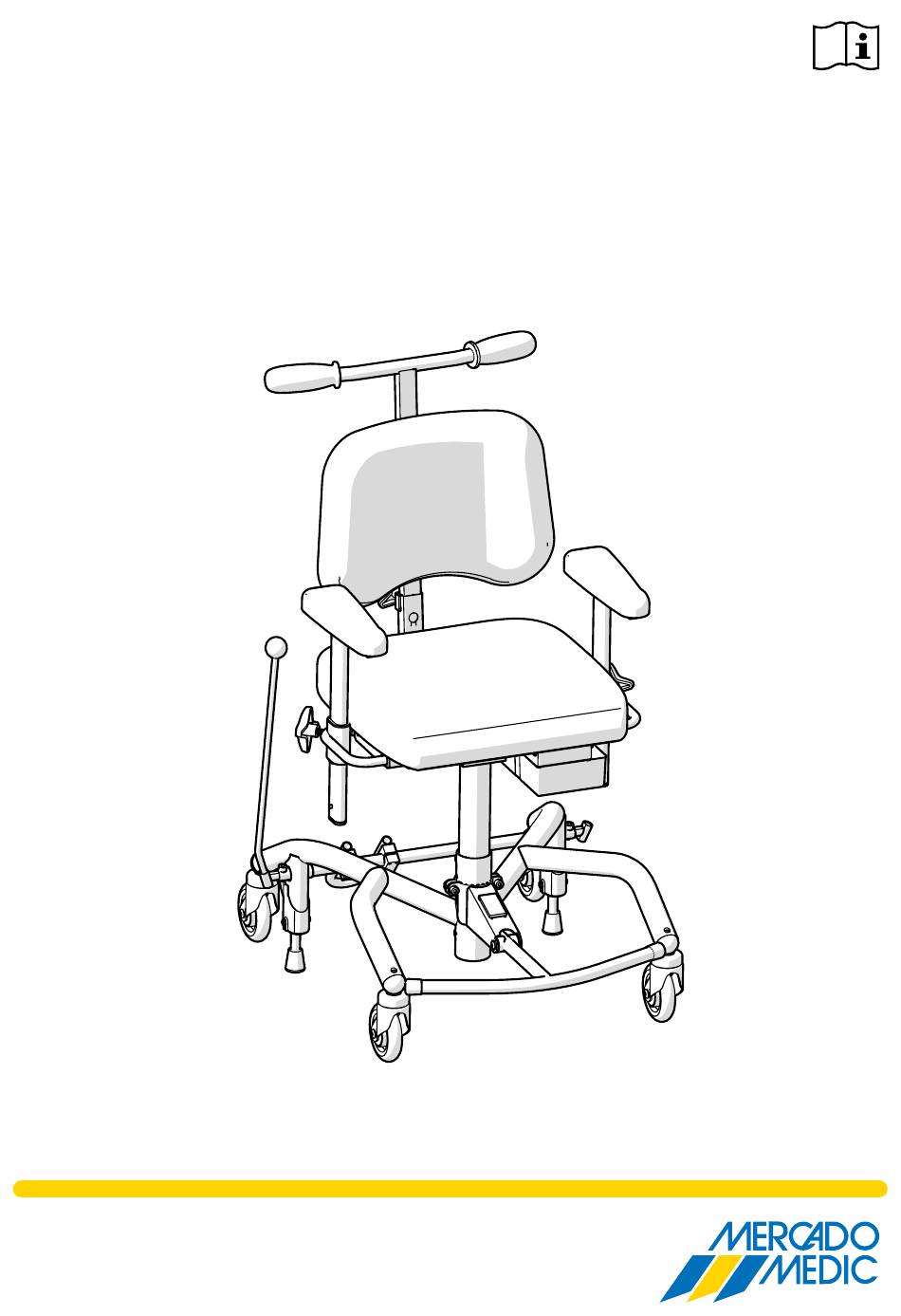

INSTRUCTIONS FOR USE
for REAL 8200 PLUS Mammography
UK
Medical Clinic Chairs
Instructions for use and care
Translation of manual
Document No.: 21-08996-UK
Revision: 00
Valid from: 2021-05-26
Amended: -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REAL 8200 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercado Medic REAL 8200 PLUS

Summary of Contents for Mercado Medic REAL 8200 PLUS

  • Page 1 INSTRUCTIONS FOR USE for REAL 8200 PLUS Mammography Medical Clinic Chairs Instructions for use and care Translation of manual Document No.: 21-08996-UK Revision: 00 Valid from: 2021-05-26 Amended: -...
  • Page 2 [Space for device label with serial number]...

  • Page 3: Table Of Contents

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Table of contents User information 5.9. Neck support ....19 5.10.

  • Page 4: Introduction

    We manufacture all our different medical chairs under our own management in Sweden. Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with applicable labour and environmental legislation.

  • Page 5: Contact Details

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Introduction 1.1. Contact details 1.2. Warranty Manufacturer All components of Mercado Medic's devices Street address: Mercado Medic AB, are covered by warranty, under the time Tryffelslingan 14, SE-181 57 Lidingö, Sweden...

  • Page 6: Getting Started

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Getting started 2. Getting started As the operator of the device, this section is primarily aimed at you. It describes how to prepare the device for use, how to use its functions, and how to charge it. For care instructions, see 3.
  • Page 7 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Getting started Backrest mechanism Neck support Battery Brake lever Armrests Figure 2.1. Preparations before the device is put into use. Consider the following before and during • The device must be operated with care.
  • Page 8 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Getting started • The device must not be moved when the Warning! The device may be seat is in the raised position. equipped with long cables or wires that cannot be secured in •...

  • Page 9: How To Use The Device's Functions

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Getting started 2.2. How to use the device’s functions The device must be charged in a safe manner. The electrical functions cannot be The device has remote-controlled electric used when the device is charging. For this height adjustment, see Figure 2.2.

  • Page 10: Caring For The Device

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Caring for the device 3. Caring for the device Clean the device according to the instructions in this section to maintain its functions and service life. If needs arise that cannot resolved with the resources available, please contact your distributor for reconditioning.

  • Page 11: Transport And Storage

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Caring for the device 3.4. Transport and storage • The device must be transported in the intended cardboard box on a pallet. When transporting and storing the device, If the device is transported by car, it...

  • Page 12: Intended Use

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs intended use 4. intended use The REAL 8000 product range consists 4.1. Operating environment of modular patient seats designed to be • The device is intended for indoor use only used in combination with primary clinical and must not be used outdoors.

  • Page 13: Configurations And Settings

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings 5. Configurations and settings It describes the device's models, options when configuring the device, and information about setting and adjusting the device's functions. For dimensions and performance, see 7. Technical information.

  • Page 14: Basic Design

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings 5.2. Basic design The Device is always supplied with a seat, back rest, armrests, a base with four castors (100 mm as standard), a push bar and foot and hand brake. The device is available in two models, Screening Mammography and Clinical Mammography.

  • Page 15: Electrical Functions

    Configurations and settings 5.3. Electrical functions The product is equipped with electric height adjustment. The REAL 8200 PLUS EL 24V Clinical Mammography model is also equipped with an electric seat tilt and electric back rest mechanism. Electrical functions are adjusted via wireless remote control.

  • Page 16: Seat

    The back rest is available in size 400 x 340 mm for the 43 cm REAL 8200 PLUS EL 24V Screening Mammography model and 420 x 430 mm for the REAL 8200 PLUS EL 24V 46 cm Clinical Mammography model.

  • Page 17: Backrest Mechanism

    The REAL 8200 PLUS EL 24V Screening Mammography model is equipped with fixed back mechanism with a push bar. For the REAL 8200 PLUS EL 24V Clinical Mammography model, adjustment of the back rest mechanism is available as an electrical function, see 5.3. Electrical functions.

  • Page 18: Armrest Mechanism

    5.8. Armrest mechanism Armrest mechanism is available in the PLUS armrest model. On the REAL 8200 PLUS EL 24V Clinical Mammography model, the armrests are mounted to so that they follow the seat when it is tilted, see Figure 5.37.

  • Page 19: Neck Support

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings 5.9. Neck support The REAL 8200 PLUS EL 24V Clinical Mammography model is equipped with an ErgoMedic Plus head rest. ErgoMedic Plus ErgoMedic Plus has a bowled shape and is available in size 230 x 80 mm.

  • Page 20: Base

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings 5.10. Base The device is equipped with a Base 8000 Plus Clinic 48 White. The base is equipped with a foldable foot ring 1/4. 8000 Base PLUS Clinic 48 White The base has two brake legs, and it is reverse braked, see Figure 5.11.
  • Page 21 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings Brake lever The brake lever can be located on the right (A) or left (B) side of the base, see Figure 5.14. Activation and deactivation: 1. Pull the brake lever to the locking position to brake.

  • Page 22: Individual Adaptation

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Configurations and settings 5.12. Individual adaptation devices that have undergone changes outside of the above guidelines must be The device must not be equipped with any verified by Mercado Medic in order for...

  • Page 23: Important Safety Information

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Important safety information 6. Important safety information Our website www.mercado.se has information about any safety notices to the market or recalls of devices and accessories. 6.1. Standards met and classification...

  • Page 24: Warnings

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Important safety information 6.2. Warnings Warning! As a user, you should Warning! Always make sure that the contact your distributor if device device’s brake is applied when the performance deteriorates or patient sits down and gets up.

  • Page 25: Expected Service Life

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Important safety information 6.3. Expected service life Warning! Only tested and approved batteries and chargers from Mercado The expected service life of the device is ten Medic may be used with models years when used in accordance with these with electrical functions.

  • Page 26: Reporting Of Adverse Events

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Important safety information The expected service life of the device After the expected service life, periodic battery is 5 years when the device is charged maintenance at intervals of a maximum of...

  • Page 27: Technical Information

    Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability.
  • Page 28 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Technical information Device characteristics for all electric models Battery 805320 Battery pack 2.6Ah 24V f RCB10+L Battery type Sealed valve-controlled lead acid battery Voltage, battery pack 24V (2 x series coupled 12V batteries) Charger 805289 Battery charger 9000 30V for work chairs 24V 1.5G (UK)

  • Page 29: Symbols

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Technical information 7.1. Symbols The following symbols are used on the device controls, markings or in these instructions for use. For an overview of the location of symbols, see Figures 7.1–7.3.
  • Page 30 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Technical information No. Labelling and instructions for use Permitted altitude 60 °C For indoor use only -25 °C 90 % Maximum user weight Date of manufacture Figure 7.2. Overview of symbols on packaging. Symbols 13–17.

  • Page 31: Servicing & Reconditioning

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning 8. Servicing & reconditioning This section describes the inspection and troubleshooting of the device, information about battery replacement and instructions for reconditioning the device. The troubleshooting guide is aimed at all users of the device, and the section is otherwise aimed at those who handle these parts of the device lifecycle professionally.

  • Page 32: Troubleshooting Guide

    Servicing & reconditioning 8.1. Troubleshooting guide If none of the following actions address the problem that has occurred, service may be required. Contact your distributor or get in touch with Mercado Medic, see 1.1. Contact details. Troubleshooting for electrical functions Symptom...
  • Page 33 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning Troubleshooting mechanical components Symptom Cause Action The seat slips in the direction Gap in the lifting mechanism. Replace the lifting of rotation. mechanism. Noise in the electric lifting Worn bearings.

  • Page 34: Battery Replacement

    8.2. Battery replacement Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability.

  • Page 35: Reconditioning And Periodic Maintenance

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning 8.3. Reconditioning and periodic In case of reduced braking action, check both maintenance the stability of the base and the condition of the brake rubber. If the device is not resting...
  • Page 36 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning must be charged every four months in order charging outlet and wall socket. Wait at to retain its functionality, see 2.3. Charging. least five seconds before disconnecting If these charging instructions are followed, the battery charger.
  • Page 37 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning Area Reconditioning instructions Controls Make sure that the control buttons and remote control are working and have no damage to the casing or cables. Contacts Check that cables and connectors are intact and properly secured.
  • Page 38 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning Area Reconditioning instructions 4 Base Welds Check all welds carefully for signs of cracks, corrosion and movement. Make sure there is good lighting and preferably use a magnifying glass, as small cracks can be difficult to detect on black-painted bases.
  • Page 39 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning Area Reconditioning instructions 8 Back rest mechanism Mechanics Check and replace any worn parts, carefully inspect for cracks in welds as they may have been heavily loaded for a long time.
  • Page 40 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Servicing & reconditioning Area Reconditioning instructions 11 Final inspection 11.1 Final inspection Test all functions of the device. Check that all settings, electrical functions and brakes are working properly. Check that the castors are working properly and that all four wheels are in contact with the surface.

  • Page 41: Instructions For Destruction

    Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Instructions for destruction 9. Instructions for destruction Devices permanently decommissioned must be dismantled and sorted in a correct and safe manner. The website www.mercado.se/en/mercado-document there are installation instructions that can also be used to dismantle the device's components. The components should then be discarded in the relevant manner, see 9.1.
  • Page 42 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Instructions for destruction This page has been deliberately left blank 21-08996-UK-00...
  • Page 43 Instructions for use for REAL 8200 PLUS Mammography Medical Clinic Chairs Instructions for destruction This page has been deliberately left blank 21-08996-UK-00...
