Mercado Medic REAL 8100 User And Care Instructions

Class
REAL 8100 is classified as protection class II, Internal battery. REAL 8100 is classified as protection type B.
REAL 8100 has been EMC tested and proven in accordance with EN 60601-1-1 and EN 60601-1-2, and must therefore be used in
accordance with our User and care instructions.
Mobile telephones or other RF communication equipment can interfere with the REAL 8100.
Max. user weight: 150 kg.)
The chair must be transported in designated boxes on pallets, and must be stored indoors at min. +10ºC.
Only electrical equipment from Mercado Medic AB is permitted for use with the REAL 8100.
Note! The electric functions on the electric chair may only be used a maximum of 10% of the time (max 6 min/h). If this limit is
exceeded the chair can be damaged. This symbol warns of the danger of crushing.
PLEASE NOTE: Only the person seated in the chair is allowed any contact with the chair whilst using electrical functions.

Sitting height

The sitting height is adjusted using a remote control. The remote control is equipped with either
two buttons (the chair only has electric raising/lowering) or eight buttons (in addition to electric
raising/lowering, the chair also has electric seat tilting and electric brake).
To raise the seat - press the left button on the remote control (top row). To lower the seat – press
the right button on the remote control (top row). NB! If the remote control has more than two
buttons (eight buttons with additional electric functions), the raising/lowering functions are
located in the second top row.

Seat tilting

Seat tilt adjustment is available in two models: crank or
electrically regulated. For the crank regulated seat, the angle is
adjusted using the knob (1).
The tilt increments (+15˚/-8˚) can be fixed using the nuts
(2). Electric tilt adjustment can be regulated using the remote
control. Press the left button (3) to incline the seat forwards,
and the right button (7) to incline the seat backwards.

Brake

The brake is regulated using the foot pedal, the handbrake lever or electrically (via the remote
control). To lock: Press the foot pedal (1) located to the left of the brake shaft, until the brake foot
touches the floor and has locked.
To brake the chair using the handbrake lever – move this backwards until the brake foot touches
the floor and is locked. The handbrake lever may be positioned on either side of the chair. If the
chair has an electric brake - press the lowest button on the left of the remote control (4) to brake
or to release the brake.
Attention! The brake must always be locked when sitting down and standing up from the chair.
The brake must be checked regularly. If worn, replace the rubber brake feet (2). The brake function
may be less effective on uneven surfaces.
To correctly calibrate the chair with respect to the investigative equipment, place the brake leg in
the pre-installed positioning cups in the clinic floor.

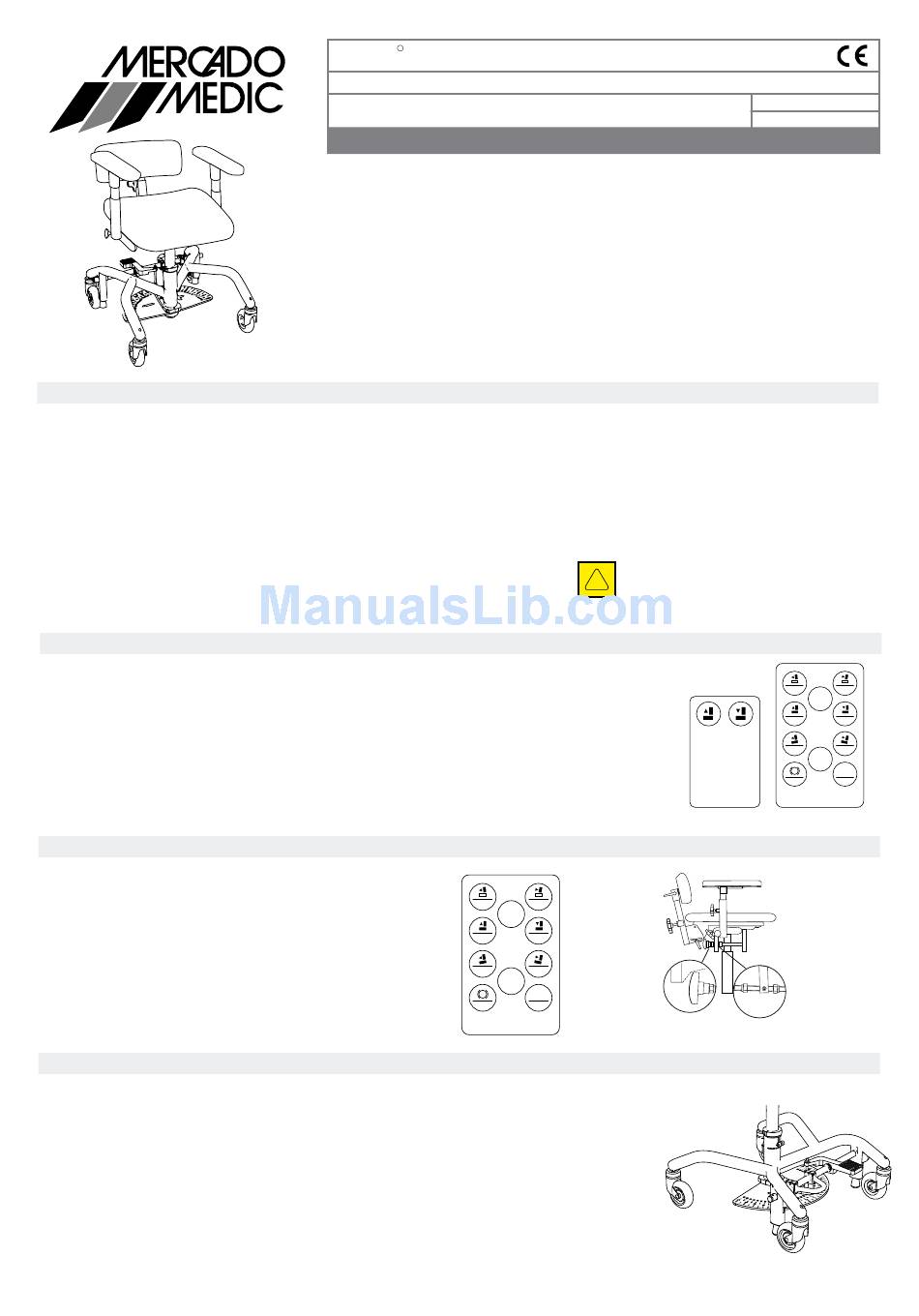

REAL 8100
r
Chair with electric function, for X-ray
USER and CARE INSTRUCTIONS
The REAL chair has replaceable components, accessories, and functions with
setting options which allow individual adjustment. The chair must only be used
by the person and the purpose for which it is intended. The chair is designed for
indoor use and must not be exposed to water, other liquids or chemicals. The
chair must not be exposed to intensive sunlight for any length of time. The chair
must not be fitted with accessories or components other than those approved
by Mercado Medic AB Repair and other technical actions must only be carried
out by personnel authorised by Mercado Medic AB. Read this user instruction
carefully before using the chair.
!
!
1
2
3
4
!
!
1 5
2 6
3 7
4 8
remote control units
5
6
7
8
1
Crank regulated
Article No:
April 2008
1 5
2 6
3 7
4 8
2
2
1
2
