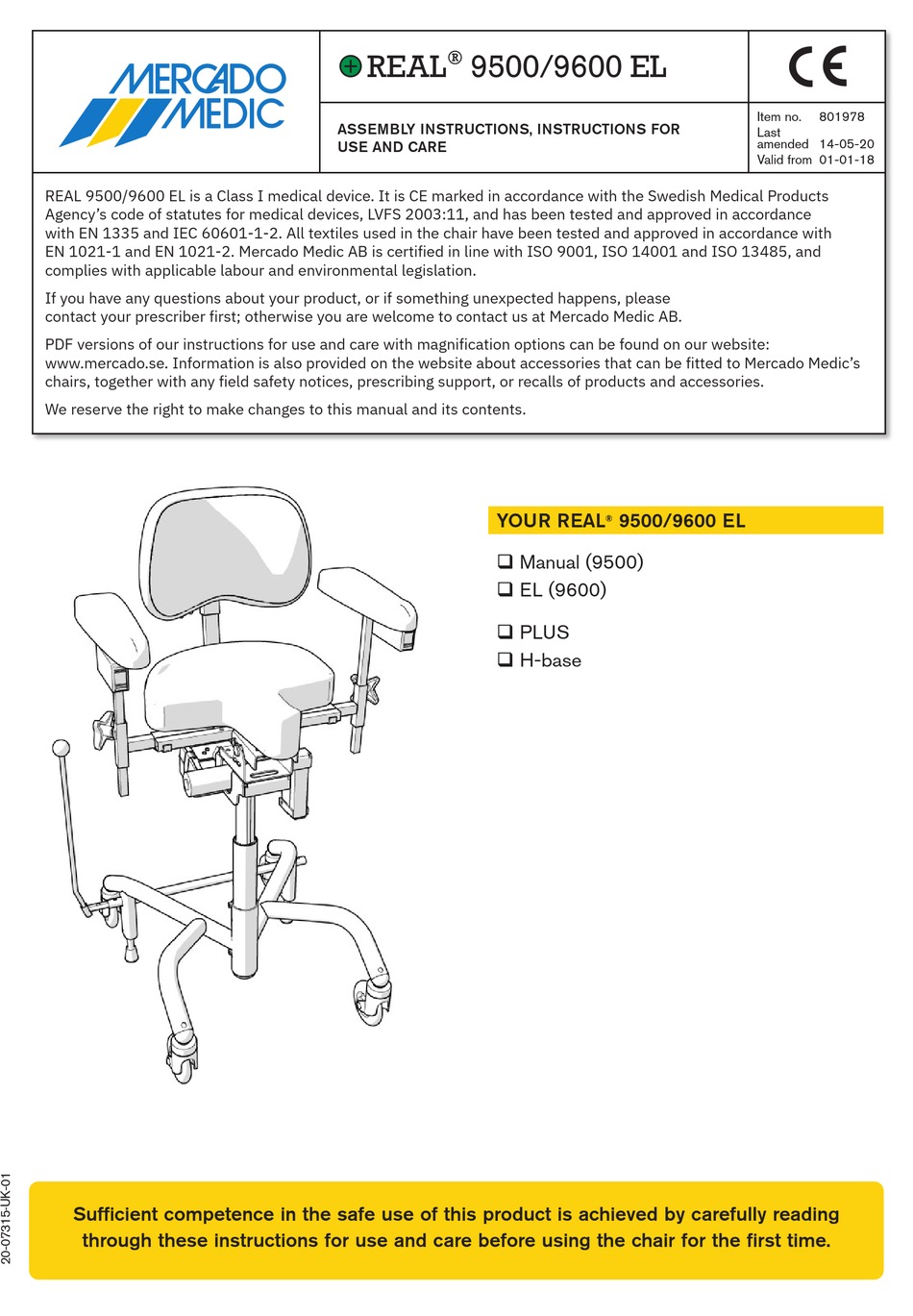

REAL 9500/9600 EL is a Class I medical device. It is CE marked in accordance with the Swedish Medical Products
Agency's code of statutes for medical devices, LVFS 2003:11, and has been tested and approved in accordance
with EN 1335 and IEC 60601-1-2. All textiles used in the chair have been tested and approved in accordance with
EN 1021-1 and EN 1021-2. Mercado Medic AB is certified in line with ISO 9001, ISO 14001 and ISO 13485, and
complies with applicable labour and environmental legislation.
If you have any questions about your product, or if something unexpected happens, please
contact your prescriber first; otherwise you are welcome to contact us at Mercado Medic AB.
PDF versions of our instructions for use and care with magnification options can be found on our website:
www.mercado.se. Information is also provided on the website about accessories that can be fitted to Mercado Medic's
chairs, together with any field safety notices, prescribing support, or recalls of products and accessories.
We reserve the right to make changes to this manual and its contents.
Sufficient competence in the safe use of this product is achieved by carefully reading
through these instructions for use and care before using the chair for the first time.
®
REAL
9500/9600 EL
ASSEMBLY INSTRUCTIONS, INSTRUCTIONS FOR
USE AND CARE
YOUR REAL
 Manual (9500)
 EL (9600)
 PLUS
 H-base
Item no.
Last
amended 14-05-20
Valid from 01-01-18
9500/9600 EL
®
801978

Advertisement

loading
Need help?

Need help?

Do you have a question about the REAL 9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercado Medic REAL 9500

Summary of Contents for Mercado Medic REAL 9500

  • Page 1 Valid from 01-01-18 REAL 9500/9600 EL is a Class I medical device. It is CE marked in accordance with the Swedish Medical Products Agency’s code of statutes for medical devices, LVFS 2003:11, and has been tested and approved in accordance with EN 1335 and IEC 60601-1-2.

  • Page 3: Table Of Contents

    YOUR REAL 9500/9600 EL ........

  • Page 4: Your Real 9500/9600 El

    Mercado Medic AB recommends that such equipment not be stored any closer than 3.3 m from the chair. • REAL 9500/9600 EL has an electric lifting mechanism that can lift the patient so high that, in the worst case, there is a risk of falling.

  • Page 5: User Manual

    SEAT HEIGHT/LIFTING MECHANISMS The height of REAL 9500 is adjusted manually using the lever (1) under one side of the armrest (standard right). Lift the lever to adjust the height. On the REAL 9600 EL, the seat height is adjusted using the rocker switch (2).
  • Page 6 BRAKE The handbrake is controlled using lever (1). To apply: move the lever backwards. The brake lever can be fitted to either side of the chair. Chairs equipped with H-bases can also be braked using the foot (2). NOTE! The brake on the chair must always be applied when getting in and out of the chair. The brake must be checked on a regular basis.
  • Page 7 We recommend that battery charger REAL 9000 Type 2240-12 V (item no. 802289) be used to charge the chair. If you wish to use another battery charger, please contact Mercado Medic AB for written approval. The battery should be charged regularly; once a day if possible. It is important that the battery is never completely discharged, as this helps prolong the life of the battery.

  • Page 8: Individual Adaptation

    Mercado Medic AB for written approval. Parts to be evaluated must be physically sent to Mercado Medic AB, either by the customer or the supplier of the part in question. Mercado Medic AB will then contact the supplier of the part in question; if any combination agreement is relevant, Mercado Medic AB will perform a risk analysis on the part.

  • Page 9: Service/Reconditioning List

    - If a Product that is more than 10 years old is to continue to be used in a safe manner, it must be fully refurbished. Full refurbishment must be carried out by authorised service personnel from Mercado Medic AB, or by reconditioning/service personnel at the Principal/Customer authorised by Mercado Medic AB.
  • Page 10 RECONDITIONING, CONT. 2.2. Rotation lock/lubrication … 6.3. Plastic plugs/guide bushings 8. Armrests Make sure that guide bushings and Check that there is no play in … 8.1. Function/wear plastic plugs are properly secured, the electric lifting mechanism in Check and replace any worn and replace worn or damaged the direction of rotation.
  • Page 12 Fax: +46 (0)8-555 143 99 Mobile: +46 (0)70-550 63 98, +46 (0)70-894 63 68 E-mail: info@mercado.se E-mail: service@mercado.se [Space for product label with serial number.] Mercado Medic AB Telephone & Fax E-mail & Internet Tryffelslingan 14 Tel. +46 (0)8-555 143 00 E-mail info@mercado.se SE-181 57 Lidingö...
