3.1 SPECIFICATIONS

MODEL
Waterway Size
Max Pressure
Min Pressure
Opening/Closing Speed
Voltage - Auto Sense
Motor Current
(RC Only)
Recommended Fuse or Circuit Breaker Size
Temperature Rating*
*For temperatures below 32°F(0°C), valves must be drained after use to avoid damage. See section 2.0 SAFETY.
Environmental Rating

3.2 CORROSION

Hose couplings are attached using polymer bearing rings which provides electrical insulation to help prevent galvanic corrosion. The
parts are then hard anodized, and fi nally powder coated, inside and out, to help prevent corrosion. The effects of corrosion can be
minimized by good maintenance practice. See section 10.0 for maintenance.

3.3 USE WITH SALT WATER

Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service life of the valve
may be shortened due to the effects of corrosion and is not covered under warranty.

4.0 INSTALLATION

4.1 MOUNTING ON TRUCK

Screw the large coupling to the pump inlet manifold. The valve position indicator should be clearly visible, but need not be level.

4.2 ENCLOSURE MOUNTING

Select proper location for display. A full size template is shown in section 12.0.
4.3 ELECTRIC INSTALLATION AND WIRING

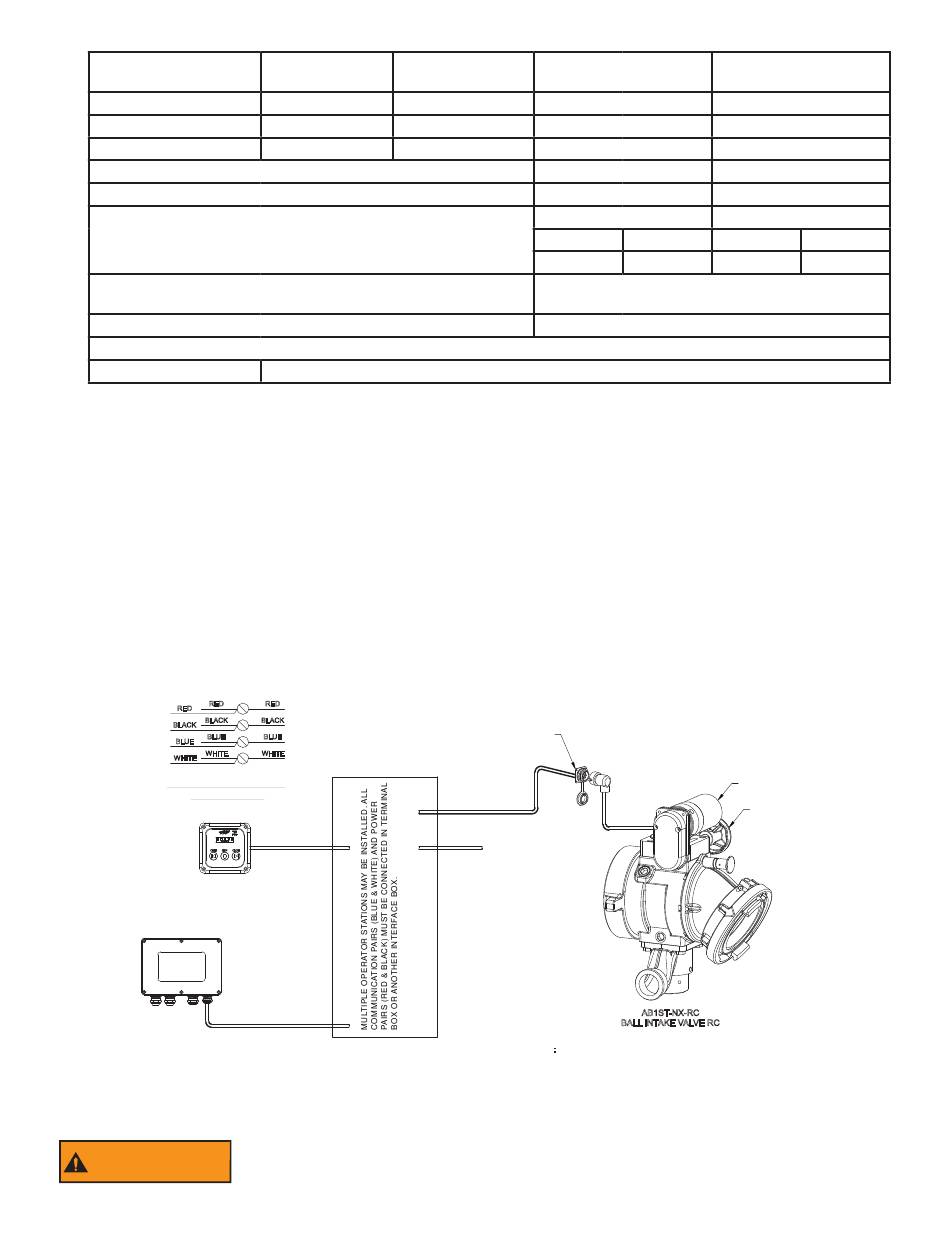

Red (+) and black (-) wires must be connected to a 12 or 24 VDC protected circuit from the truck's power distribution center. Figure
4.3 shows the control connections.
RED
RED
BLACK
BLACK
BLUE
BLUE
WHITE
WHITE
TYPICAL TERMINAL BOX
CONNECTIONS
BIV OPERATOR
STATION
INTERFACE BOX
(OPTIONAL)
NOTE:
CABLE IS GEL FILLED TO PREVENT MOISTURE WICKING INTO
ENCLOSURE. GEL IS NON-HAZARDOUS AND SHOULD BE
WIPED OFF CONDUCTORS WITH RAG.
The electric motor and other components are ignition sources. The electric BIV should be operated only
WARNING
in areas where there is adequate ventilation and no hazard of fl ammable vapor buildup.
©Copyright Task Force Tips, Inc. 2002 - 2011
BALL INTAKE JUMBO INTAKE
VALVE VALVE
3.65" (93mm) 5.25" (133mm)
300 psi (20 bar) 250 psi (17 bar)
Full Vacuum Full Vacuum
All components designed to meet minimum rating of NEMA 4 (IP65)
RED
BLACK
BLUE
INSTALLER SUPPLIED
WHITE
TERMINAL BOX OR OPTIONAL
INTERFACE BOX CAN BE USED
BALL INTAKE VALVE
RC
3.65" (93mm)
300 psi (20 bar)
Full Vacuum
6 sec
12 or 24volt DC
Nominal
@ 12 VDC
3 amp
-25°F to 135°F (-32°C to 57°C)
RECEPTACLE
PLUG
DUST CAP
30 FT (9M) MAXIMUM
INSTALLER
SUPPLIED
POWER CABLE
BALL INTAKE VALVE RC
NOTE:
TO AVOID EXCESSIVE VOLTAGE DROP AT VALVE MOTOR, DO NOT
LENGTHEN FACTORY SUPPLIED RECEPTACLE CABLE. POWER CABLE
SELECTION IS CRITICAL. VOLTAGE SUPPLIED TO VALVE MOTOR BOARD
SHOULD NOT FALL BELOW 10 VOLTS WHEN VALVE IS IN OPERATION.
Figure 4.3
5
JUMBO INTAKE VALVE
RC
5.25" (133mm)
250 psi (17 bar)
Full Vacuum
6 sec
12 or 24volt DC
Limit
@ 24 VDC @ 12 VDC @ 24 VDC
1.5 amp 12 amp
15 amp@12 Volt
7.5 amp @ 24 Volt
BALL INTAKE VALVE
ELECTRIC MOTOR
MANUAL OVERRIDE
HANDWHEEL
AB1ST-NX-RC
LIA-200 July 30, 2011 Rev13
6 amp
