Front Max Series Combination Nozzle; Mechanical Specifications - Task Force Tips Max Flip Tip2 Manual

2.6 FRONT MAX SERIES COMBINATION NOZZLE

The Flip Tip2 with Max Series combination nozzle allows selection between a smooth bore and a fog nozzle. See the Max-Force
owners manual LIM-025 for details.
CAUTION

2.7 MECHANICAL SPECIFICATIONS

Maximum nozzle inlet pressure with valve shutoff *
Operating temperature range of fl uid
Storage temperature range
Materials used
*Consult Factory for higher pressure applications
©Copyright Task Force Tips, Inc. 2014

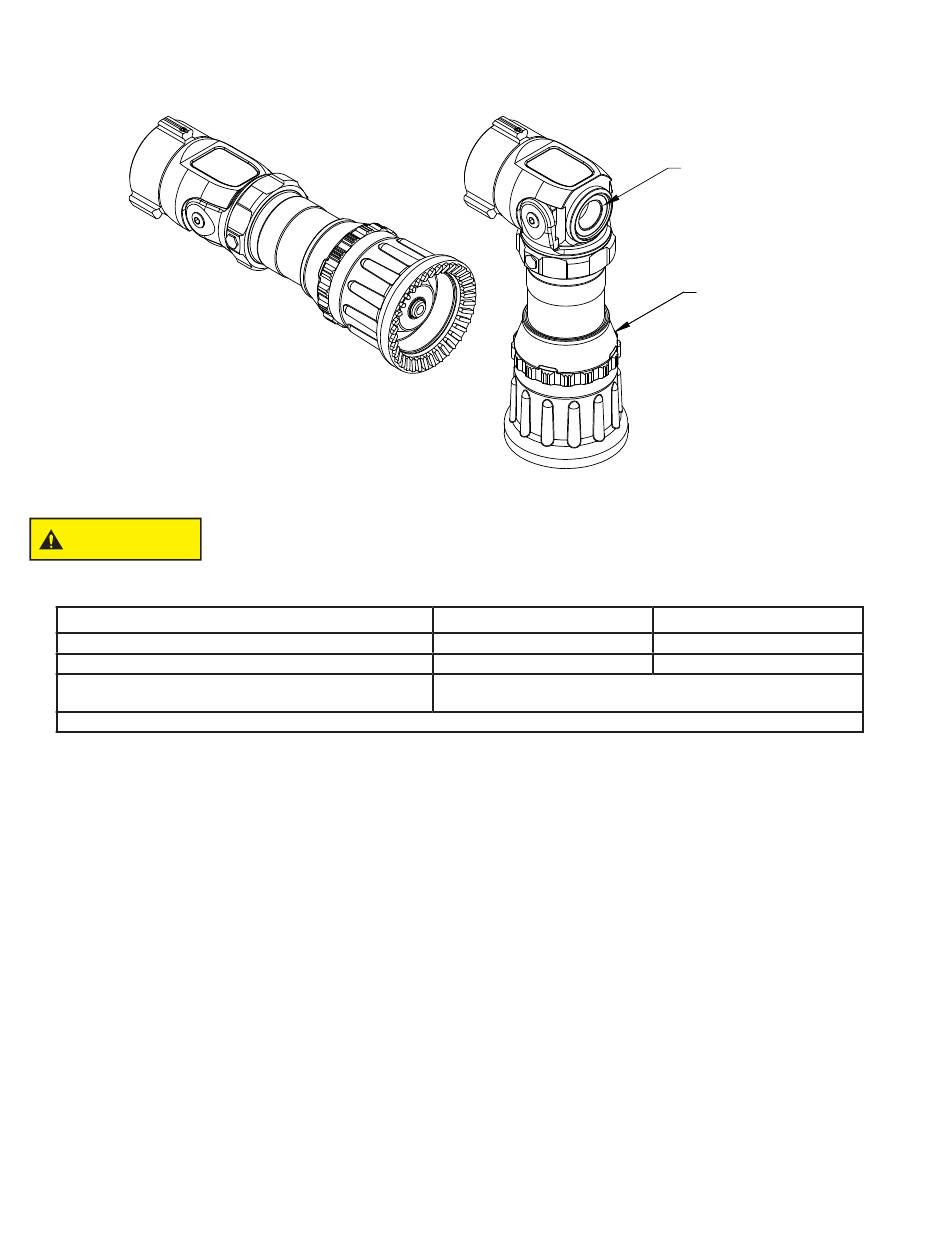

Figure 2.6 Front Max Series Combination Nozzle
The lock for the front nozzle is not designed to withstand the full force of the nozzle reaction.
Injury from inadvertent unlocking may result. Do not use the front nozzle in the down position
as a handle to restrain the nozzle reaction.
300 psi
33 to 120º F
-40 to 150º F
Aluminum 6000 series hard anodized MIL8625 class 3 type 2,
stainless steel 300 series, nylon 6-6, nitrile rubber
6
Rear
Smooth Bore
Insert
Max Series
Combination
Nozzle
20 bar
1 to 50º C
-40 to 65º C
LIN-065 February 11, 2014 Rev00
