GENERAL INFORMATION

The Task Force Tips FlipTip nozzles are designed to provide excellent performance under most fire fighting conditions. Their rugged
construction is compatible with the use of fresh water as well as fire fighting foam solutions.
3.1

VARIOUS MODELS AND TERMS

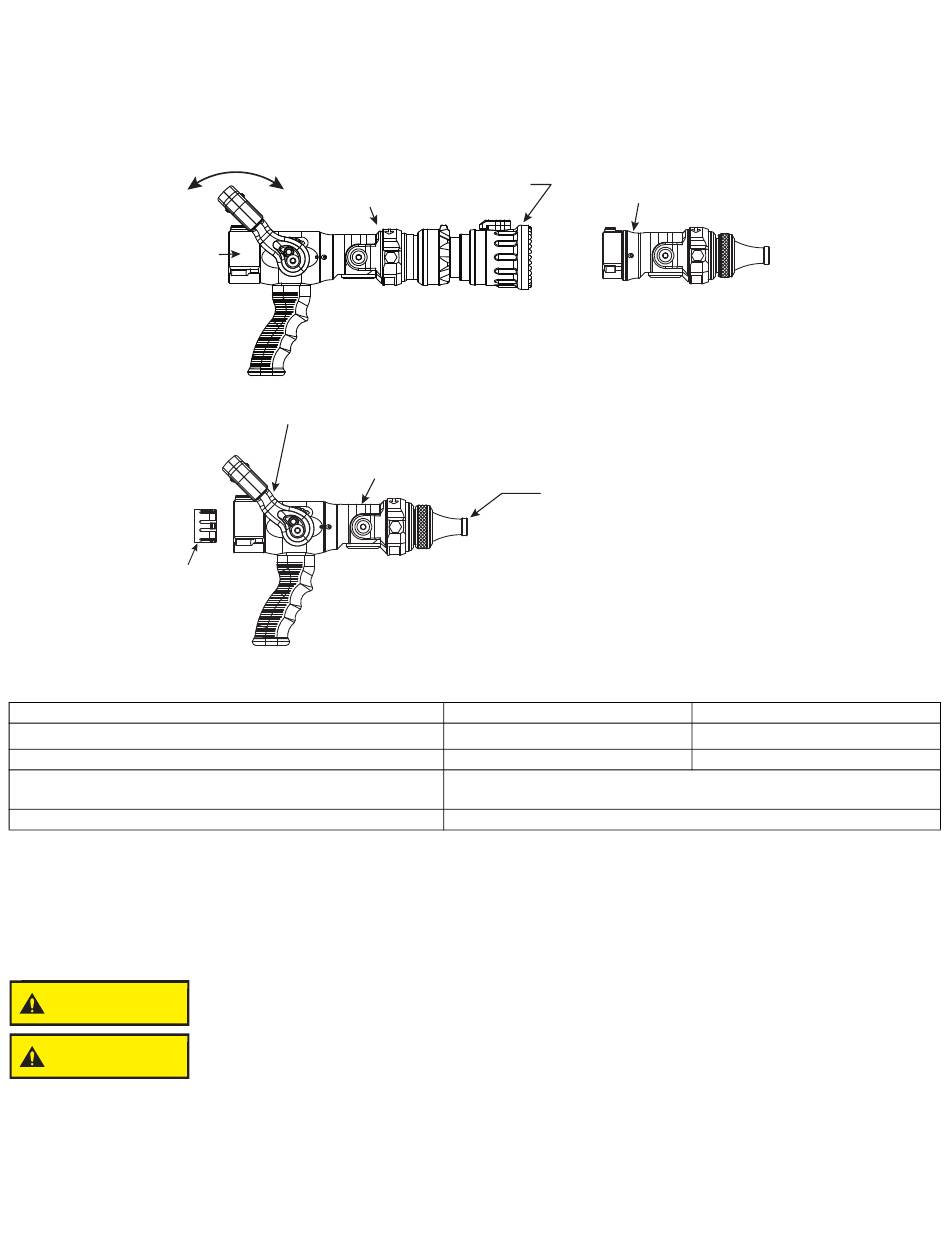

The TFT FlipTip nozzle is available in several configurations. The FlipTip nozzle is available with or without a pistol grip. Various models
are shown below.
ON
Coupling
Pistol Grip
Removeable
Stream Straightener*
3.2

SPECIFICATIONS

Maximum operating pressure (with valve shut off)*
Operating temperature range of fluid
Storage temperature range
Materials used
*Consult factory for higher pressure applications
3.3

USE WITH SALT WATER

Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of the
equipment may be shortened due to the effects of corrosion, and is not covered under warranty.
3.4

NOZZLE COUPLINGS

NH (National Hose Threads) threads are standard on all nozzles. Other threads such as NPSH (National Pipe Straight Hose) may be
specified at time of order.
CAUTION
CAUTION
