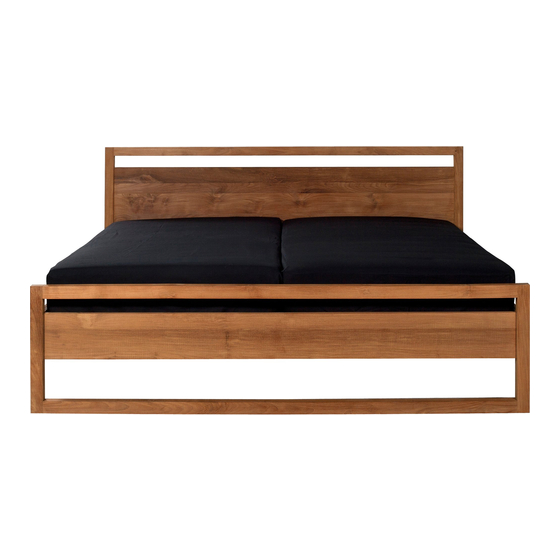

- Page 1 ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION TEAK LIGHT FRAME BED CODE DESCRIPTION 11130 TEAK LIGHT FRAME BED - EU QUEEN SIZE – WITHOUT SLATS 160/200/95 TEAK LIGHT FRAME BED - EU KING SIZE – WITHOUT SLATS 180/200/95 11131...
- Page 2 CHECK PACKAGE CONTENTS TO ASSURE ALL THE NECESSARY HARDWARE AND PARTS ARE RECEIVED UNDAMAGE. DO NOT USE DAMAGED OR DEFECTIVE PARTS/ HARDWARE. CONTACT ETHNICRAFT FOR ANY MISSING PART AND OR HARDWARE. READ THE ASSEMBLY INSTRUCTION BEFORE INSTALLATION AND CAREFULLY FOLLOW THE...
- Page 3 TEAK LIGHT FRAME BED ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION HARDWARE ENCLOSED H0667 H0666 H0308 H0949 HALFMOON WASHER HALFMOON BOLT DOWEL JCBC SCREW Ø 12x50 M6x6 (4pcs) (4pcs) (8pcs) (8pcs) H0951 H0757 H0744 H0746 L BRACKET JF SCREW WASHER M6x50 (8pcs) (5pcs) (4pcs) (4pcs)
- Page 4 TEAK LIGHT FRAME BED ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION CONNECTING SIDERAIL AND HEAD / FOOTBOARD TIGHTEN FULLY CONNECTING CENTER TO CENTER SUPPORT TIGHTEN FULLY...
- Page 5 TEAK LIGHT FRAME BED ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION INSTALLING CENTER SUPPORT TO ADJUST HEIGHT TIGHTEN FULLY ALL SCREWS INSTALLING L BRACKET TO SIDE RAILS - TIGHTEN FULLY ALL SCREWS - INSTALLING L BRACKET AT THE SAME LEVEL WITH CENTER SUPPORT...
