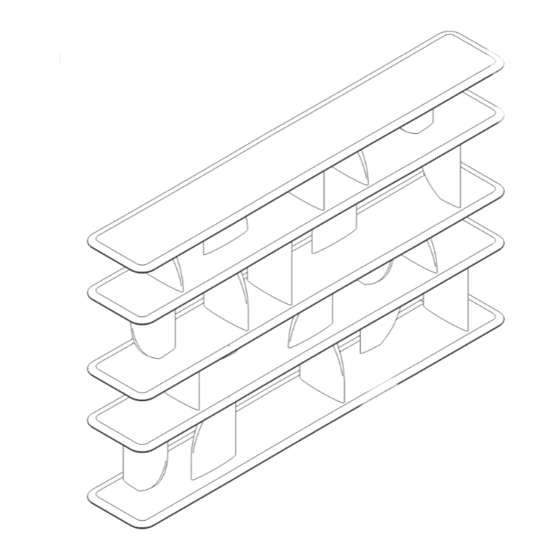

10496 GEOMETRIC RACK - VARNISHED TEAK - BROWN
ASSEMBLY INSTRUCTION FOR
HARDWARE ENCLOSED
(2X)
(2X)
BELT
SCREW
ANTI-TIPPING
M4x20mm
(2X)
(2X)
WALL PLUG
WALL SCREW
S8x40mm
M4x50mm
AS WALL MATERIALS VARY,
THE SCREWS INCLUDED ARE FOR BRICK WALL.
FOR ADVICE ON SUITABLE SCREW SYSTEMS,
CONTACT YOUR LOCAL SPECIALISED DEALER.
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
USE HAND
S
ANTI-TIPPING
(2X)
WASHER
M5
USE SCREWDRIVER
TO TIGHTEN
USE DRILL
USE PENCIL
INSTALLATION
TOOLS REQUIRED
SCREW DRIVER
(not included in package)
POWER DRILL
(not included in package)
NOTICE
1 / 2
PENCIL
(not included in package)
X2
Advertisement
Table of Contents
Related Manuals for Ethnicraft 10496
Summary of Contents for Ethnicraft 10496
- Page 1 1 / 2 10496 GEOMETRIC RACK - VARNISHED TEAK - BROWN ASSEMBLY INSTRUCTION FOR ANTI-TIPPING INSTALLATION HARDWARE ENCLOSED TOOLS REQUIRED (2X) (2X) (2X) SCREW DRIVER POWER DRILL PENCIL BELT SCREW WASHER (not included in package) (not included in package) (not included in package)
- Page 2 2 / 2 10496 GEOMETRIC RACK - VARNISHED TEAK - BROWN ASSEMBLY INSTRUCTION FOR ANTI-TIPPING INSTALLATION INSTALLING ANTI-TIPPING TO THE RACK VIEW FROM UNDER THE RACK - USE POWER DRILL TO CAREFULLY DRILL A HOLE IN THE BACK OF THE RACK...
