Ethnicraft Teak Bok Assembly Instructions

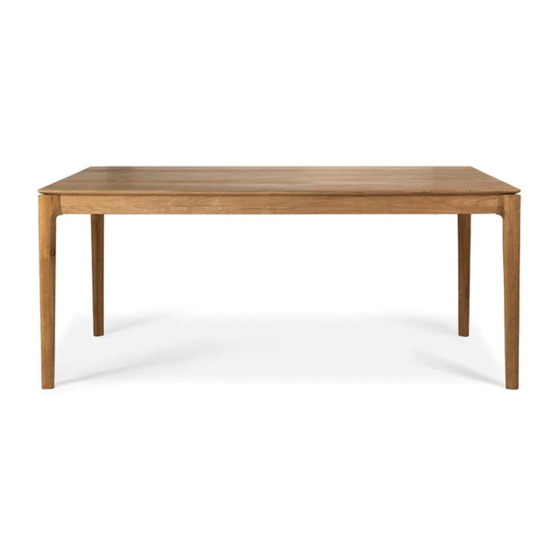

TEAK BOK EXTENDABLE DINING TABLE
ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
JCBC SCREW SPAX SCREW
(6 pcs) (4 pcs)
M6x50 M6 x100
WASHER WASHER
(8 pcs) (6 pcs)
M6x18 M8x23

IN YOUR PACKAGE :

ASSEMBLY INSTRUCTION
HARDWARE ( AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TOP PANEL 1pc
2. LEGS 2pcs
3. LEG 1set

RECOMMENDATION :

In order to avoid colour differences between
the fixed table top and the extensions due to
UV light, we suggest to put your dining table in
extended version during the first month.
SYMBOLS
DIRECTION NUMBER OF
PERSON NEEDED
USE USE L KEY
SCREWDRIVER TO TIGHTEN
SPAX SCREW
(4 pcs)
M6x120
2
USE HAND
USE TORX ALLEN
SCREW TO TIGHTEN
TOOLS
L KEY
(included in package)
2
1
NOTICE
N
C TIO
ST RU
LY IN
MB
A SE S
X
WHEN LIFTING THE TABLE : WHEN LIFTING THE TABLE :
- LIFT ONLY ON THE APRON - LIFT ONLY ON THE APRON
- MAKE SURE TABLE IS IN UNEXTENDED POSITION - MAKE SURE TABLE IS IN UNEXTENDED POSITION
TORX ALLEN
SCREW SCREWDRIVER
(included in package) (not included in package) (not included in package)
3
X
1/5
SCISSORS
X2
