REVIVE BED - WITHOUT SLATS

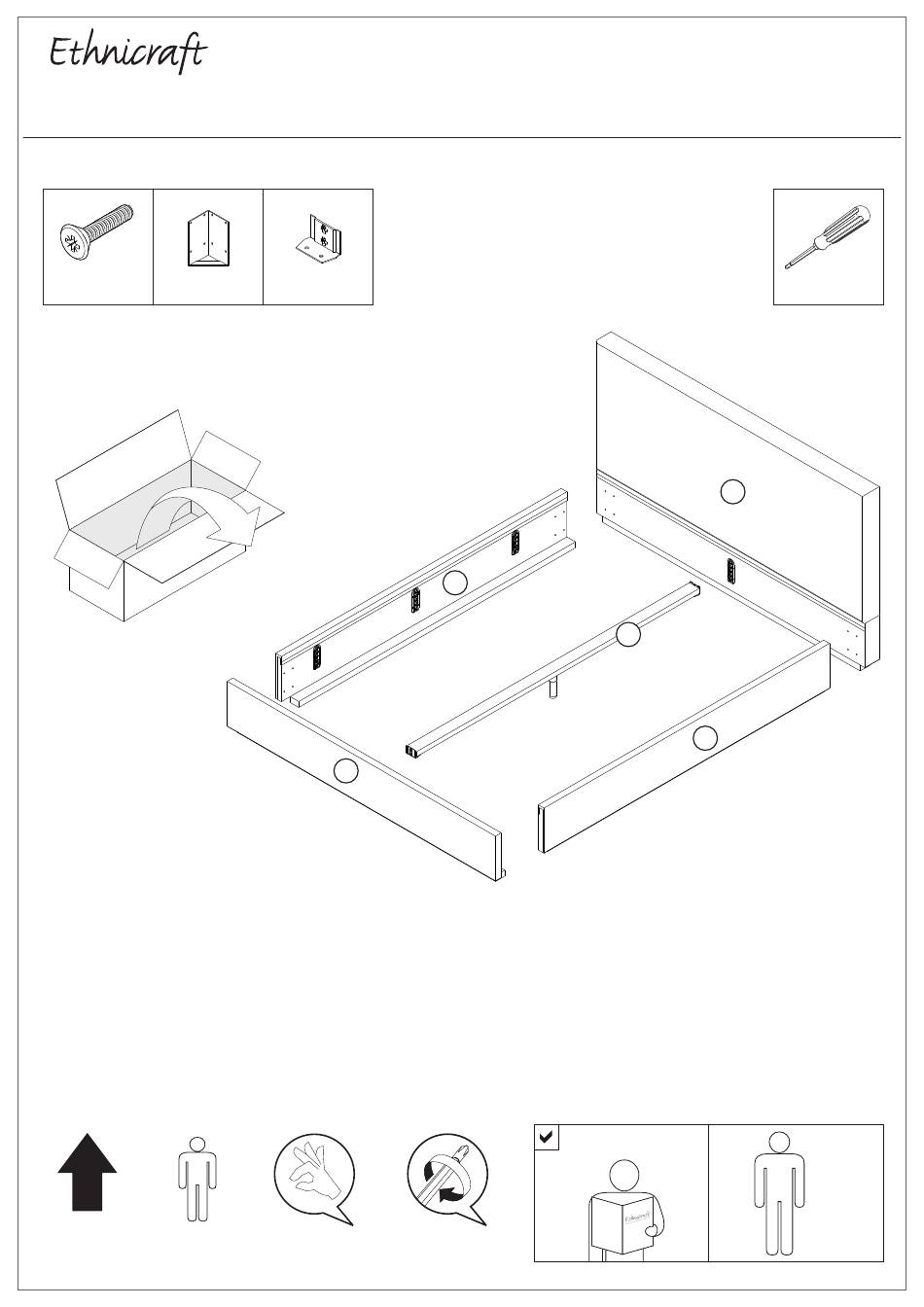

ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION
HARDWARE ENCLOSED
SCREW
M6x25
METAL BRACKET
(32pcs)
(4pcs)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. HEADBOARD (1 pc)
2. SIDERAIL (2 pcs)
3. FOOTBOARD (1 pc)
4. MIDDLE SUPPORT (1 pc)
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
L BRACKET
(4pcs)
2
3
USE HAND
USE SCREWDRIVER
TO TIGHTEN
( L )
( L )
4
NOTICE
C TIO
ST RU
LY IN
MB
S
SE
A
TOOL REQUIRED
SCREWDRIVER
(Not include in package)
1
( R )
( R )
2
X2
N
1 / 4
