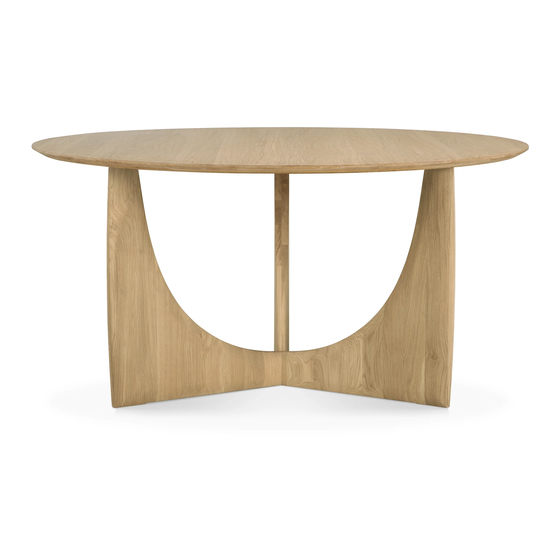

10513 GEOMETRIC DINING TABLE - VARNISHED TEAK - ROUND
ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
METAL PLATE
METAL SUPPORT
3pcs
SCREW
M6x40mm
6pcs
IN YOUR PACKAGE :

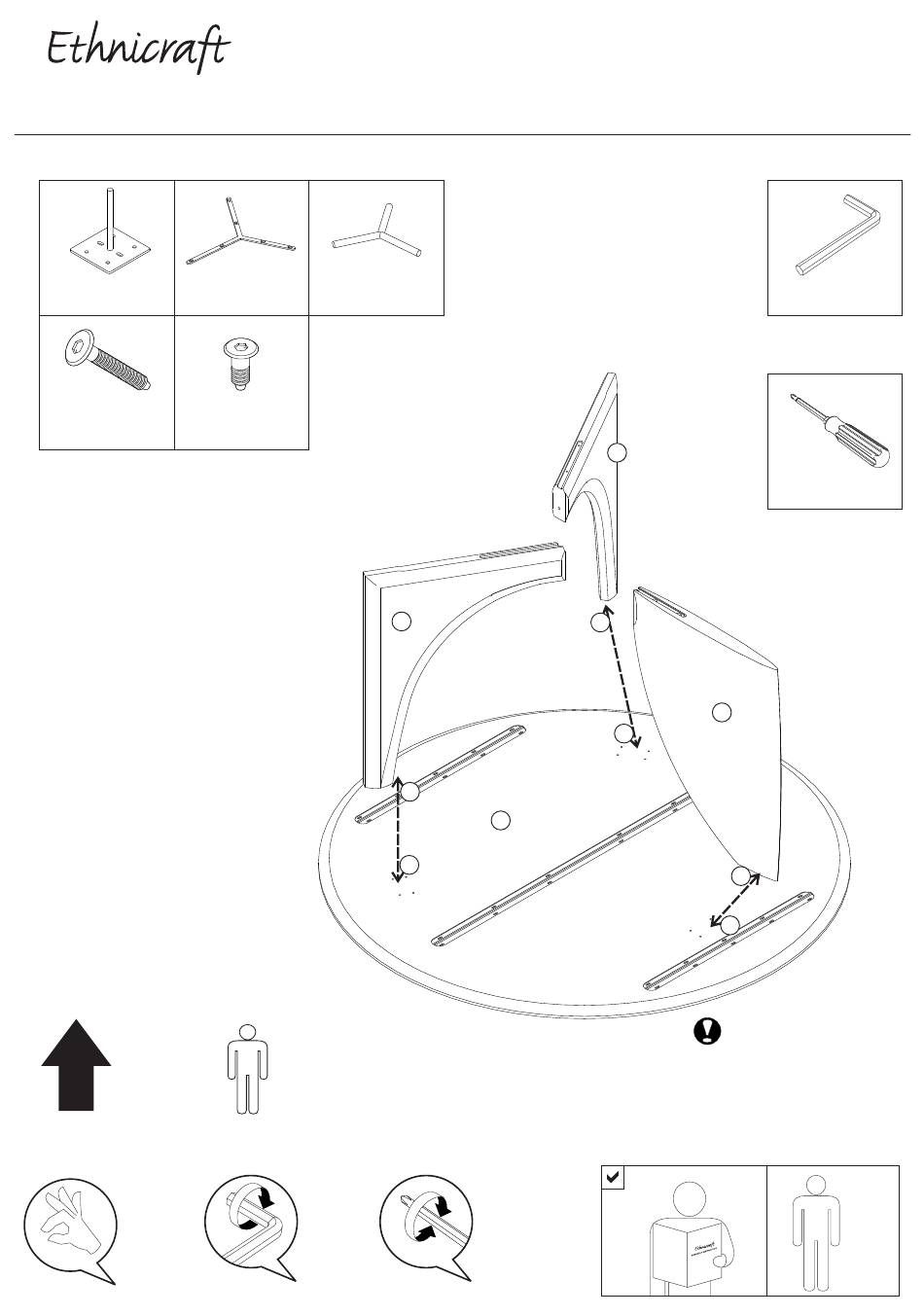

ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS
:
A. TABLE TOP
B. LEG PIECE 1
C. LEG PIECE 2
D. LEG PIECE 3
SYMBOLS
DIRECTION
PERSONS NEEDED
USE HAND
METAL CONNECTOR
1pc
1pc
SCREW
M6x20mm
18pcs
NUMBER OF
USE ALLEN KEY
USE SCREWDRIVER
TO TIGHTEN
C
1
A
1
TO ADJUST
TOOL ENCLOSED
TOOL REQUIRED
D
2
B
2
3
3
LEGS ARE SPECIFIC
NOTICE
1/3
ALLEN KEY
SCREWDRIVER
X3
Advertisement
Related Manuals for Ethnicraft 10513
Summary of Contents for Ethnicraft 10513
- Page 1 10513 GEOMETRIC DINING TABLE - VARNISHED TEAK - ROUND ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION HARDWARE ENCLOSED TOOL ENCLOSED METAL PLATE METAL SUPPORT METAL CONNECTOR ALLEN KEY 3pcs TOOL REQUIRED SCREW SCREW M6x40mm M6x20mm 6pcs 18pcs SCREWDRIVER IN YOUR PACKAGE :...
- Page 2 10513 GEOMETRIC DINING TABLE - VARNISHED TEAK - ROUND ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION A. INSTALLING METAL PLATES ONTO LEG PIECES - USE METAL PLATES (X3) - USE SCREWS M6x20mm (X6) - TIGHTEN ALL SCREWS FULLY - COMPLETE THESE STEPS FOR ALL LEG PIECES B.
- Page 3 10513 GEOMETRIC DINING TABLE - VARNISHED TEAK - ROUND ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION C. INSTALLING LEGS ON TABLE TOP - USE SCREWS M6x20mm (X12) - TIGHTEN ALL SCREWS FULLY - LEGS ARE SPECIFIC, PLEASE REFER TO THE CODE AFFIXED ON THE LEGS &...
