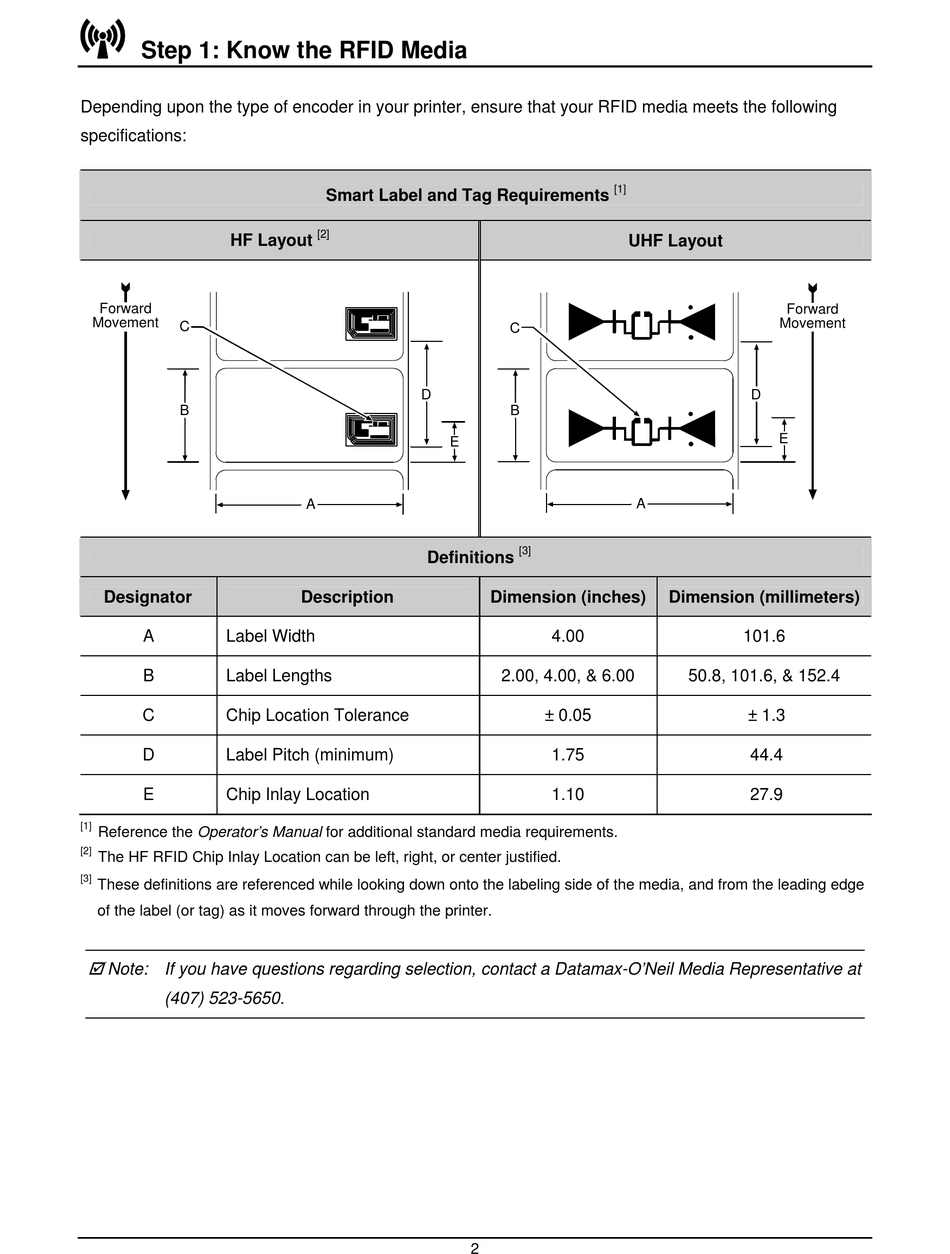

Step 1: Know the RFID Media
Depending upon the type of encoder in your printer, ensure that your RFID media meets the following
specifications:
HF Layout
Forward
Movement
C
B
Designator
A Label Width
B Label Lengths
C Chip Location Tolerance
D Label Pitch (minimum)
E Chip Inlay Location
[1]
Reference the Operator's Manual for additional standard media requirements.
[2]
The HF RFID Chip Inlay Location can be left, right, or center justified.
[3]
These definitions are referenced while looking down onto the labeling side of the media, and from the leading edge
of the label (or tag) as it moves forward through the printer.

Note: If you have questions regarding selection, contact a Datamax-O'Neil Media Representative at
(407) 523-5650.
Smart Label and Tag Requirements
[2]
D
E
A
Definitions
Description
2
[1]
UHF Layout
C
B
A
[3]
Dimension (inches) Dimension (millimeters)
4.00
2.00, 4.00, & 6.00
± 0.05
1.75
1.10
Forward
Movement
D
E
101.6
50.8, 101.6, & 152.4
± 1.3
44.4
27.9
