Recommended Test Parameter Conditions - IKONIX TVB-1 Instruction Sheet

RESET
TEST
POWER
1

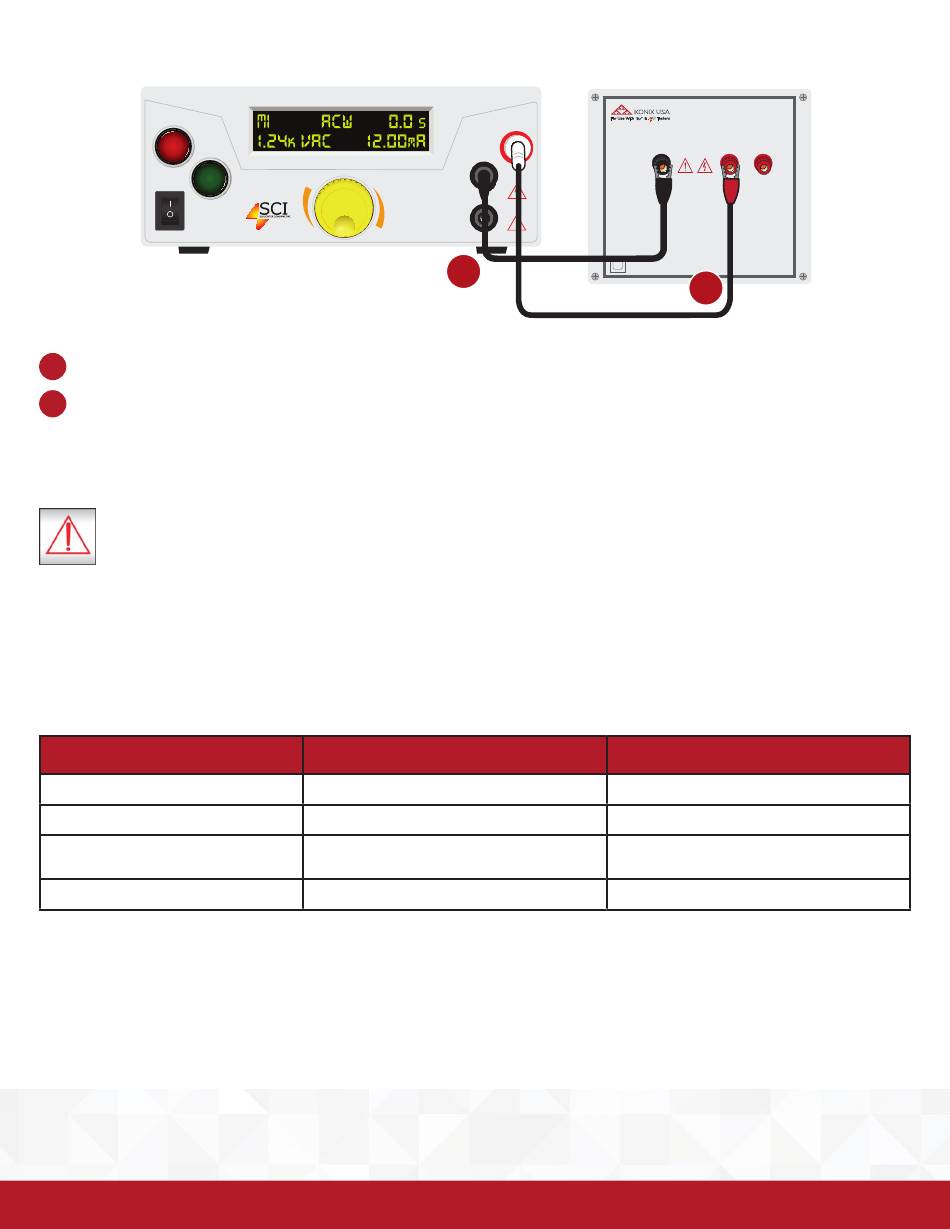

Connect the return lead from the RETURN point of your electrical safety tester to the black RETURN point on TVB-1.
2
To setup a test, connect the high voltage lead of your electrical safety tester to the red FAIL point.
Ensure that the settings on your electrical safety tester are less than or equal to the maximum recommended voltage, current and duty
cycle settings of the TVB-1. When all connections have been made, press the TEST button to begin the test. With the correct settings
entered into the electrical safety tester, connecting the output leads to a FAIL terminal should result in a FAIL.
Note: pay close attention to the maximum voltage and duty cycle limitations of each resistor. Applying voltages that are
higher than the recommended maximum setting or duty cycles greater than indicated can cause damage to the TVB-1.
Note: attention à la tension maximale et les limites du cycle de travail de chaque résistance. L'application de tensions plus
élevées que le réglage maximum recommandé ou cycles de travail supérieures à celles indiquées peut causer des dommages
à la TVB-1.

Recommended Test Parameter Conditions

The following table illustrates the resistor values and recommended test parameter settings for each type of test. Pay close
attention to the duty cycle limitations in the specifications in order to avoid damaging the TVB-1 load box.
PASS
FAIL
INSTRUMENT SETTINGS
RAMP
© Ikonix USA
H.V.
RETURN
5KVAC MAX.
6KVAC MAX.
CONT.
CHECK
CAUTION
HIGH VOLTAGE
AC/DC/IR HIPOT TESTER
1
ACW
2MΩ
120kΩ
1240V
10mA
2s
TVB-1 Instruction Sheet
TVB-1
RETURN FAIL PASS
120 kΩ 120 kΩ
Max 2300V Max 2300V
VERIFICATION LOAD BOX
Continuous Power Limitations - See Specifications
2
DCW
2MΩ
120kΩ
2121V
5000uA
2s
3
