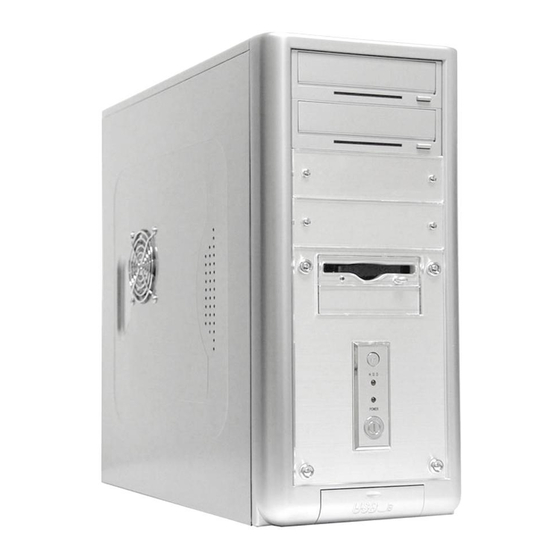

ATXB2KL Series Installation Guide

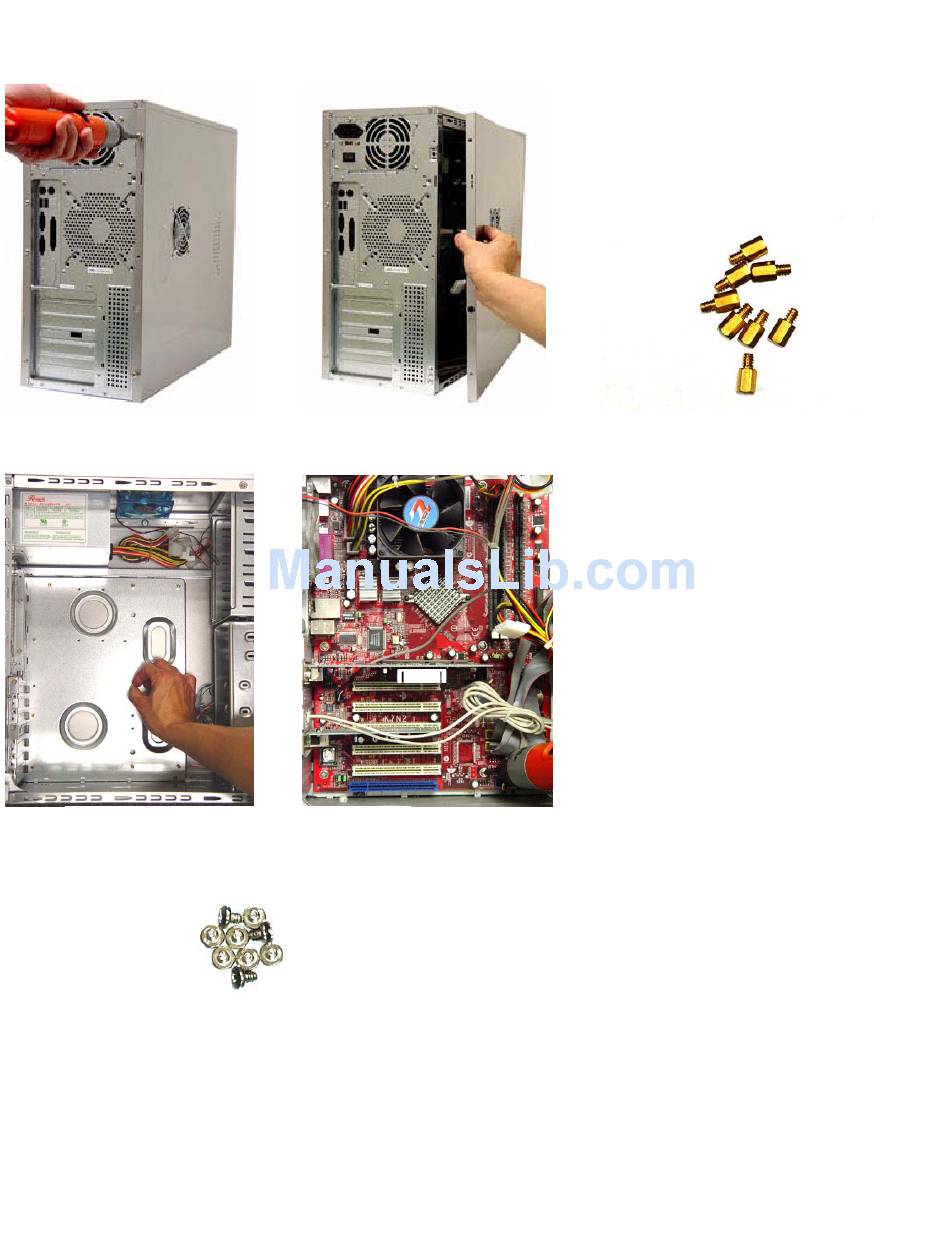

1:Unscrew the Thrum Screws
from Side Panel.
4:Put the motherboard Stand-Offs 5.Sit the motherboard on the
on the Motherboard Tray.
2.Pull the Side Panel back then
pull out.
Motherboard Tray.
3:Find the motherboard Stand-Offs
From the enclosed Screw Box.
6.Find screws in the Screw Box.
Advertisement
Related Manuals for Apevia ATXB2KL Series
Summary of Contents for Apevia ATXB2KL Series
- Page 1 ATXB2KL Series Installation Guide 1:Unscrew the Thrum Screws from Side Panel. 4:Put the motherboard Stand-Offs 5.Sit the motherboard on the on the Motherboard Tray. 2.Pull the Side Panel back then pull out. Motherboard Tray. 3:Find the motherboard Stand-Offs From the enclosed Screw Box. 6.Find screws in the Screw Box.
- Page 2 7.Screw in all the screws into the Motherboard Stand-Offs 9.Take out front panel: (For installation of 5.25” drives and front fans) Step (1): Unscrew the side Panel (motherboard side) Step (4): Unscrew the other 2 screws from the other side. 8.Same as Step 7.
- Page 3 10.Optional: Install Case Fan in the front panel (You can put up to 2*80mm fans in the front.) 13.Secure the 5.25” drives with screws 16.Screw all 3.5” hidden drives with screws. 11.Optional: Install Case Fan at rear. (1*80mm-120mm fan) 14.Slide in 3.5” FDD Drive and secure with screws 17.Snap in the Front Panel and screw 4 screws back(2*each side) with a hole from the back of the case...
- Page 4 19.Find the Audio Cables and Bring them through the I/O slot to outside of the back panel. 22.Find the 4-pin connectors (Female and Male) from case Fan. Connect the Male to the Female 4-pin from Power Supply. 25.Find the 4-pin P4 connector from Power Supply.(for P4 only) 20.Put the I/O slot back.
- Page 5 28.Plug USB Cables to your M/B. Please refer to M/B User’s Manual. “Reset SW” Cables. 31.Find “Power SW” and “+P LED” “-P LED” Cables and plug onto M/B. Please refer to M/B User’s Manual. 34.Install Case Speaker to M/B following M/B User’s Manual. 29.Find “HDD LED”...
