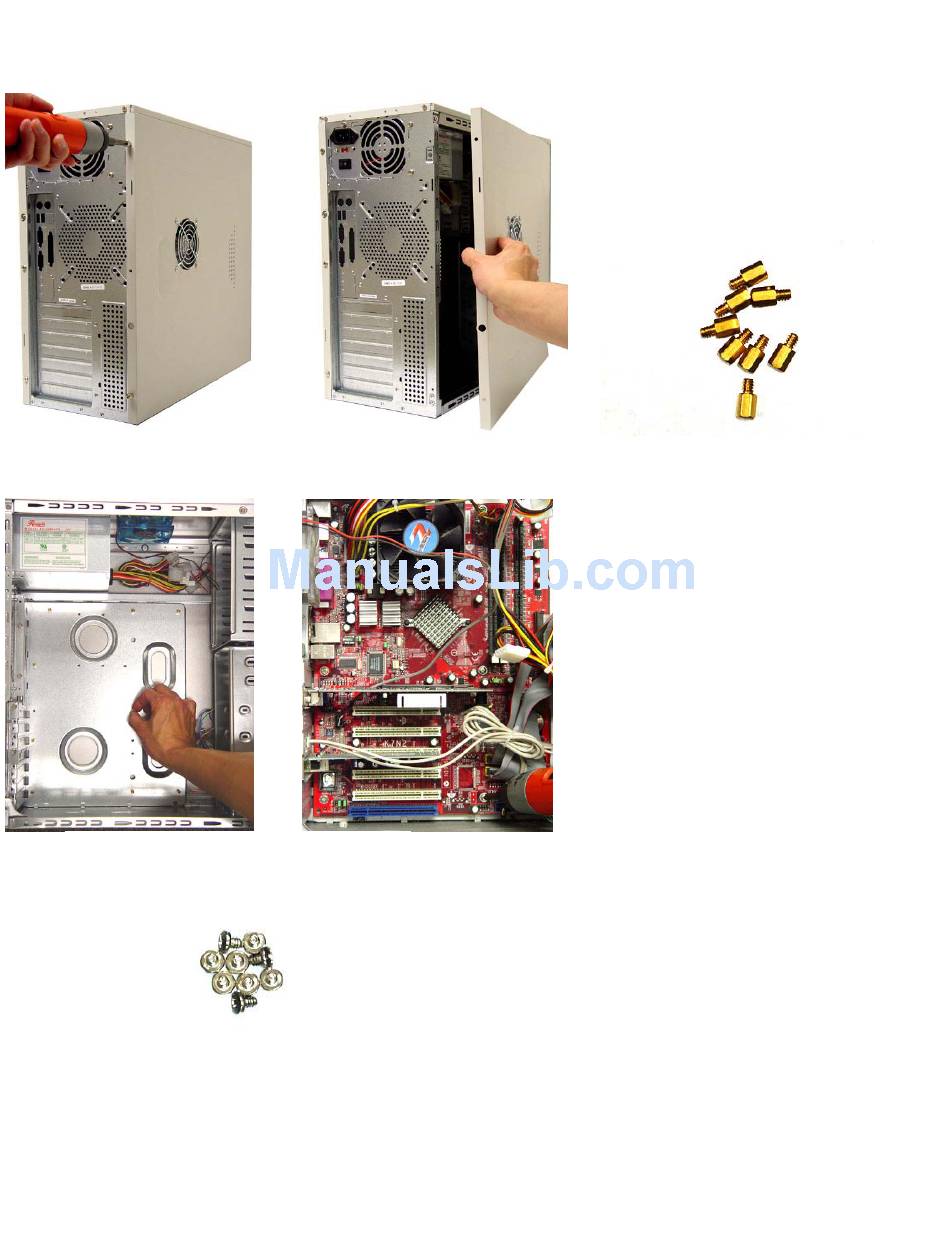

ATX998KL Installation Guide
1:Unscrew the thumb screws
from side panel.
4:Put the motherboard stand-
offs on the motherboard tray.
2.Pull the side panel back then
pull out.
5.Sit the motherboard on the
motherboard tray.
3:Find the motherboard stand-offs
from the enclosed screw box.
6.Find screws in the screw box.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATX-998KL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Apevia ATX-998KL

  • Page 1 ATX998KL Installation Guide 1:Unscrew the thumb screws from side panel. 4:Put the motherboard stand- offs on the motherboard tray. 2.Pull the side panel back then pull out. 5.Sit the motherboard on the motherboard tray. 3:Find the motherboard stand-offs from the enclosed screw box. 6.Find screws in the screw box.
  • Page 2 7.Screw in all the screws into the motherboard stand-offs 9.Take out front panel:(Optional. Only if you need to install case fans in the front) Step (1): Unscrew the side Panel (motherboard side) Step (4): Unscrew the other 3 screws from the other side. 8.Same as step 7.
  • Page 3 11.Optional:Install case fan at rear (1*80mm-120mm fan) 14.Secure the 5.25” drives in place with screws. 17.Install 3.5” hidden drives such as hard drive, zip drive. 12.Take out 5.25” metal plate & bay cover by pushing out from inside (you may use a screw driver to force it out) 15.Push out 3.5”...
  • Page 4 21.Plug into your motherboard. Different M/B has different Layout. Please refer to M/B user manual. 24.Find 2*USB cables. (USB1 & USB2) 27.Plug them onto your M/B. Please refer to M/B user manual. 22.Find the 4-pin P4 connector from power supply.(for P4 only) 25.Plug USB cables to your M/B.
  • Page 5 30.Install Case Speaker to M/B following M/B user manual. 31.Connect case fans by linking together all 4pin female and male case down and snap “Case Feet” on connectors of all fans. There will be 1*Female & 1*Male left out at each end.
