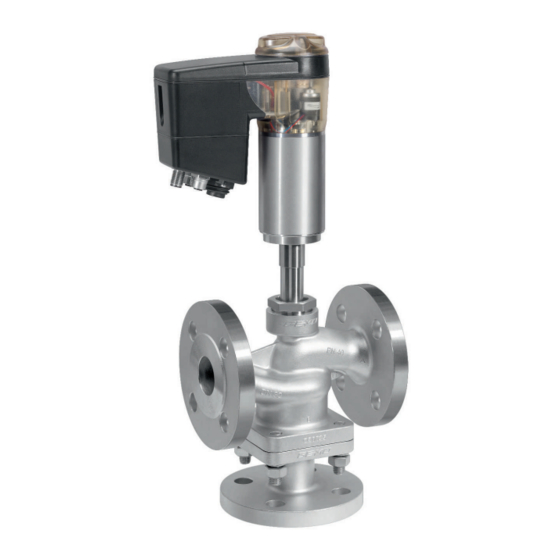

GEMÜ 343 eSyDrive
Motorized multi-port globe valve
Operating instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 343 eSyDrive and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEM 343 eSyDrive

Summary of Contents for GEM 343 eSyDrive

  • Page 1 GEMÜ 343 eSyDrive Motorized multi-port globe valve Operating instructions...
  • Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 27.04.2021 GEMÜ 343 eSyDrive 2 / 31 www.gemu-group.com...

  • Page 3: Table Of Contents

    LED symbols ............Definition of terms ..........Warning notes ............ 2 Safety information ............ 3 Product description ........... 4 GEMÜ CONEXO ............5 Correct use ..............6 Order data ..............7 Technical data ............11 8 Dimensions ............... 17 Actuator dimensions .......... 17 Body dimensions ..........

  • Page 4: General Information

    Lit (on) Corrosive chemicals! Flashing 1.4 Definition of terms Hot plant components! Working medium The medium that flows through the GEMÜ product. Hot actuator parts! 1.5 Warning notes Wherever possible, warning notes are organised according to the following scheme: Rotating cover!

  • Page 5: Safety Information

    13. Maintain the product correctly. 14. Do not carry out any maintenance work and repairs not described in this document without consulting the manu- facturer first. In cases of uncertainty: 15. Consult the nearest GEMÜ sales office. www.gemu-group.com 5 / 31 GEMÜ 343 eSyDrive...
  • Page 6 Moves actuator to the closed position Manual opera- Starting initialisation tion Actuator switched off (OFF mode) Manual opera- tion (on-site) Software update alternating On-site initial- isation (buttons) Remote initial- isation (via Di- gIn) GEMÜ 343 eSyDrive 6 / 31 www.gemu-group.com...
  • Page 7 3.3.2 High visibility LEDs 3.4 Description The GEMÜ 343 is a motorized 3/2-way globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft ac- tuator can be operated as ON/OFF or with integrated posi- tioner or process controller. The valve spindle is sealed by a self-adjusting gland packing providing low maintenance and reliable valve spindle sealing even after a long service life.

  • Page 8: Gemü Conexo

    Order with CONEXO The product is designed for installation in piping systems GEMÜ CONEXO must be ordered separately with the ordering and for controlling a working medium. option "CONEXO" (see order data). The product is not intended for use in potentially explosive For electronic identification purposes, each replaceable com- areas.

  • Page 9: Order Data

    Please find the number of the optional regulating R…. cone (R-No.) for the linear or equal-percentage modified regulating cone in the Kv value table. 10 Actuator version Code Actuator size 0 Actuator size 1 Actuator size 2 2 A www.gemu-group.com 9 / 31 GEMÜ 343 eSyDrive...
  • Page 10 60 m³/h - mod.EQ 10 Actuator version 2 A Actuator size 2 11 Special version Special version for oxygen, maximum medium temperature: 60 °C, media wetted seal materials and auxiliary materials with BAM testing 12 CONEXO Without GEMÜ 343 eSyDrive 10 / 31 www.gemu-group.com...

  • Page 11: Technical Data

    Leakage rate: Open/Close valve Seat seal Standard Test procedure Leakage rate Test medium PTFE DIN EN 12266-1 Control valve Seat seal Standard Test procedure Leakage rate Test medium FKM, PTFE DIN EN 60534-4 www.gemu-group.com 11 / 31 GEMÜ 343 eSyDrive...
  • Page 12 RS192 RS194 10.0 RS195 14.0 RS196 RS200 20.0 RS197 RS231 32.0 RS198 RS232 63.0 RS199 RS233 90.0 RS234 140.0 Kv values in m³/h Kv values refer to the flow direction A-AB and B-AB. GEMÜ 343 eSyDrive 12 / 31 www.gemu-group.com...
  • Page 13 Flange Threaded socket 15.8 19.4 24.6 32.8 Weights in kg Operating time: Actuator version 0A adjustable, max. 6 mm/s Actuator version 1A adjustable, max. 6 mm/s Actuator version 2A adjustable, max. 4 mm/s www.gemu-group.com 13 / 31 GEMÜ 343 eSyDrive...
  • Page 14 Input resistance: 250 Ω Accuracy/linearity: ≤ ±0.3% of full flow Temperature drift: ≤ ±0.1% / 10°K Resolution: 12 bit Reverse battery protec- tion: Overload proof: Yes (up to ± 24 V DC) GEMÜ 343 eSyDrive 14 / 31 www.gemu-group.com...
  • Page 15 Switching voltage: Supply voltage Switching current: ≤ 0.1 A Drop voltage: Max. 2.5 V DC at 0.1 A Overload proof: Yes (up to ± 24 V DC) Short-circuit proof: Pull-Down resistance: 120 kΩ www.gemu-group.com 15 / 31 GEMÜ 343 eSyDrive...
  • Page 16 The actuator and the PC must be in the same network to use the web server. The IP address of the actuator is entered in the web browser and the actuator can then be parametrised. In order to use more than one actuator, a definitive IP address must be assigned to each actuator in the same network. GEMÜ 343 eSyDrive 16 / 31 www.gemu-group.com...

  • Page 17: Dimensions

    8 Dimensions 8 Dimensions 8.1 Actuator dimensions Actuator version 45.0 68.0 126.0 160.0 193.0 86.0 82.0 132.0 172.0 252.0 121.0 129.0 157.0 224.0 304.0 www.gemu-group.com 17 / 31 GEMÜ 343 eSyDrive...

  • Page 18: Body Dimensions

    Code 8: Flange EN 1092, PN 16, form B, face-to-face dimension FTF EN 558 series 1, ISO 5752, basic series 1 Code 11: Flange EN 1092, PN 40, form B, face-to-face dimension FTF EN 558 series 1, ISO 5752, basic series 1 2) Valve body material Code 37: 1.4408, investment casting GEMÜ 343 eSyDrive 18 / 31 www.gemu-group.com...

  • Page 19: Threaded Socket

    2 tuator 2 G 1/2 G 3/4 G 1¼ G 1½ Dimensions in mm 1) Connection type Code 1: Threaded socket DIN ISO 228 2) Valve body material Code 9: CC499K, cast bronze www.gemu-group.com 19 / 31 GEMÜ 343 eSyDrive...

  • Page 20: Delivery

    Only work on plant that has cooled chapter "Technical data"). ● down. 4. Do not store solvents, chemicals, acids, fuels or similar fluids in the same room as GEMÜ products and their spare parts. CAUTION Exceeding the maximum permissible pressure. ▶ Damage to the product.

  • Page 21: Installation Position

    14. Please note the flow direction. 15. Please note the installation position (see chapter "Install- ation position"). 12.2 Installation position GEMÜ recommend installing the actuator vertically upright or vertically down to optimise the service life. 12.3 Installation with flanged connection Fig. 4: Flanged connection...

  • Page 22: Electrical Connection

    Function earth sures of the high pressure cleaning device. 13.2 Connection X2 5-pin M12 built-in socket, D-coded Signal name Pin 1 Tx + (Ethernet) Pin 2 Rx + (Ethernet) Pin 3 Tx - (Ethernet) GEMÜ 343 eSyDrive 22 / 31 www.gemu-group.com...

  • Page 23: Network Connection

    ð Commissioning is completed. 1. Disconnect the power supply. 2. Turn housing cover 3 clockwise. 15.2 Commissioning via the eSy-Web web interface 3. Remove housing cover 3. ● See separate eSy-Web operating instructions. www.gemu-group.com 23 / 31 GEMÜ 343 eSyDrive...
  • Page 24 Item Name Housing cover Housing cover actuator Groove for actuator Starting point for manual override 5. Turn housing cover 3 anticlockwise. ð The product opens. 6. Turn housing cover 3 clockwise. GEMÜ 343 eSyDrive 24 / 31 www.gemu-group.com...

  • Page 25: Inspection And Maintenance

    17.1 Spare parts The product can only be repaired at GEMÜ. The replacement WARNING of spare parts may only be carried out by GEMÜ. If this pro- cedure is not observed, the purchaser's guarantee rights and The equipment is subject to pressure! the manufacturer's legal liability cease.

  • Page 26: Troubleshooting

    Valve body / actuator damaged Replace valve body/actuator Body of the GEMÜ product is leaking Body of the GEMÜ product is faulty or Check the body of the GEMÜ product for corroded potential damage, replace body if neces-...

  • Page 27: Removal From Piping

    3. Disassemble the product. Observe warning notes and goods can be processed only when this note is completed. If safety information. no return delivery note is included with the product, GEMÜ cannot process credits or repair work but will dispose of the 20 Disposal goods at the operator's expense.

  • Page 28: Declaration Of Incorporation According To 2006/42/Ec (Machinery Directive)

    22 Declaration of Incorporation according to 2006/42/EC (Machinery Directive) Declaration of Incorporation according to the EC Machinery Directive 2006/42/EC, Annex II, 1.B for partly completed machinery GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the following product Make: GEMÜ...

  • Page 29: Declaration Of Conformity According To 2014/68/Eu (Pressure Equipment Directive)

    EN 1983, AD 2000 Note for products with a nominal size ≤ DN 25: The products are developed and produced according to GEMÜ process instructions and quality standards which comply with the requirements of ISO 9001 and ISO 14001. According to Article 4, Paragraph 3 of the Pressure Equipment Directive 2014/68/EU these products must not be identified by a CE-label.

  • Page 30: Declaration Of Conformity According To 2014/30/Eu (Emc Directive)

    24 Declaration of conformity according to 2014/30/EU (EMC Directive) EU Declaration of Conformity in accordance with 2014/30/EU (EMC Directive) GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the product listed below complies with the safety requirements of the EMC Directive 2014/30/EU.
  • Page 31 GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Subject to alteration Fritz-Müller-Straße 6–8, 74653 Ingelfingen-Criesbach, Ger- *88710679* many 04.2021 | 88710679 Phone +49 (0) 7940 1230 · info@gemue.de www.gemu-group.com...
