I N S T A L L A T I O N I N S T R U C T I O N S
PAC527L
PAC527F-KIT
PAC527LFxP4
PAC527LF
PAC527CVR-KIT
PAC527LFxP6
PAC527LFC

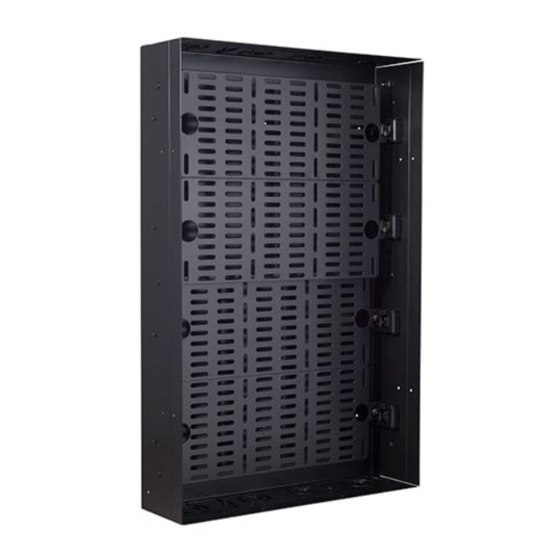

In-Wall Box w/LeverLock™ and Accessories
PAC527L Series

Advertisement

Table of Contents
loading

Summary of Contents for LEGRAND CHIEF PAC527L Series

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S PAC527L PAC527F-KIT PAC527LFxP4 PAC527LF PAC527CVR-KIT PAC527LFxP6 PAC527LFC In-Wall Box w/LeverLock™ and Accessories PAC527L Series...
  • Page 2: Important Safety Instructions

    (2 complete) and each individual backplane may hold a product. The information contained in this document is subject maximum weight of 10 lbs (4.5 kg) to change without notice or obligation of any kind. Legrand • A half backplane (after separation) may hold a makes no representation of warranty, expressed or implied, maximum weight of 5 lbs (2.3 kg).
  • Page 3 Installation Instructions PAC527L Series ADDITIONAL SAFETY INSTRUCTIONS CAUTION SPECIFIC TO PAC527FxP4 / PAC527FxP6 This equipment must be installed and assembled by qualified service personnel in accordance with local building and electrical codes. READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT!!!! NOTE: Knockouts are provided for ease of installation.
  • Page 4 Installation Instructions PAC527L Series LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
  • Page 5: Tools Required For Installation

    PAC527L Series Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16" OPTIONAL 1/4" PARTS INCLUDED E (1) [PAC527] B (8) A (4) 06-32" PAC527L 1/4 x 2-1/2" + PACL2 and hardware D (4) C (8) F (1) 3/8" 06 x 3/8" [Template/ Temporary Cover] G (1) [PAC527F]...
  • Page 6 Installation Instructions PAC527L Series PARTS - continued J (1) [PAC527LFxP4] PAC527LFxP4 B (8) 06-32" A (4) + PACL2 1/4 x 2-1/2" and hardware D (4) F (1) C (8) 3/8" [Template/ 06 x 3/8" Temporary Cover] K (1) [PAC527LFxP6] B (8) PAC527LFxP6 06-32"...
  • Page 7: Additional Information

    PAC527L Series Installation Instructions OPTIONAL PARTS PER CUSTOM CONFIGURATION (NOT INCLUDED) Conduit connectors Electrical Narrow Handy Box 3" x 2" Steel Old outlet Cover, Duplex Work Switch Box Raco #864 or (2" deep) equivalent Raco #420 or equivalent Conduit pipe 1/2", 1" or 1-1/4" ADDITIONAL INFORMATION NOTE: Grounding screw installed at factory in PAC527L, PAC527LF, PAC527LFC, PAC527LFxP4, and PAC527LFxP6 in-wall boxes.
  • Page 8: Prepare For Wiring

    PAC527L Series Installation Instructions INSTRUCTIONS FOR PAC527LFxP4 / • (8) Notwithstanding Sub-rules (6) and (7), the bonding jumper, in the case of receptacles having PAC527LFxP6 Only grounding terminals isolated from the mounting strap required for special equipment, shall be Isolated Ground Receptacle permitted to be extended directly back to the distribution panel.
  • Page 9 Installation Instructions PAC527L Series Wire the outlet box(es) as required. Refer to Table 1 and Table 2 for input and output specifications. (See Figure 2) (PAC527LFxP4 shown as example) Table 1: Input Specifications Input Input voltage, frequency 125 V AC, 60 Hz Input connection type 4x14 AWG stranded, UL Style 1015, CSA TEW...
  • Page 10 PAC527L Series Installation Instructions PAC527L Site Preparation Using a level, draw a horizontal line at the lower edge of the install site. (See Figure 4) Create an exploratory hole to confirm edge of the studs. Using the line drawn in Step 1 as lower edge and placing between studs, use the enclosed template (F) to draw lines around corners of template, and connect lines on bottom, top and sides.
  • Page 11 Installation Instructions PAC527L Series Loosely attach required conduit and conduit connectors, NOTE: If installing in a stud wall BEFORE the drywall is switch boxes, outlets, etc (not included) to PAC527L to installed, remove outer flange from PAC527L before enable fitting into the wall opening. (See Figure 7) installing the PAC527L.
  • Page 12 PAC527L Series Installation Instructions Installing LeverLock™ Backplanes Partially install #10-24 x 1/4" Phillips screws with external lever lock™ latch lever tooth washers (X) into holes on sides of PAC box. (See Figure 10) Slide each adapter (V) inside PAC box. (See Figure 10) Tighten #10-24 x 1/4"...
  • Page 13 Installation Instructions PAC527L Series Adding Template/Temporary Cover Slide flange (L) into PAC527L over installed screws, and tighten screws. (See Figure 16) NOTE: OPTIONAL: Install template (F), if necessary, as a temporary cover to protect interior of PAC527L box from debris. (M) x 8 Fold tabs of template (F) in and insert into PAC527L opening.
  • Page 14 PAC527L Series Installation Instructions Gather all wires and route through the cover opening(s). (See Figure 18) Install cover (N) and fasten with two #6 x 1-1/4" Phillips self- tapping screws (P) [#6 x 1-1/2" button head self-tapping screws (Q) for security], two spacers (S) and two #6 lock washers (T).
  • Page 15 Installation Instructions PAC527L Series DIMENSIONS 14.25 PAC527L 362.0 3.94 6.37 100.0 161.9 22.00 BREAK-OFF 558.8 REGION FOR 2 1/2" WALL INSTALLATION 0.34 MOUNTING HOLE KNOCKOUT 2.38 2.38 1.13 60.3 60.3 28.6 0.88 0.11 22.2 3.74 TRADE CONDUIT SIZE 1/2" 94.9 METRIC CONDUIT SIZE 16mm 2.00 1.38...
  • Page 16 PAC527L Series Installation Instructions DIMENSIONS - continued PAC527LF 15.40 391.1 23.26 22.00 BREAK-OFF 590.9 REGION FOR 558.8 2 1/2" WALL INSTALLATION 0.34 MOUNTING HOLE KNOCKOUT 1.13 28.6 2.38 2.38 60.3 60.3 0.88 0.11 22.2 TRADE CONDUIT SIZE 1/2" METRIC CONDUIT SIZE 16mm 2.00 1.73 50.8...
  • Page 17 Installation Instructions PAC527L Series DIMENSIONS - continued PAC527LFC 15.40 391.1 5.00 23.26 127.0 590.9 5.00 0.34 11.00 127.0 279.4 MOUNTING HOLE KNOCKOUT 3.50 88.9 2.09 1.13 53.1 28.6 2.00 50.8 0.88 1.74 3.74 22.2 44.1 0.11 94.9 TRADE CONDUIT SIZE 1/2" DETAIL B METRIC CONDUIT SIZE 16mm SCALE 2 : 5...
  • Page 18 PAC527L Series Installation Instructions DIMENSIONS - continued PAC527LFxPx PAC527FxP6 PAC527LFxP4 PAC527LFxP6 NOTE: NOTE: TWO REMOVABLE PANELS INCLUDED WITH EACH ENCLOSURE TWO REMOVABLE PANELS INCLUDED WITH EACH ENCLOSURE SHOWN HERE IN A STACKED CONFIGURATION SHOWN HERE IN A STACKED CONFIGURATION PAC527LFxPx DIMENSIONS: INCHES [MILLIMETERS]...
  • Page 19 Installation Instructions PAC527L Series DIMENSIONS - continued PAC527F-KIT 0.43 4.75 11.0 120.7 15.40 391.1 21.76 552.8 23.26 590.9 13.90 353.0 DIMENSIONS: INCHES [MILLIMETERS] PAC527CVR-KIT 13.38 339.7 1.50 38.0 21.75 552.5 3.63 0.69 92.1 17.5 5.00 127.0 DIMENSIONS: INCHES 13.81 [MILLIMETERS] 350.8...
  • Page 20: Installation Instructions

    P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 18-24 Shan Mei Street 8800-003183 Rev00 Fotan, Shatin, Hong Kong 2020 Legrand P 852 2145 4099 www.legrandav.com F 852 2145 4477 06/20...
