Overview
The Wattstopper® LCAP Series Commercial Enclosures ship with pre-configured
modular solutions. Load dimming and switching use the InFusion™ controllers
and switching products. The pre-configured designs save time in the Design
Center™ software and during the installation process.
The UL listed LCAP44A panels are adaptable to spaces that have mixed 0-10V,
and PWM loads and HV relay loads via the LVOS-0-10-PWM station. LCAP44A
connects to any controller over the local network for easy connection and
scalability.
Solution 1 – Parent-level Enclosure Models
Main Enclosure
LCAP44 44" Architectural Enclosure with hinged cover door
Panel Upper Section:
LCAP44A Panel
 1 to 2 LVOS-0-10-PWM stations
Configurations
Panel Middle Section:
 1 to 2 LVOS-0-10-PWM stations
(see KIT panel
part numbers
Panel Lower Section:
ordering key
 1 to 2 LVOS-0-10-PWM stations
last page)
Panel Low-Voltage Section
Optional Parts
LCAP-OPT-SWITCH 8-Port (4 standard and 4 POE) Ethernet switch/power supply
VA-RRU-1-120V Emergency Shunt Relay - 120V
VA-RRU-1-277V Emergency Shunt Relay - 277V
Additional Parts Ordered Separately
VA-EPC-DFS-120V
VA-EPC-DFS-277V
Specifications
LCAP44A
Cabinet Dimensions HWD
Door Dimensions HWD
Panel Insert HWD
Weight Enclosure
Weight Door
Weight Panel Insert
Number of LVOS-0-10-PWM* stations
Analog, 0-10DC/LV — Max. Outputs
PWM, LV — Max. Outputs
HV Relay 120-277 VAC — Max. Outputs
Line Feeds (breakers) required
Enclosure Finish
Door Finish
Cover
HV Wire
Ventilation
Ambient Operating Temp.
Ambient Operating Humidity
UL, CUL, and CE listed
* See these install sheets for important information:
Low Voltage Output Station Lighting_LVOS-0-10-PWM-1
LCAP Enclosure Designs
LCAP Series Enclosure Facts.

Enclosures must be populated from left to right and top down.
o Blank positions cannot be left between lighting modules in Design
Center setup.

Enclosures are pre-configured and wired (to the extent possible) using
specific combinations of the following components. Installed components are
dependent on the enclosure design.
o Components using high voltage wiring.
 Mixed high voltage wiring.
o Components using low voltage control signal wiring.
o Components using low voltage communication wiring.
o Components using high voltage and low voltage connections made
inside the enclosure.

The enclosure uses built-in barriers to separate high and low voltage wiring.
o Some designs include the barrier while other designs require the
barrier be added by the designer.
o High voltage barriers may be installed between 120V/240V/277V load
modules.

LCAP44A Enclosures only contain LVOS-0-10-PWM stations.
WWW.LEGRAND.US/WATTSTOPPER - IS-00709-D Commercial Enclosure Solutions — MODEL: LCAP44/A & LCAP44/A + Main Lug
Commercial Power Enclosure Solutions and Main Lug Options — LCAP MODEL: LCAP44A
Description
Description
Description
Emergency lighting surface mount switch 120V
Emergency lighting surface mount switch 277V
Specifications
44.5" x 24" x 4.575" / 113cm x 61cm x 11.6cm
44.5" x 24" x 0.75" / 113cm x 61cm x 2cm
42" x 21" x 4.175" / 106.7cm x 53.3cm x 10.6cm
41 lbs / 18.6 kg
20.7 lbs / 9.39 kg
23 lbs / 10.43 kg
Up to 6
Up to 24
Up to 24
Up to 24
1 and Up
Galvanized Steel
Black - Powder Coated
vented, hinged
copper wire, min of 80°C/176°F insulation
maintained 36" front clearance
0-40°C / 32-104°F
5-95% non-condensing
yes
Wattstopper
®

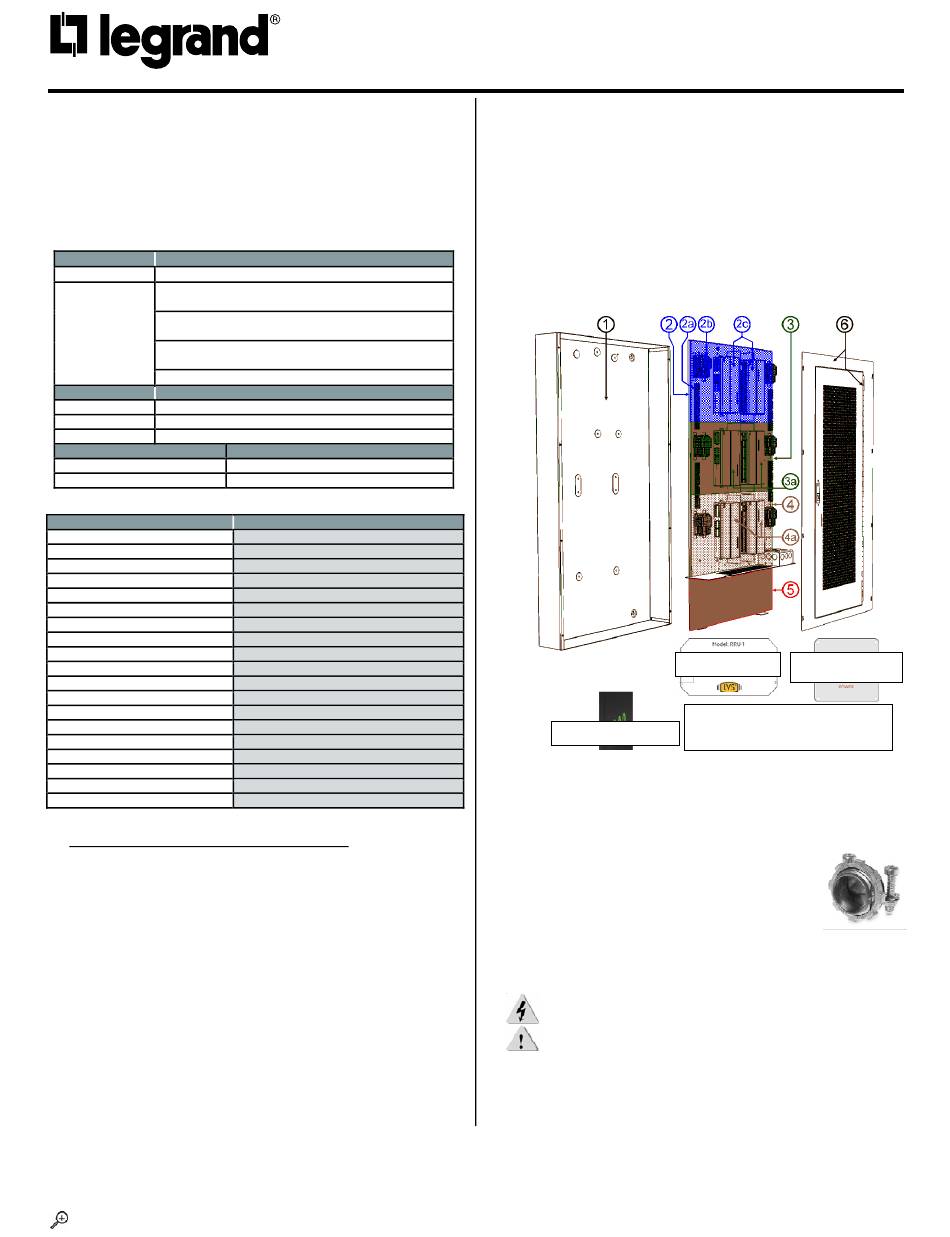

LCAP WITH MAIN LUG MODELS: LCAP44ALO/MLO/MCB
Enclosure Features / Parts
1. Enclosure can (includes door), order LCAP44 for can only.
2. Panel Insert (upper section).
a. Ground terminals, (notice terminals for all
b. Wiring terminal blocks for upper section LVOS stations,
blocks for all sections if populated with LVOS
i. Internal side pre-wired (see Wiring Block pg. 2).
ii. External side wired in field (see Wiring Block pg. 2).
c. Up to 2 LVOS-0-10-PWM stations (upper section)
3. Panel Insert (middle section).
a. Up to two additional LVOS-O-10-PWM stations.
4. Panel Insert (lower section).
a. Up to two additional LVOS-O-10-PWM stations.
5. Panel Insert (low-voltage section).
6. Enclosure cover with hinged/vented door allowing easy access when
servicing and proper ventilation for convection cooling process.
LCAP44A Panel Optional
Construction Parts See
Ordering Key,
last page.
LCAP-OPT-SWITCH
8-Port (4 standard and 4 POE)
Installation / Enclosure Mounting Instructions
Installation of LCAP products should be performed or supervised by a
Wattstopper factory representative. Installation and maintenance of high voltage
devices should only be performed by qualified and licensed personnel having
appropriate training and experience.
General Wiring
Drill proper size holes in can for running wires in and out of
the enclosure. Separate high and low voltage wire run
channels. All wire runs in and out of the enclosure should be
secured using 2-screw connectors or equivalent as shown at
the right . Proper conduit or equivalent wire channels
should be used according to local codes and regulations.
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION: Turn Breakers OFF and check that no power is on at the AC
Terminal Boards when working in the enclosure or working on
lighting fixtures connected to the module's loads, etc. Do not
allow trimmed wire cuttings to fall into enclosure components as
they may cause damage when power is restored. Damage from
this type of short will void the warranty.

Do not use outdoors.

Do not mount near gas or electric heaters.
sections).
(notice wiring
stations).
EMR. SWITCH
EMR. SWITCH
VA-EPC-DFS-12OV(277V)
VA-RRU-1-12OV (277V)
Order Separate
The VA-RUU-1 switch comes pre-installed in KIT.
The VA-EPC-DFS-1 switch is installed on site.
NOTE: Please see install sheets for emergency
switch applications.
