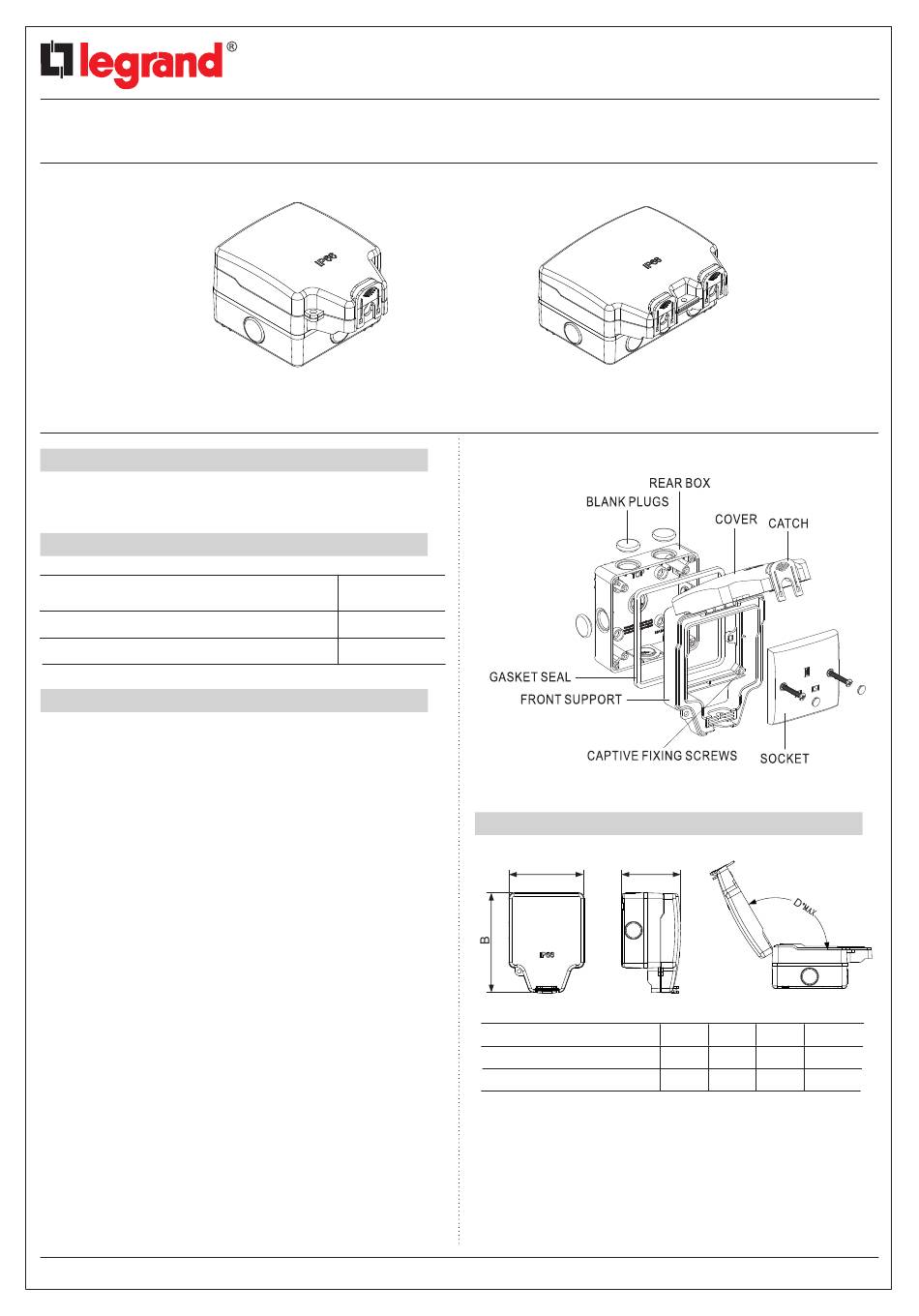

LEGRAND 6 846 31 Quick Start Manual

IP66
Waterproof box
1. USE

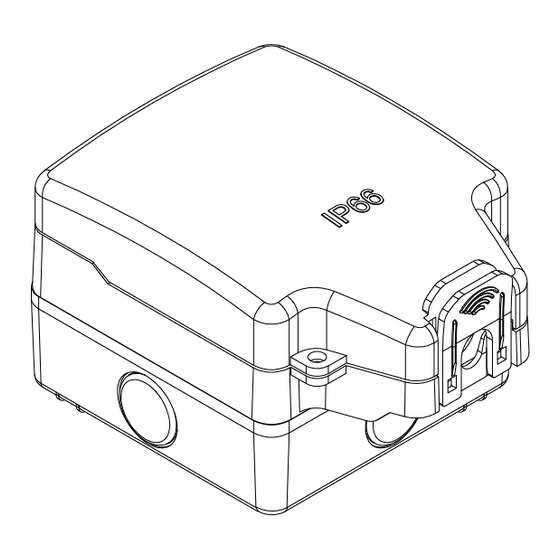

IP66 waterproof enclosure.
Surface mounting, receives the mechanisms of the BS range.
2. RANGE
Designation
1 Gang BS Enclosure IP66
2 Gang BS Enclosure IP66
3. INSTALLATION
1.The unit should be fixed to a rigid flat surface as unevenness
could cause damage to the product or affect the operation.
2.If Front assembly is fitted to base, remove fixing screws &
remove Front assembly from Rear Box.
3.Drill the required number of fixing holes.
NOTE
The drilling out of drain hole or removing rear knock-out will
reduce the IP rating of the product.
4.Mount the Rear Box using No.8 screws in all four positions.
5.Make cable entry into Rear Box as required. The fixing holes are
slotted to allow some rotational adjustment.
6.The outdoor use of unprotected flat PVC insulated cable is NOT
recommended.
7.Refit Front Assembly onto Rear Box using captive screws- DO
NOT OVERTIGHTEN.
8.Connect the wires to the correct socket rear terminals.
9.After wiring socket, put the socket into the Front Assembly using
the screws supplied with the socket (M3.5mm) to complete
installation.
10.For security to prevent unwanted tampering with Socket, a lug
feature with a 6mm hole is provided to accept a padlock.
Technical data sheet: F04226EN-00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
6 846 31
Light grey
6 846 31
6 846 32
Updated:
6 846 32
4. DIMENSIONS (mm)
A C
References
684631
684632
Cat. No(s): 6 846 31/32
A D(Max)
B C
113.6 151.8 89 120°
169 151.8 89 120°
Created: 16/05/2024
1/2
