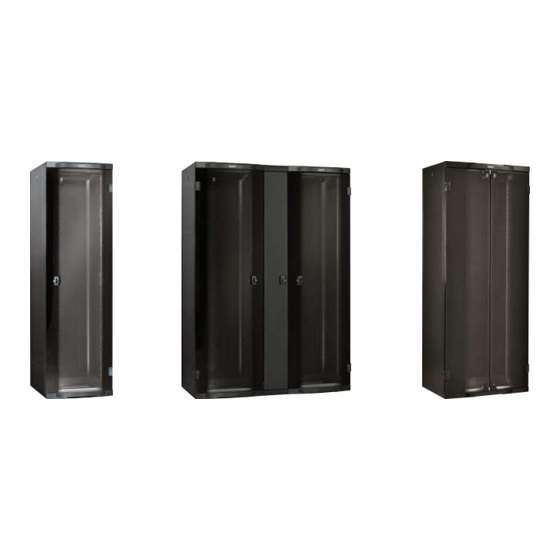

LEGRAND LCS2 Manual

19" freestanding cabinets
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

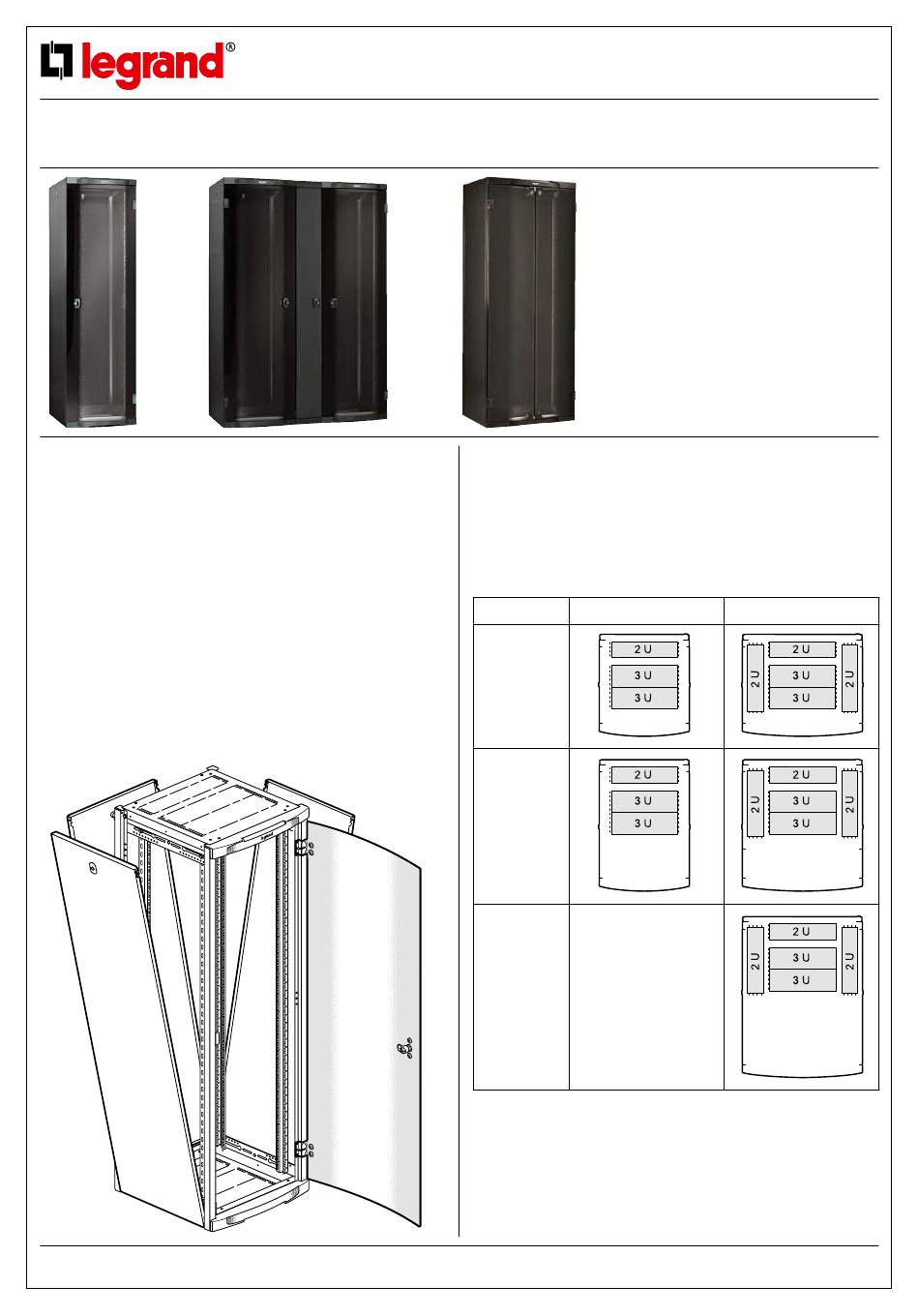

19" LCS
freestanding cabinets
2
1. GENERAL FEATURES
19" LSC
freestanding cabinets are intended for digital infrastructures.
2
19" LCS
2
cabinets are metal and provide IP20 - IK08 protection. They
have a single or double screen-printed curved glass door and are
finished throughout in charcoal grey RAL 7016.
19" LSC
cabinets can be joined together, either directly or via a
2
cabling unit, and can be equipped with a modular plinth.
Equipment and accessories for cable management, vertical extension,
thermal management, etc. complete the range.
1.1 Presentation
The main parts of 19" LCS
2
freestanding cabinets are:
- A framework consisting of 4 uprights and 2 end plates
- A single or double screen-printed curved glass front door
- 2 side panels (excluding extension cabinets)
- A rear panel
- 4 x 19" uprights
Technical data sheet: F01424EN/01
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 0 463 00/06/12/18/19/21/22/23
1. GENERAL FEATURES (continued)
1.1 Presentation (continued)
The 4 structural uprights and the 2 end plates form a metal framework
that is screwed together. The cabinet can be dismantled completely if
access is difficult.
The end plates contain the cabinet's cable entries. Their configuration,
which is identical for the top and the bottom, is dependent on the
dimensions of the cabinet:
(mm)
Depth 600
Depth 800
Depth 1000
Each cable entry is pre-cut in 19" format in order to be equipped with
a cable entry plate (see section 7.1).
The whole structure stands on 4 levelling feet that can be adjusted
from the inside and the outside of the cabinet.
Updated on: 24/10/2014
0 463 28/29/30/33/34/35/41/42/43
CONTENTS
1. General features. . . . . . . . . . . . . . . . .1
2. Range . . . . . . . . . . . . . . . . . . . . . . . . .3
3. Technical features . . . . . . . . . . . . . . .4
4. Dimensions. . . . . . . . . . . . . . . . . . . . .5
5. Baying. . . . . . . . . . . . . . . . . . . . . . . .10
6. Plinths. . . . . . . . . . . . . . . . . . . . . . . .12
7. Cable management . . . . . . . . . . . . .17
8. Vertical extension . . . . . . . . . . . . . . .20
9. Thermal management . . . . . . . . . . .21
10. Accessories . . . . . . . . . . . . . . . . . . .22
11. 19" equipment . . . . . . . . . . . . . . . . .24
12. Power distribution. . . . . . . . . . . . . . .27
Width 600
Width 800
Created on: 21/02/2012
Page
1/31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCS2 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND LCS2

Summary of Contents for LEGRAND LCS2

  • Page 1 87045 LIMOGES Cedex Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 CONTENTS Page 1. General features....1 2.
  • Page 2 For a perfect finish, 2 fascia trims, clipped onto the end plates, continue the "pixel" design from the door. The upper trim carries the Legrand name. The side and rear metal panels are equipped with: - A 2433A locking bolt 12.5 mm...
  • Page 3 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 1. GENERAL FEATURES (continued) 2. RANGE 1.2 Standards 2.1 Cabinet with single front door 19" LCS freestanding cabinets comply with the following standards: Catalogue Capacity Width Depth IEC 60529 (NF C 20-010) Degrees of protection provided by Number (mm)

  • Page 4: Technical Features

    0 463 28 - Fascia trims charcoal grey RAL 7016 ABS. 0 463 29 Legrand marked in relief + pad printed in aluminium grey RAL 9006. - Panels 1.2 mm thick sheet steel + paint finish Note: 19" LCS cabinets are delivered on a 125 mm high pallet.

  • Page 5: Front View

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 4. DIMENSIONS 4. DIMENSIONS (suite) 4.1 Dimensions (suite) All dimensions are in mm. Single front door cabinets 4.1 Dimensions Overall dimensions Cat. No. Capacity Model shown: 600 x 600 mm cabinet / 800 x 800 mm double door cabinet H2 min./max.
  • Page 6 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 4. DIMENSIONS (continued) 4. DIMENSIONS (continued) 4.2 Usable dimensions 4.2 Usable dimensions (continued) 4.2.1 600 mm wide freestanding cabinets 4.2.1 600 mm wide freestanding cabinets (continued) 600 mm wide cabinets are available in 4 heights: 600 mm wide cabinets are available in 2 depths: 600 and 800 mm 24U, 29U, 33U and 42U Model shown: 600 x 600 mm cabinet...
  • Page 7 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 4. DIMENSIONS (continued) 4. DIMENSIONS (continued) 4.2 Usable dimensions (continued) 4.2 Usable dimensions (continued) 4.2.1 600 mm wide freestanding cabinets (continued) 4.2.2 800 mm wide freestanding cabinets 800 mm wide cabinets are available in 2 heights: 42U and 47U Usable space 450 Usable space 450...
  • Page 8 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 4. DIMENSIONS (continued) 4. DIMENSIONS (continued) 4.2 Usable dimensions (continued) 4.2 Usable dimensions (continued) 4.2.2 800 mm wide freestanding cabinets (continued) 4.2.2 800 mm wide freestanding cabinets (continued) 800 mm wide cabinets are available in 3 depths: 600, 800 and Model shown: 800 x 800 mm single door cabinet 1000 mm...
  • Page 9 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 4. DIMENSIONS (continued) 4. DIMENSIONS (continued) 4.2 Usable dimensions (continued) 4.3 Positioning of supports on the floor The cabinets are equipped with 4 levelling feet. 4.2.2 800 mm wide freestanding cabinets (continued) Accessories can be used to modify the link with the floor (see sections 10.1 to 10.3).
  • Page 10 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 5. BAYING 5. BAYING (continued) 5.1 Direct baying 5.2 Baying via cabling unit 19" LCS freestanding cabinets can be joined laterally together using 5.2.1 Presentation a baying kit: The LCS cabling unit is used to join laterally two 42U 19"...
  • Page 11 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 5. BAYING (continued) 5. BAYING (continued) 5.2 Baying via cabling unit (continued) 5.2 Baying via cabling unit (continued) 5.2.1 Presentation (continued) 5.2.2 Features (continued) Each door is reversible and easy to remove. Combination shown with two 600 x 600 mm cabinets.

  • Page 12: Technical Data Sheet:

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 5. BAYING (continued) 6. PLINTHS 5.2 Baying via cabling unit (continued) 6.1 Freestanding cabinet plinths 5.2.2 Features (continued) 6.1.1 Presentation 19" LCS cabinets can be equipped with a 100 or 200 mm high metal plinth.
  • Page 13 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 6. PLINTHS (continued) 6. PLINTHS (continued) 6.1 Freestanding cabinet plinths (continued) 6.1 Freestanding cabinet plinths (continued) 6.1.1 Presentation (continued) 6.1.1 Presentation (continued) The following is required to create a plinth: If cabinets are joined together directly, their plinths can be joined - The correct plinth kit for the width of the cabinet (corner blocks + together mechanically (screws not supplied).
  • Page 14 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 6. PLINTHS (continued) 6. PLINTHS (continued) 6.1 Freestanding cabinet plinths (continued) 6.1 Freestanding cabinet plinths (continued) 6.1.2 Features 6.1.2 Features (continued) 6.1.2.1 Cabinet plinths (plinth kit + side traps) 6.1.2.3 Cross bars - Plinth fixed using M12 screws - 2 mm thick galvanised steel...
  • Page 15 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 6. PLINTHS (continued) 6. PLINTHS (continued) 6.2 Plinth for cabling unit 6.3 Linking interface (continued) When joining 19" LCS freestanding cabinets via a cabling unit, 6.3.1 Presentation (continued) Cat.
  • Page 16 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 6. PLINTHS (continued) 6. PLINTHS (continued) 6.4 Adjustable height plinths 6.4 Adjustable height plinths (continued) 6.4.1 Presentation 6.4.2 Features Adjustable height plinths are used in rooms equipped with a raised - For floor tiles 30 or 38 mm thick floor composed of tiles.

  • Page 17: Cable Management

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 7. CABLE MANAGEMENT 7. CABLE MANAGEMENT (continued) 7.1 Cable entry plates 7.1 Cable entry plates (continued) 7.1.1 Presentation 7.1.1 Presentation (continued) 19" LCS freestanding cabinets have pre-cut 19" format top and The metal plates are equipped with 2 quick fixings that do not require bottom cable entries.
  • Page 18 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 7. CABLE MANAGEMENT (continued) 7. CABLE MANAGEMENT (continued) 7.1 Cable entry plates (continued) 7.2 Cable trays (continued) 7.1.2 Features (continued) 7.2.1 Presentation (continued) 7.1.2.2 Metal plates The supports are fixed onto the structural uprights of the cabinet, and the tray is mounted without screws: Plates 1.5 mm thick steel equipped with a flexible brush (2 brushes for 2U height).
  • Page 19 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 7. CABLE MANAGEMENT (continued) 7. CABLE MANAGEMENT (continued) 7.2 Cable trays (continued) 7.4 Vertical cable manager 7.2.2 Features (continued) 7.4.1 Presentation 7.2.2.2 Flat cable trays 800 mm wide 42U 19" LCS 42U freestanding cabinets can be fitted with the set of 2 vertical cable manager panels Cat.

  • Page 20: Vertical Extension

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 7. CABLE MANAGEMENT (continued) 8. VERTICAL EXTENSION 7.4 Vertical cable manager (continued) The set of 2 vertical extension uprights Cat. No. 0 464 81 increases the capacity of 42U 800 mm wide 19" LCS freestanding cabinets by 7.4.2 Features 12 U, giving a total capacity of 54U.

  • Page 21: Thermal Management

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 9. THERMAL MANAGEMENT 9. THERMAL MANAGEMENT (continued) 9.1 Plates with fans 9.2 1U ventilation drawers 19" LCS freestanding cabinets can take plates with fans at the 3U The ventilation drawers are 19" equipment which provide circulation cable entries.

  • Page 22: Range

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 9. THERMAL MANAGEMENT (continued) 10. ACCESSORIES 9.2 1U ventilation drawers (continued) 10.1 Anti-tilt kit The anti-tilt kit Cat. No. 0 464 84 stabilises a 19" LCS freestanding cabinet (which is not fixed to the floor) when heavy products installed 4 4 2 on telescopic equipment are removed.
  • Page 23 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 +…= 100 Kg max. 0 463 28/29/30/33/34/35/41/42/43 10. ACCESSORIES (continued) 10. ACCESSORIES (continued) 10.1 Anti-tilt kit (continued) 10.2 Floor fixing kit (continued) The kit is used for remote fixing outside the cabinet. Features C-section, length 1400 mm.

  • Page 24: Dimensions

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 10. ACCESSORIES (continued) 11. 19" EQUIPMENT (continued) 10.4 19" lighting kit 11.1 19" management panels (continued) The kit Cat. No. 0 464 85 consists of a 1U 19" panel equipped with a 11.1.1 Management panels with 2 axes fluorescent light.

  • Page 25: Equipment

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 11. 19" EQUIPMENT (continued) 11. 19" EQUIPMENT (continued) 11.1 19" management panels (continued) 11.2 Fixed shelves 11.1.2 Management panels with brushes (continued) 11.2.1 Projecting mounting fixed shelf - For direct screw-free fixing on 2 x 19" uprights - Shelf is perfored for a better internal ventilation, Cat.

  • Page 26: Depth

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 11. 19" EQUIPMENT (continued) 11. 19" EQUIPMENT (continued) 11.3 Telescopic shelves 11.5 Keyboard shelf (continued) - Quick screw-free fixing system With sliding shelf for mouse, integrated mat and position for mouse - For mounting on 4 x 19"...

  • Page 27: Power Distribution

    19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 11. 19" EQUIPMENT (continued) 12. POWER DISTRIBUTION 11.6 Set of 2 fixed sliders (continued) 12.1 Vertical PDUs - Designed to provide 230 V~ power supply for active products Cat.

  • Page 28: Contents

    50/60 Hz + neutral C type Per circuit/phase Legrand also has a range of 19" PDU and vertical PDU with intensity measure ability. To know all the features of these metered PDU, consult the specific data sheet. Technical data sheet: F01424EN/01...
  • Page 29 Power supply Cat. No. Voltage Max. current Power Protection Legrand also has a range of 19" PDU and vertical PDU with intensity measure ability. To know all the features of these metered 230V - 250V 0 332 78 3680 W —...
  • Page 30 19" LCS freestanding cabinets Catalogue number(s): 0 463 00/06/12/18/19/21/22/23 0 463 28/29/30/33/34/35/41/42/43 12. POWER DISTRIBUTION (continued) 12. POWER DISTRIBUTION (continued) 12.2 19" PDUs (continued) 12.3 PDU supports (continued) 12.2.3 PDU to be equipped (71 intérieur) (71 inside) Cat. No. Capacity Colour 31.2 0 332 79 16 Mosaic modules Alumin.

  • Page 31: Fixing Centre

    12. POWER DISTRIBUTION (continued) 12.4 Multi-application DIN rail kit - For mounting modular devices on 19" fixing centre (circuit breakers, Legrand multimedia network components… etc) - Capacity 24 modules - Height 4 U (to respect the bending radius of the network cables) - Max current: 32A 12.4.1 DIN profile rail with front panel...
