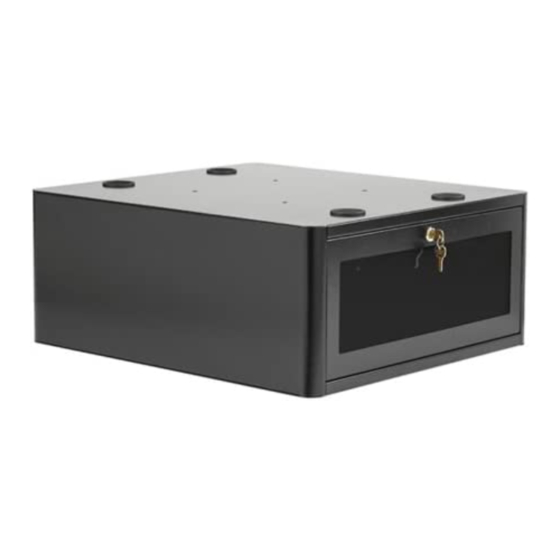

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Secure Storage Cabinet Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PAC735...
-
Page 2: Installation Instructions
The information contained in this document is subject properly assembled and installed using the instructions to change without notice or obligation of any kind. Legrand provided. makes no representation of warranty, expressed or implied, regarding the information contained herein. - Page 3 Installation Instructions PAC735 DIMENSIONS MAX RACK DEPTH = 20" 50.8 2.00 2.35 SUITED TO 10-32 UNF CAGE NUTS: McMASTER-CARR # 90680A127 OR EQUIVALENT DOOR NOT SHOWN DIMENSIONS: [MILLIMETERS] INCHES LEGEND Tighten Fastener By Hand Apretar elemento de fijación A mano Befestigungsteil festziehen Von Hand Apertar fixador...
-
Page 4: Tools Required For Installation
PAC735 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2" 3/16" (included) PARTS B (1) C (1) [Left wedge plate] A (1) [Right wedge plate] [Storage cabinet] F (1) E (1) D (1) [Rear cross bar] [Front cross bar] [Clamp bracket] J (12) G (4) H (2) K (2) -
Page 5: Assembly And Installation
Installation Instructions PAC735 ASSEMBLY AND INSTALLATION Assemble Base Support (Cart Installation ONLY!) (H) x 2 NOTE: If installing PAC735 to a stand rather than a cart, the base support is not needed as the PAC735 will sit directly on the base of the stand. Proceed to Mount Storage Cabinet section. - Page 6 PAC735 Installation Instructions Push base support back until it snaps in behind front cap of Insert four 5/16-18 x 1" button head cap screws (G) through cart base. (See Figure 4) clamp bracket holes and into holes on back of storage cabinet (A).
-
Page 7: Rack Installation (Optional)
Installation Instructions PAC735 Rack Installation (Optional) Open windowed door. Slide rack equipment (not included) into storage cabinet. NOTE: Each storage cabinet supports 19" (483 mm) wide rack mount equipment and has a capacity of 4 U. Use #10-32 cage nuts (not included) to secure storage racks to storage cabinet. - Page 8 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003114 Rev00 18-24 Shan Mei Street 2019 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 02/19 F 852 2145 4477...
