3M DBI SALA Self-Rescue 3320030 User Instruction Manual

Fall protection; descent systems
Hide thumbs

Advertisement

Quick Links

Download this manual
A
ANSI/ASSE Z359.4
OSHA
1
3320030
3320031
3320037
8900299
4.38"
(11.12cm)
17.77"
(45.1cm)
7.00"
(17.8cm)
Self-ReScue
Descent System
USER INSTRUCTION MANUAL
5903819 R
A
50 ft (15.2 m)
100 ft (30.5 m)
30 ft (9.1 m)
2.2 ft (0.7 m) - 8.7 ft (2.7 m)
A
12 ft (3.7 m)
A
3.50"
(8.9cm)
14.27"
(36.2cm)
2.50"
(6.4cm)
S
. E
Ev
ANSI/
ASSe
B
Z359.4
OSHA
5.0 lbs
ü
ü
(2.3 kg)
5.8 lbs
ü
ü
(2.6 kg)
4.7 lbs
(2.1 kg)
2.0 lbs
ü
ü
(0.9 kg)
© 3M 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the DBI SALA Self-Rescue 3320030 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M DBI SALA Self-Rescue 3320030

Summary of Contents for 3M DBI SALA Self-Rescue 3320030

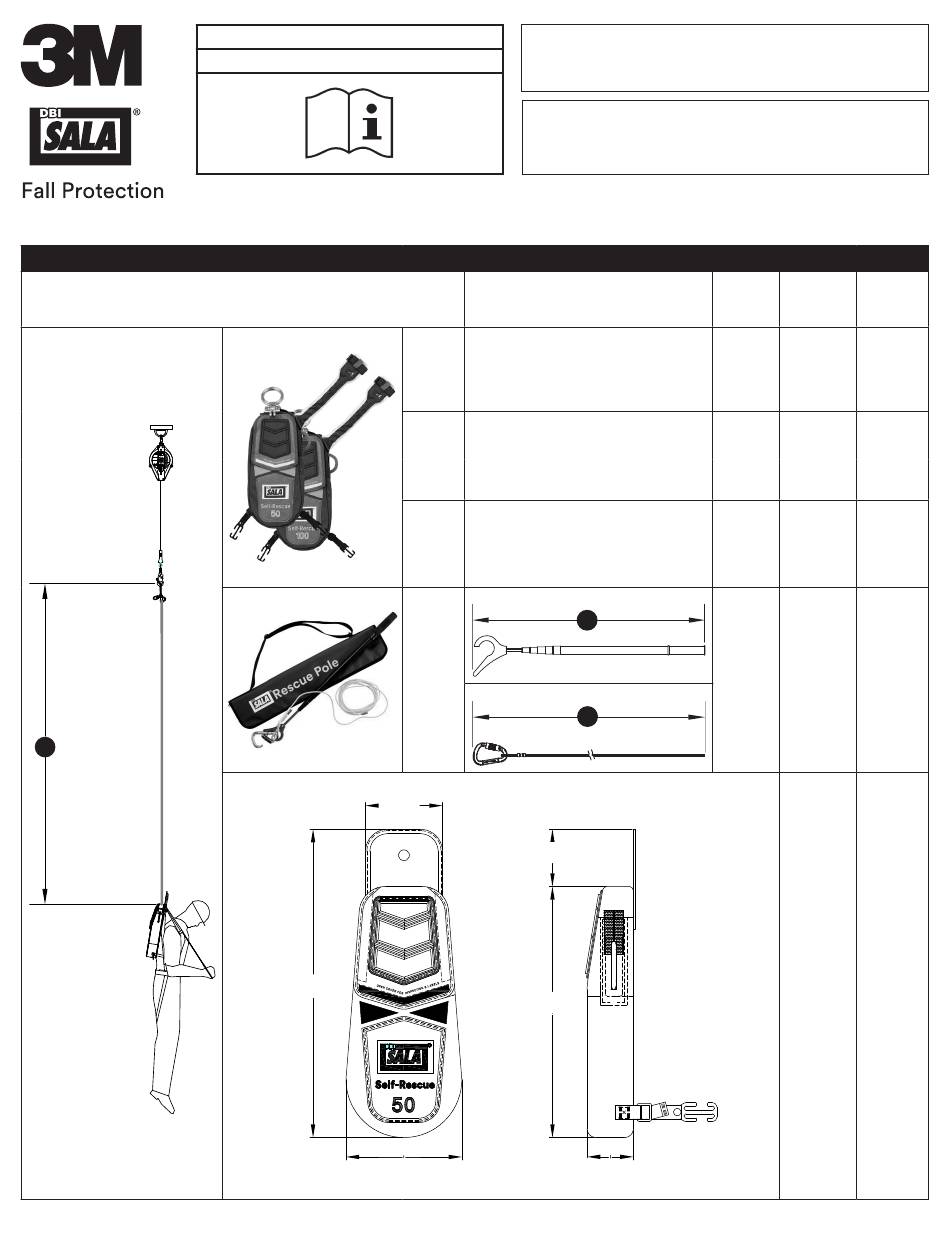

  • Page 1 30 ft (9.1 m) (2.1 kg) 2.2 ft (0.7 m) - 8.7 ft (2.7 m) 8900299 2.0 lbs ü ü (0.9 kg) 12 ft (3.7 m) 4.38” (11.12cm) 3.50” (8.9cm) 17.77” (45.1cm) 14.27” (36.2cm) 7.00” 2.50” (17.8cm) (6.4cm) © 3M 2020...

  • Page 10: Safety Information

    Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the equipment. Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs.

  • Page 11: Product Description

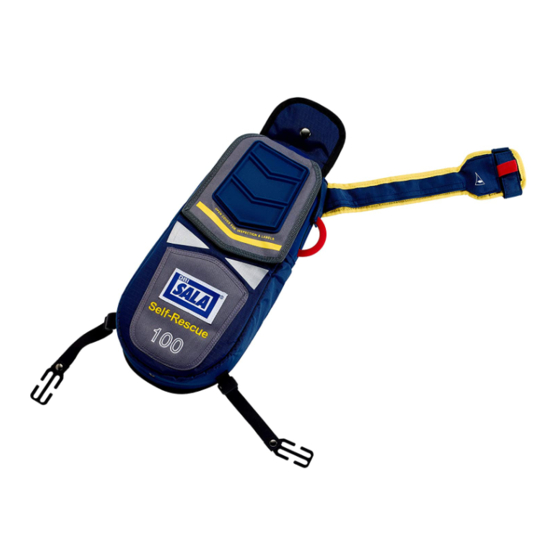

    Inspection and Maintenance Log (Table 2) at the back of this manual. PRODUCT DESCRIPTION: Figure 1 illustrates the 3M™ Self-Rescue™ Descent System. Figure 2 identifies key components of the Self-Rescue Descent System (Self-Rescue System). The Self-Rescue System is a harness mounted Backpack (A) containing a spooled Lifeline (B) feeding through a sealed Descent Device (C). The Lifeline is terminated with an Easy-Link™...
  • Page 12 After a descent, remove the Self-Rescue System from service and contact 3M regarding repair. L IMPORTANT: Only 3M or parties authorized in writing may make repairs to this equipment. L SeLf-ReSCue TRAINING SySTeM: The Self-Rescue TRAINING System can be used for up to 20 descents in a controlled training environment with secondary fall protection (see Appendix A).
  • Page 13 Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. 3M connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user instructions. See Figure 4 for examples of inappropriate connections. Do not connect snap hooks and carabiners: A.

  • Page 14: Installation

    (Single) (D) Protecta Rebel™ SRDs (Twin) (E) DBI-TALON SRD (Twin) Contact 3M with any questions or concerns regarding compatibility of your SRD with the Easy-Link System. When connecting a DBI-SALA Nano-Lok™ Edge SRD, DO NOT ATTACH the velcro shock pack straps to the HARNESS...
  • Page 15 “Inspection and Maintenance Log” (Table 2). If inspection reveals an unsafe or defective condition, do not use the system. Remove the system from service and destroy, or contact 3M regarding replacement or repair. Check to make sure the Red Assisted Rescue Ring is located on the side of the bag and is accessible for assisted rescue operation.
  • Page 16 Ensure parts are thoroughly rinsed with clean water. SERVICE: Only 3M or parties authorized in writing by 3M may make repairs to this equipment. If the Self-Rescue System has been subject to fall force or inspection reveals an unsafe or defective conditions, remove the system from service and contact 3M regarding replacement or repair.
  • Page 17 Table 3 – Inspection and Maintenance Log Inspection Date: Inspected By: Competent Components: Inspection: User Person (See Section 2 for Inspection Frequency) Self-Rescue System Inspect the Harness Interface. Ensure the Locking Pin (A) is fully seated (Red Warning Ring is Figure 15 not visible) and both Locking Buttons (B) are engaged.

  • Page 18: Appendix A - Self-Rescue Training System

    20 descent limit. If the Self-Rescue Trainer has been used in 20 descents it should be removed from service, marked as “UNUSABLE”, and replaced. Contact 3M for replacement. SETUP: Prior to each additional descent, the Self-Rescue Trainer must be reconfigured by a Competent...
  • Page 19 Figure A1 – Self-Rescue TRAINING System Setup...
  • Page 20 Table 3 – Training Descent Log Descents Serial Number Descent Date Inspector Trainer...
  • Page 21 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.

This manual is also suitable for:

Dbi sala self-rescue 3320031Dbi sala self-rescue 3320037Dbi sala self-rescue 8900299
