Back View - Arduino Nano RP2040 Connect Product Reference Manual

Ref. Description
U1 Raspberry Pi RP2040 Microcontroller
U3 N/A
U5 AT25SF128A-MHB-T 16MB Flash IC
DSC6111HI2B-012.0000 MEMS
U7
Oscillator
LSM6DSOXTR 6-axis IMU with Machine
U9
Learning Core
DL1 Green Power On LED
DL3 RGB Common Anode LED
JP2 Analog Pin + D13 Pins
7.2 Back View
10 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021

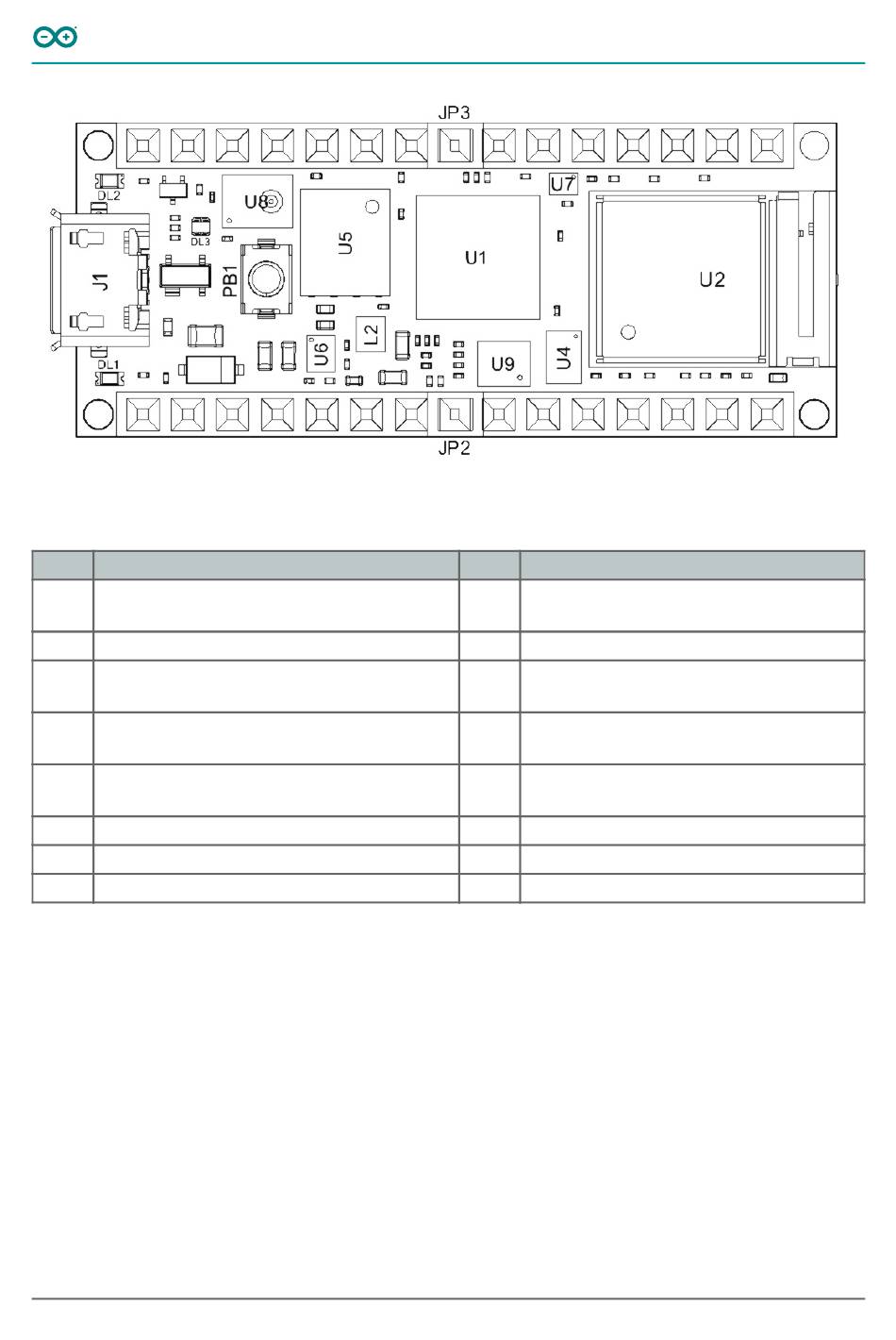

Front View of Arduino Nano RP2040 Connect Topology
Arduino® Nano RP2040 Connect
Ref. Description
Ublox NINA-W102-00B
U2
WiFi/Bluetooth Module
U4 ATECC608A-MAHDA-T Crypto IC
MP2322GQH Step-Down Buck
U6
Regulator
MP34DT06JTR MEMS
U8
Omnidirectional Microphone IC
J1 Male Micro USB Connector
DL2 Builtin Orange LED
PB1 Reset Button
JP3 Digital Pins
