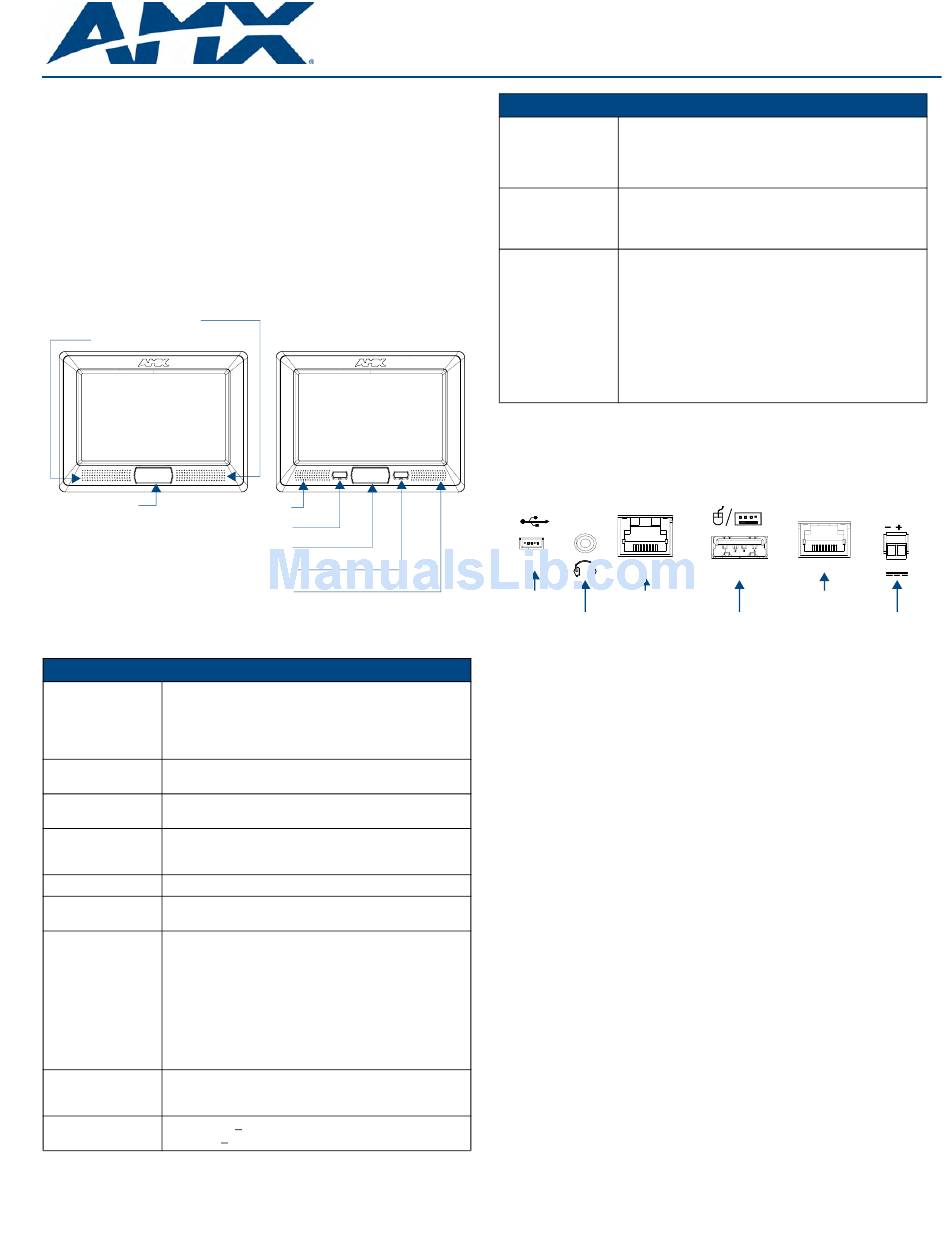

AMX Modero NXD-700Vi Quick Start Manual

Overview

These Color Video (CV) panels display NTSC/PAL/SECAM video formats within
variable sized windows. They include a built-in microphone, speaker, audio/
headphone connector, and 2 NetLinx programmable pushbuttons. Panel to
panel communication is enabled via a full duplex VoIP intercom interface.
Each panel is sold only as part of a NXD-700Vi Kit (FG2258-04K) which includes
both a panel and an NXA-AVB/ETHERNET Audio/Video Breakout Box
(FG2254-10).
For more detailed installation, configuration, programming, file transfer, and
operating instructions, refer to the NXD-700Vi Touch Panels operation/reference
guide, available on-line at www.amx.com.
Trim ring - 60-2258-25
Speaker
Microphone
Sleep button
Programmable pushbutton/LED
Programmable pushbutton/LED
FIG. 1

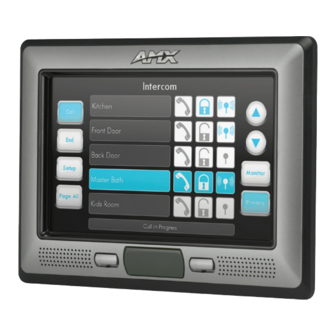

7" Modero Widescreen Video Touch Panel

Specifications

NXD-700Vi Specifications (FG2258-04)
Dimensions (HWD):
NXD-700Vi • Faceplate included: 5.93" x 7.87" x 3.28"
(15.06 cm x 20.00 cm x 8.33 cm)
• Conduit/wallbox: 5.47" x 7.23" x 3.40"
CB-TP7
(13.90 cm x 18.40 cm x 8.64 cm) (optional)
(FG035-10)
Power Requirements • Constant current draw: 1.1 A @ 12 VDC
(stand-alone): • Startup current draw: 1.6 A @ 12 VDC
Minimum power
• PSN2.8 Power Supply (FG423-17)
supply required:
Memory: • 64 MB SDRAM
• 128 MB Compact Flash (upgradable to 1 GB - factory
programmed)
Weight: • 4.12 lbs (1.87 kg)
Certifications: • FCC Part 15 Class B and CE
• IEC60950
Panel LCD • Aspect ratio: 16 x 9
Parameters: • Brightness (luminance): 350 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 200:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.19 mm
• Panel type: TFT Color Active-Matrix
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame
frequency
• Video format: NTSC, PAL, and SECAM
Viewing Angle: • 100° total viewing angle
• Vertical: + 50° (up from center) and -50° (down from
center)
IR Reception Angle: • Horizontal: + 50° (left and right from center)
• Vertical: + 30° (up and down from center)
NXD-700Vi
Trim ring - 60-2258-26
Microphone
Sleep button
Speaker
7" Modero Widescreen Touch Panel w/Full Duplex Intercom
NXD-700Vi Specifications (Cont.)
Front Panel: • Light Sensor: Photosensitive light detector for automatic
adjustment of the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake
the panel when panel is approached
• IR Receiver: 38 KHz and 455 KHz AMX IR frequencies
Operating /Storage • Operating Temperature: 0° C (32° F) to 40° C (104° F)
Environments: • Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included • Installation Kit for NXD-700Vi panels (KA2258-02):
- 2-pin 3.5 mm mini-Phoenix connector (41-5025)
Accessories:
- Four Phillips-head screws (#4-40 x 0.250 Black)
(80-0112)
- Three Drywall clips (62-5924-05) and #6 - sheet metal
screws (80-0192)
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
- Provides video/audio distribution to the A/V panel over
CAT5 cable (up to 200'/60.96 m) and accepts either
Composite or S-Video (Kit version only)
• Trim Ring with button openings (60-2258-26)
• Trim Ring without button openings (60-2258-25)

Panel Connectors

FIG. 2 shows the connectors located on the NXD-700Vi Modero Video panels.
The Audio/Video RJ-45 connector provides differential audio/video signals
between the touch panel and the NXA-AVB/ETHERNET. This connector routes
Composite video, Stereo (left/right) audio, and microphone audio.
A
E TH E R N E T
P R O G R AM
10/100
Mini-USB Ethernet
(CAT5)
(Program Port)
Stereo
Output
FIG. 2
Connector layout on the NXD-700Vi Touch Panels

Install the NXA-AVB/ETHERNET Breakout Box

Consult the NXA-AVB/ETHERNET Breakout Box Quick Start Guide for required
installation methods.

Methods for Installing the NXD-700Vi

Consult the NXD-700Vi Touch Panels operation/reference guide for installation
methodologies and their necessary dimensions.

Wiring Guidelines for the NXD-700Vi Panels

NXD-700Vi panels use a 12 VDC-compliant power supply to provide power to
the panel via the 2-pin 3.5 mm mini-Phoenix PWR connector. Use the previously
provided power requirement information to determine the power draw.
The incoming PWR and GND wires from the power supply must be connected to
the corresponding locations within the PWR connector.
Note: These units should only have one source of incoming power. Using more
than one source of power to the touch panel can result in damage to the internal
components and a possible burn out. Apply power to the panels only after
installation is complete.

Preparing captive wires

You will need a wire stripper and flat-blade screwdriver to prepare and connect
the captive wires.
Note: Never pre-tin wires for compression-type connections.
1. Strip 0.25 inch (6.35 mm) of insulation off all wires.
2. Insert each wire into the appropriate opening on the connector (according
to the wiring diagrams and connector types described in this section).
3. Tighten the screws to secure the wire in the connector. Do not tighten the
screws excessively; doing so may strip the threads and damage the
connector.
Quick Start Guide
L
K E Y B O A R D /
A U D IO / V ID E O
M O U S E
Audio-Video from
NXA-AVB/ETHERNET
Keyboard/Mouse
(CAT5)
USB connector
12V DC
P W R
Power
