E-BEEP2-x

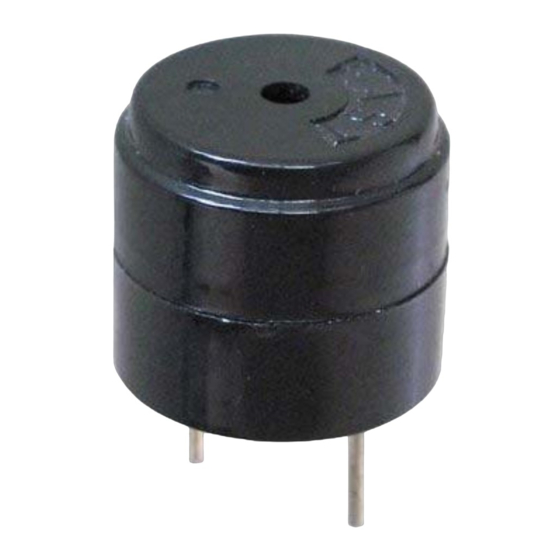

Miniature Piezo Buzzer, PCB Mount, 85dB
Guide for Installation with an ENVIROMUX
Enterprise Environment Monitoring System
E-BEEP2-x is a general purpose piezo buzzer to provide audible indication of alert when configured to respond to variations in a
sensor's readings. Operating on 12VDC, the E-BEEP2-x can be controlled and powered by an E-2D, E-5D or E-16D Enterprise
Environment Monitoring System (SYSTEM). With an optional 12VDC power supply, the E-BEEP2 can also be controlled by an
E-MINI-LXO. A 22AWG 2-wire cable (x) is pre-soldered to the leads and available in lengths of
1/10/50/100/200/400/600/800/1000 feet.

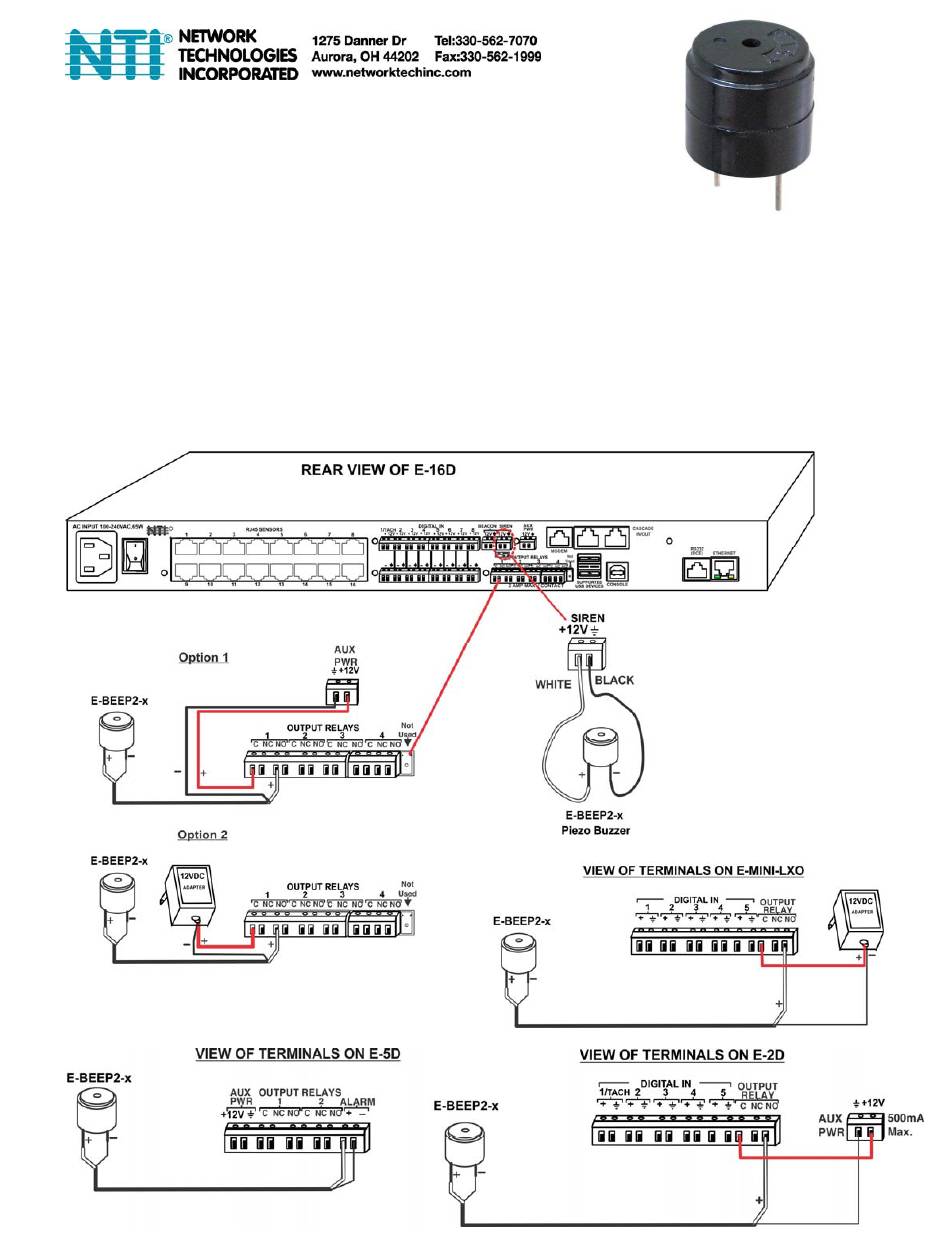

Follow the wiring diagrams below to connect the E-BEEP2-x to a SYSTEM and then configure the SYSTEM to power the piezo as
part of an alert response to provide users with audible indication of alert. An example of that configuration can be found on page
2.
1
