E-xD: RESTORE DEFAULTS VIA RS232

This procedure is provided to enable the administrator to restore defaults to the E-5D\16D using the "RS232" port.

Note: This procedure has been tested to work properly using Microsoft

HyperTerminal. We cannot confirm whether

other terminal programs will give satisfactory results.

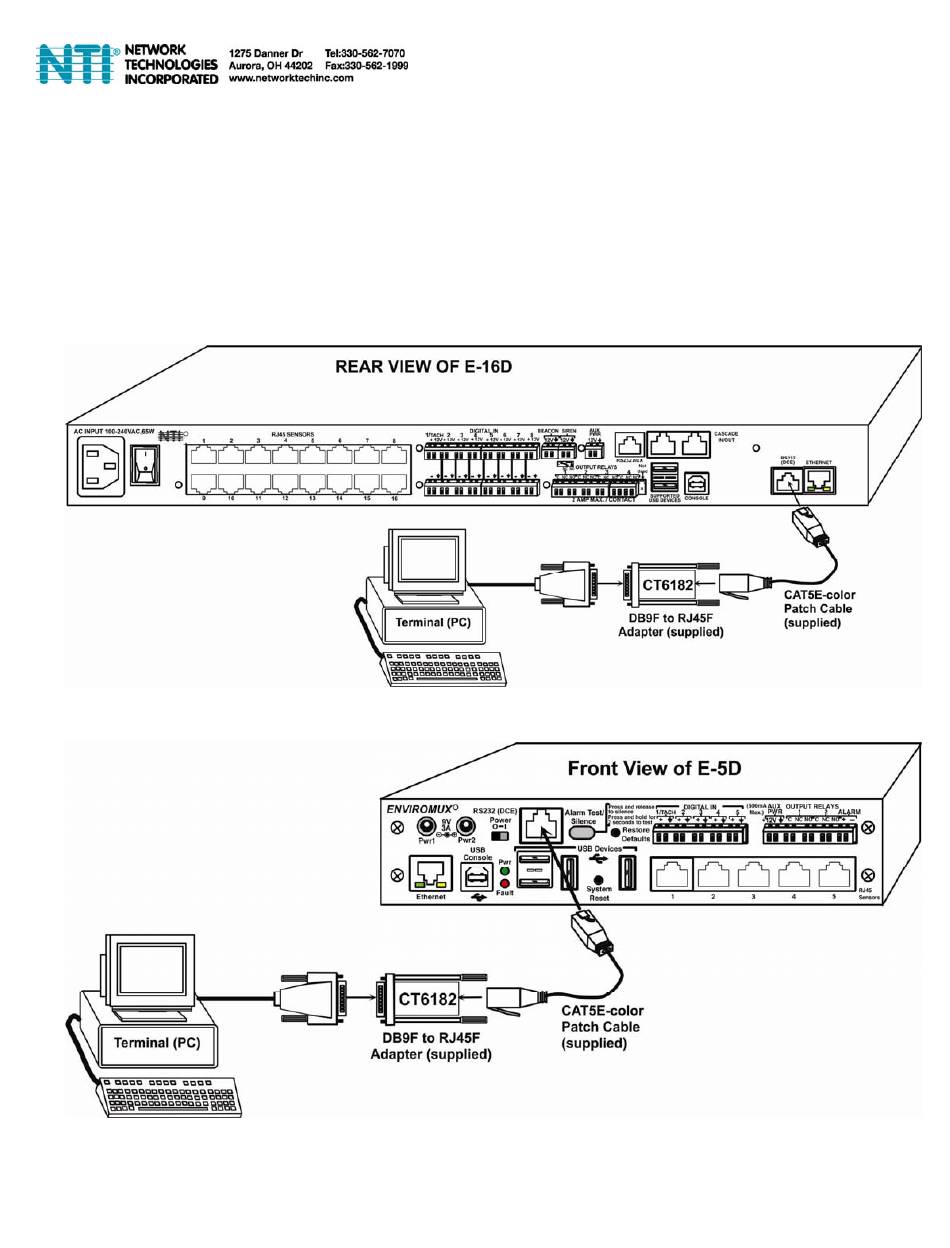

1.Connect one end of a CAT5 patch cable (supplied) to the port labeled "RS232" on the rear of the E-16D (or front of the E-5D).

Plug the other end of the CAT5 cable into an RJ45-to-DB9F adapter (supplied), and connect the adapter to the RS232 port on the

control terminal.

Connect a terminal for direct RS232 serial communication

Table of Contents

Do you have a question about the E D Series and is the answer not in the manual?

Page 1 E-xD: RESTORE DEFAULTS VIA RS232 This procedure is provided to enable the administrator to restore defaults to the E-5D\16D using the “RS232” port. ® Note: This procedure has been tested to work properly using Microsoft HyperTerminal. We cannot confirm whether other terminal programs will give satisfactory results.
Page 2 2. Using the terminal connected to the ENVIROMUX, start the terminal program (e.g. Windows HyperTerminal) and configure it as follows:  direct connection (using the appropriate CPU local serial Com port)  115200 bps  8 bits  no parity ...
Page 3 Restoring the default configuration of the ENVIROMUX 7. As the ENVIROMUX restarts, it will restore defaults (as shown in image above) and then present the ENVIROMUX login screen (below). Text Menu Login Screen...
Page 4 At this point you can either access the ENVIROMUX using the Device Discovery Tool (found on the manual CD and our website http://www.networktechinc.com/download/d-environment-monitor-16.html ) to change the network settings back to what they root were, or you can login to the text menu (below) using the default administrative user “ ”...
