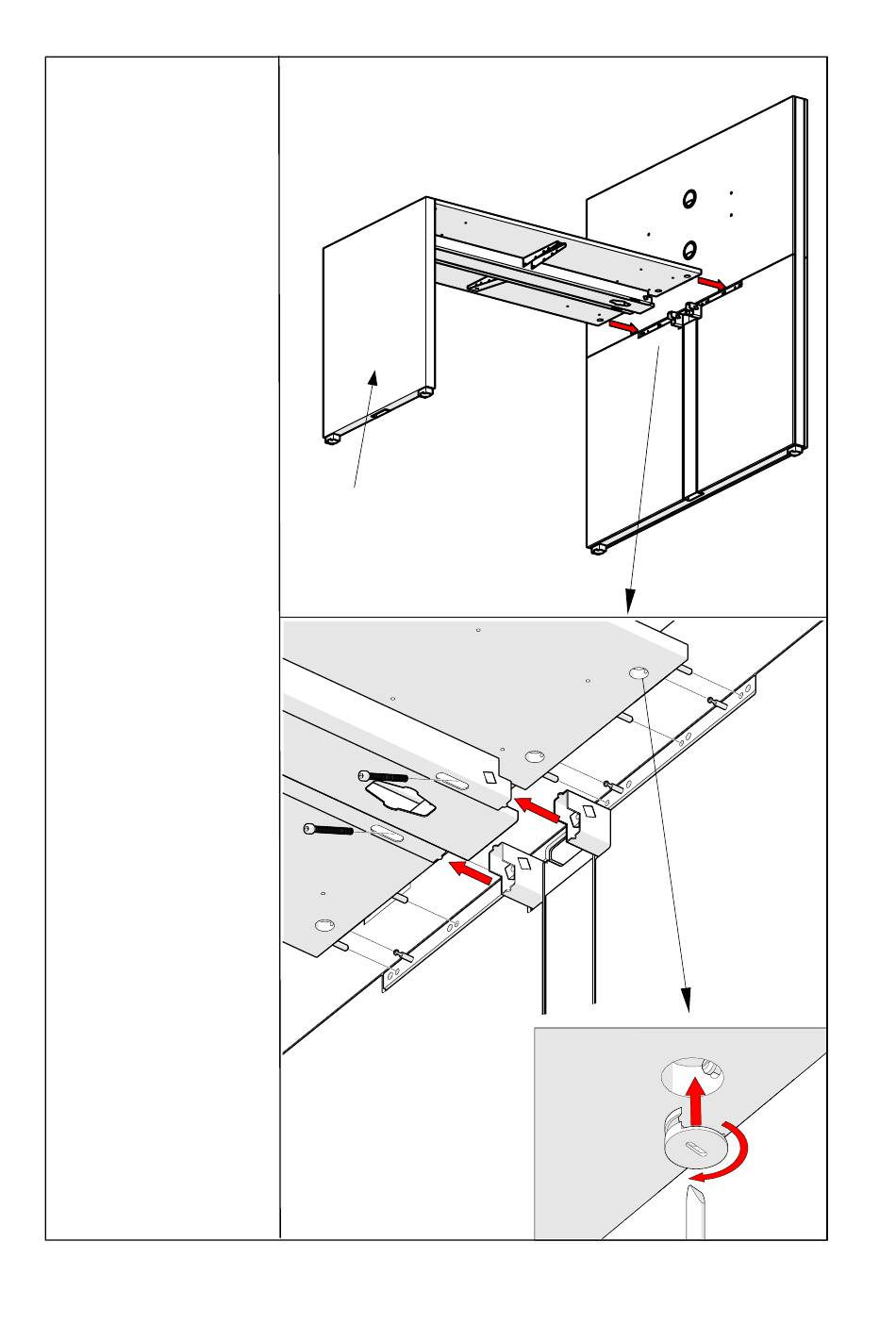

17. Media wall, fit

desktop

Insert the eccentric bolts

(a) into the wall, insert the

dowels (b) into the desk

top.

Position the desktop

against the wall.

Fit the main beams to the

wall using socket-head

screws (c), tighten using

an Allen key (24 Nm).

Insert eccentric cam (d)

and lock in place.

Place cap on eccentric

cam (not shown).

Slab end assembly as

described in figure 1

(c)

(b)

(a)

(d)
