encoder / decoder
MAX-CSE (FG 2178-70)
POWER
• Power Over Ethernet (POE)
• 12VDC: for use with NetLinx PSN power supply
(not included); overrides POE when used.
CURRENT DRAW
• 500mA @ 12V (6W)
VIDEO INPUT
• Composite Video
• S-Video
AUDIO INPUT
• Analog Stereo (RCA connectors - Red, White)
• Microphone (1/8" stereo)
SUPPORTED RESOLUTIONS
• NTSC (480i)
• PAL (576i)
SUPPORTED VIDEO CODECS
• MPEG-2
• MPEG-4
• Adjustable Bit Rate: up to 6 Mbps
SUPPORTED AUDIO CODECS
• MPEG Audio Level 2 (MP2)
• MPEG Audio Level 4 (MP4)
FRONT PANEL COMPONENTS
• LCD Display
• IR Receiver: receives 38kHz AMX IR codes.
• Status LED: blinks to indicate system and
communication status.
• ID Pushbutton: sets the NetLinx ID (Device only)
assignment for the device.
REAR PANEL CONNECTORS
• COMPOSITE IN: RCA Composite Video Input
• 12VDC PWR: accepts a 2-pin 3.5mm captive-wire
connector for (optional) 12 VDC power supply
(overrides POE).
• ETHERNET: RJ-45 Ethernet port provides 10/100 network
communication and POE.
Green LEDs indicate communication activity, connections,
speeds, and mode information.
• S-VIDEO IN: Mini-Din4 port for S-video input.
• AUDIO R/L: RCA connectors (Red, White) for analog
stereo input.
• MIC: mini-stereo microphone input jack.
• RS-232/422/485: 9-pin (DB-9) Serial port supports
RS-232 / RS-422 / RS-485 data output.
- 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400,
115,200 Baud
- 8 or 9 Data bits
- 1 or 2 Stop bits
- Even, Odd, Mark, Space and None parity settings
- CTS and RTS handshaking
- XON/XOFF handshaking
• IR: 2-pin (male) green captive-wire connector for IR/Serial
control output (software selectable, 1.142Mhz carrier).
• I/O: two digital Input/Output ports, for contact closure
control (accepts a 4-pin 3.5mm captive-wire connector).
OPERATING ENVIRONMENT
• Operating Temperature: -10° to 40° C
(14° to 113° F)
• Storage temperature: -30º to 70º C
(22º to 158° F)
• Operating Relative Humidity: 5% to 85%
(non-condensing)
• Operation intended for indoor use only.
DIMENSIONS (HWD)
• 1.52"" x 5.54" x 6.95" (3.86 cm x 14.07 cm x 17.67 cm)
WEIGHT
• 1.95 lbs (0.88 kg)
OPTIONAL ACCESSORIES
• AC-RK Accessory Rack Kit (FG515)
• PSN2.8: Power supply (FG423-17)
• PSN4.4: Power supply(FG423-45)
• PSN6.5: Power supply (FG423-41)
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3 0 0 0 R E SE AR C H D R IV E , RI CH AR DSON, TX 7508 2 • 800 .2 2 2 . 0 1 9 3 • 4 6 9 .6 2 4 .8000 • +1. 469. 624.7400 • 469. 624. 7153 fa x • ww w. amx. c om
MAX-CSD10 (FG 2178-72)
POWER
• Power Over Ethernet (POE)
• 12VDC: for use with NetLinx PSN power supply
(not included); overrides POE when used.
CURRENT DRAW
• 500mA @ 12V (6W)
VIDEO OUTPUT
• Composite Video
• S-Video
AUDIO OUTPUT
• Analog Stereo (RCA connectors - Red, White)
SUPPORTED RESOLUTIONS
• NTSC (480i)
• PAL (576i)
SUPPORTED VIDEO CODECS
• MPEG-2
• MPEG-4
• Adjustable Bit Rate: up to 6 Mbps
FRONT PANEL COMPONENTS
• LCD Display
• IR Receiver: receives 38kHz AMX IR codes.
• Status LED: blinks to indicate system and communication
status.
• ID Pushbutton: sets the NetLinx ID (Device only)
assignment for the device.
REAR PANEL CONNECTORS
• COMPOSITE OUT: RCA Composite Video Input
• 12VDC PWR: accepts a 2-pin 3.5mm captive-wire
connector for (optional) 12 VDC power supply
(overrides POE).
• ETHERNET: RJ-45 Ethernet port provides 10/100
network communication and POE.
Green LEDs indicate communication activity,
connections, speeds, and mode information.
• S-VIDEO OUT: Mini-Din4 port for S-video output.
• AUDIO R/L: RCA connectors (Red, White) for analog
stereo output.
• RS-232/422/485: 9-pin (DB-9) Serial port supports
RS-232 / RS-422 / RS-485 data output.
- 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, -
115,200 Baud
- 8 or 9 Data bits
- 1 or 2 Stop bits
- Even, Odd, Mark, Space and None parity settings
- CTS and RTS handshaking
- XON/XOFF handshaking
• IR: 2-pin (male) green captive-wire connector for IR/Serial
control output (software selectable, 1.142Mhz carrier).
• I/O: two digital Input/Output ports, for contact closure
control (accepts a 4-pin 3.5mm captive-wire connector).
OPERATING ENVIRONMENT
• Operating Temperature: -10° to 40° C (14° to 113° F)
• Storage temperature: -30º to 70º C (22º to 158° F)
• Operating Relative Humidity: 5% to 85%
(non-condensing)
• Operation intended for indoor use only.
DIMENSIONS (HWD)
• 1.52"" x 5.54" x 6.95" (3.86 cm x 14.07 cm x 17.67 cm)
WEIGHT
• 1.95 lbs (0.88 kg)
OPTIONAL ACCESSORIES
• AC-RK Accessory Rack Kit (FG515)
• PSN2.8: Power supply (FG423-17)
• PSN4.4: Power supply(FG423-45)
• PSN6.5: Power supply (FG423-41)

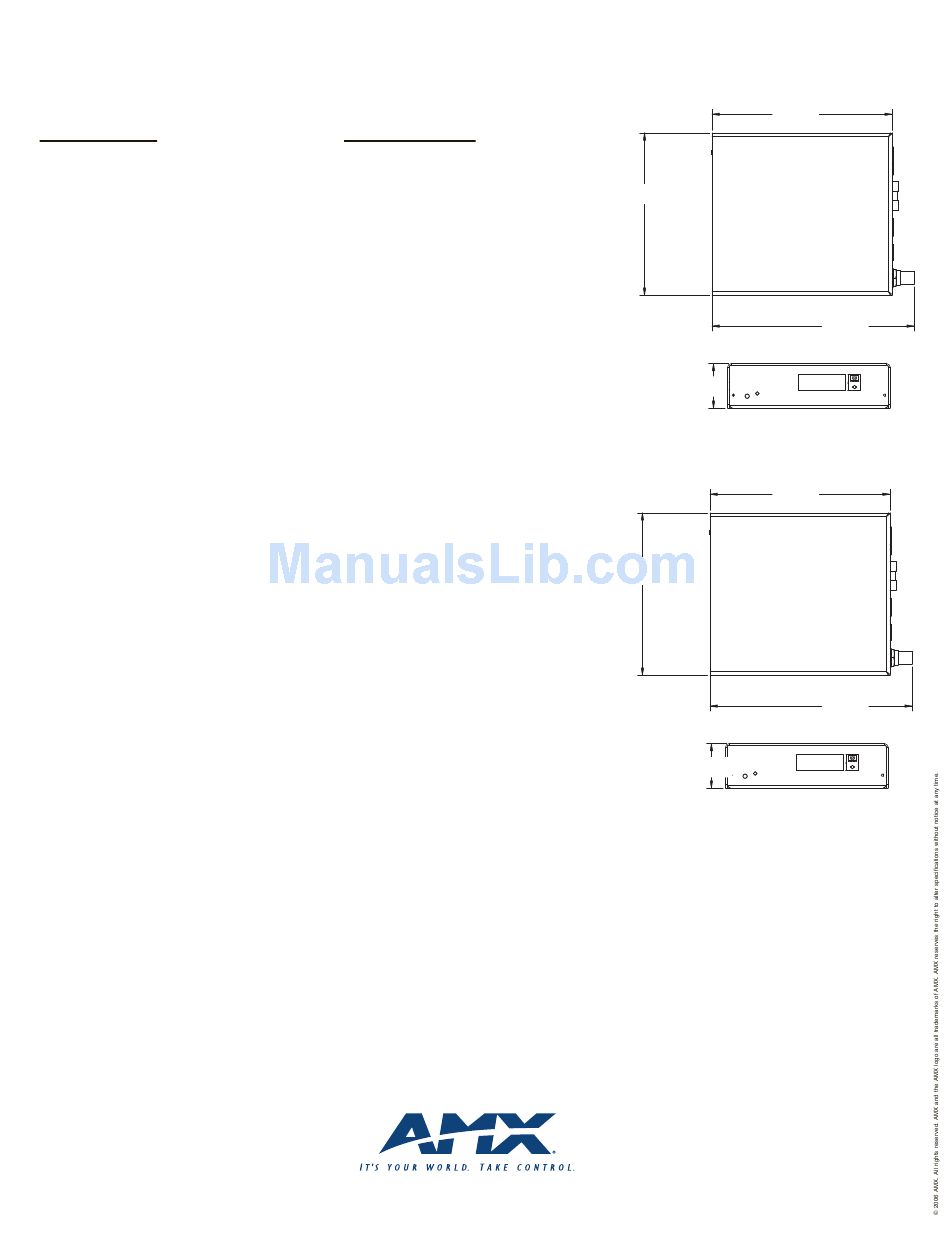

6.141
5.540
1.520
MAX-CSE
(FG 2178-70)
6.141
5.540
1.520
MAX-CSD10
(FG 2178-72)
6.896
6.896
