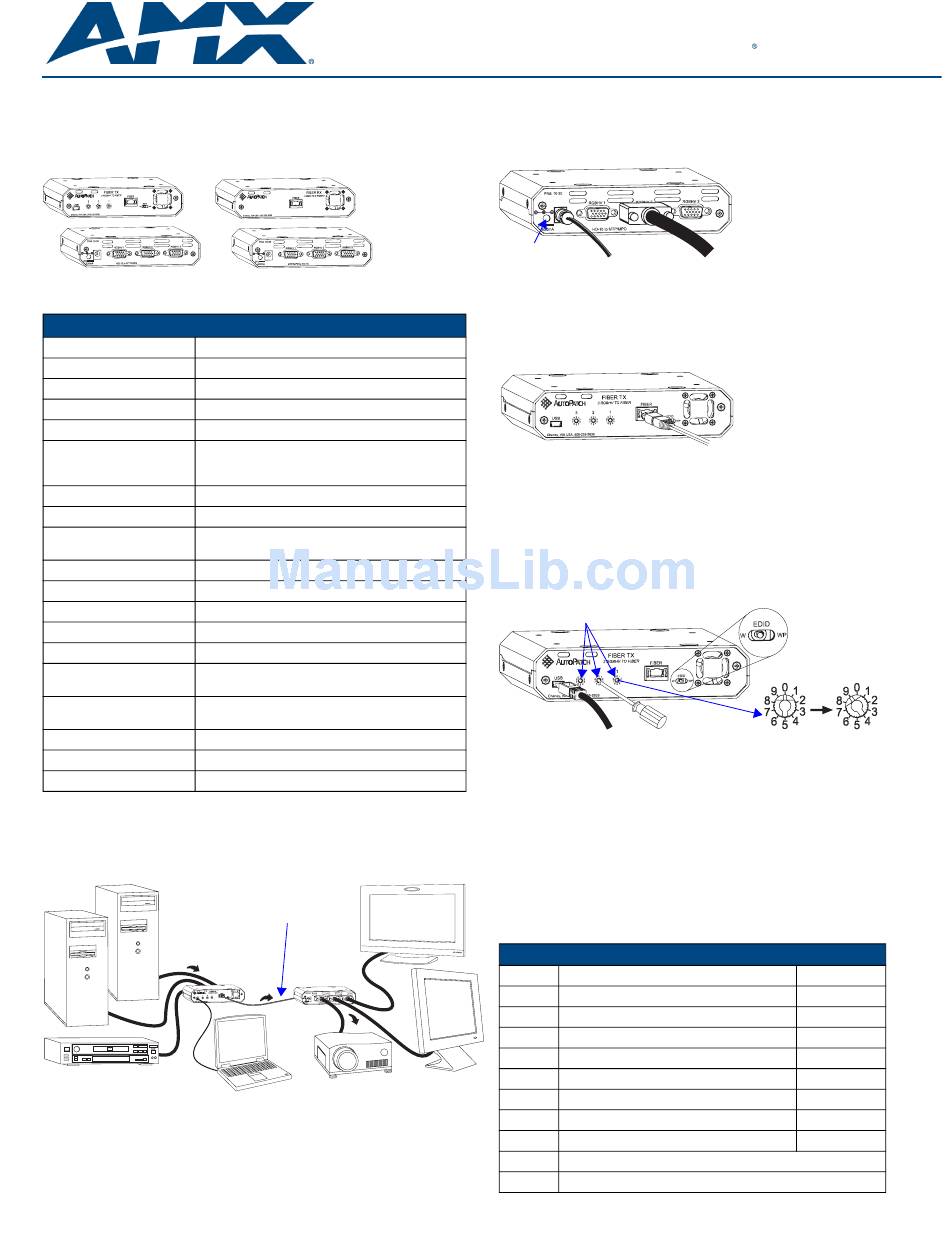

AMX DG RGBHV MTP Quick Start Manual

Overview

DG (Digital Generation) RGBHV MTP
Modules work together (FIG. 2) or in conjunction with fiber boards on an AMX
AutoPatch Distribution Matrix. This guide contains complete information for stand-
alone use. For use with a distribution matrix, see the distribution matrix's instruction
manual on the AMX AutoPatch Software & Documentation CD or visit www.amx.com.
Front
Rear
FIG. 1 Transmitter (TX) FG1010-30

Product Specifications

Specifications
Approvals CE
Power Consumption (max.) +12 V - +24 V DC, 13 W
Power Connector 2.1 mm DC power jack
Humidity 0 to 90% non-condensing
Operational Temperature 32° - 110° F (0° - 43° C)
Dimensions 5.22 in. (13.26 cm) depth
5.82 in. (14.78 cm) width
1.42 in. (3.61 cm) height without feet
Weight Approximately 1.5 lbs (0.68 kg)
Compatible Fiber Modules DG DVI MTP Fiber
Resolution Support Up to 1920x1200 @ 60 Hz refresh rate
(with reduced sync blanking)
DDC/EDID Support EDID resolutions provided by RGBHV TX (see reverse)
Pixel Bandwidth 1.65 Gbps
RGB Input/Output Level 700 m Vpp
HV Sync Input/Output Level TTL compatible
RGB Input/Output Impedance 75 ohms
12 Fiber Multimode MTP, 50/125 µm or 62.5/125 µm
Fiber Cable Types
with female MTP/MPO connectors (male on module)
Fiber Cable Length Up to 3000 ft. (914.4 m) cable requires low loss, con-
trolled skew, such as, Alcoa 50/125 µm Laser-Link 550
Fiber Cable Termination Female MTP
Fiber Connector on Module Male MTP (guide pins define it as male)
RGBHV Connector HD-15

Mounting Options

• Desktop – attach the rubber feet (included) on the bottom of the module.
• Rack Trays & Mounting Brackets – contact your AMX representative.

Installation

Typical System Setup

Fiber up to 3000 ft. (914 m)
TX FG1010-30
Control
Source Devices
USB
FIG. 2 Typical system setup (USB connection to PC for setup only)
The TX receives RGBHV signals from 3 source devices and sends them over a single
high-density 12-fiber multimode cable. The RX accepts the signals from the fiber
cable, converts the signals back to RGBHV, and sends each RGBHV signal to its
corresponding destination device.
Tip: Before installing in a permanent location, place equipment close together, so the
Control PC and the Destination Monitor can be seen simultaneously during fine tuning.
®
Fiber Transmitter (TX) and Receiver (RX)
Receiver (RX) FG1010-33
RX FG1010-33
PC
Destination Devices
AutoPatch DG RGBHV MTP Fiber Modules

To attach connectors:

1. Check EDID switch on front of TX to be sure that it remains set to the right (WP).
2. For each source device, insert the HD-15 connector into the RGBHV (HD-15)
jack on the rear of the TX (FIG. 3). The connector number corresponds to the
channel number. For HD-15 pinout, see FIG. 6 on reverse.
Power
Indicator
FIG. 3 Attach HD-15 and power cables
3. For each destination device, insert the HD-15 plug into the RGBHV jack on the
rear of the RX. The connector number corresponds to the channel number.
Caution: Do not severely bend or kink the fiber cable. It can cause
irreversible damage to the cable.
4. Insert the MTP/MPO plug on one end of the fiber cable into the Fiber (MTP/
MPO) jack on the front of the TX (FIG. 4).
FIG. 4
Attach fiber cable
5. Insert the other end of the fiber cable into the Fiber jack on the front of the RX.
6. Insert the power plugs into the power jacks on the TX and RX (FIG. 3).
7. Plug the power cords into the power sources.
Important: Do not set the EDID switch to W (Write) unless directed to do so by
technical support.

To adjust resolution / refresh rate for a channel:

1. Set the rotary switch on the front to position 9 "AutoResolution" using a small
screwdriver (see FIG. 5 for rotary switch alignment).
Preset resolution/refresh settings (Step 1 above)
USB connection
for wizard option
(Step 4 below)
FIG. 5 Adjust one channel at a time
If fine tuning is necessary:
2. Determine the resolution/refresh setting for the Source PC* attached to the
channel (see instructions on reverse in first column).
3. Set rotary switch to preset number – 0, 1, or 2 – whose default settings (see
table below) correspond closest to the Source PC's settings per Step 2.
4. Insert USB plug from running Control PC into USB jack on the front of the TX.
Windows recognizes the new device as an HID and installs default drivers.
5. Adjust the image using the supplied software, the RGB-Optical Wizard (see
"Video Display Adjustment" on reverse in first column).
*If source resolution is changed later, a new preset or adjustment sequence is needed.
Tip: After a resolution / refresh file has been fine-tuned using the Wizard, it can be
saved and then used for other channels connected to the same type of equipment.
Preset Resolution / Refresh Settings
Setting
0 User Configurable (default 1024x768)
1 User Configurable (default 1280x1024)
2 User Configurable (default 1600x1200)
3 640x480 (cannot be tuned with software)
4 800x600 (cannot be tuned with software)
5 1024x768 (cannot be tuned with software)
6 1280x1024 (cannot be tuned with software)
7 1600x1200 (cannot be tuned with software)
8 Reserved
9 AutoResolution (scans settings 3 through 7)
Note: Default resolution / refresh files are in the <installation folder>\presets\default.
Quick Start Guide
HD-15 Cable
Power Cable
Fiber Cable
Default 0
Resolution
EDID switch remains
set to WP (Write-Protect),
so source & destination
can share information
Rotary Switch
AutoResolution 9
Refresh
60 Hz (default)
60 Hz (default)
60 Hz (default)
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
