dtmf interface

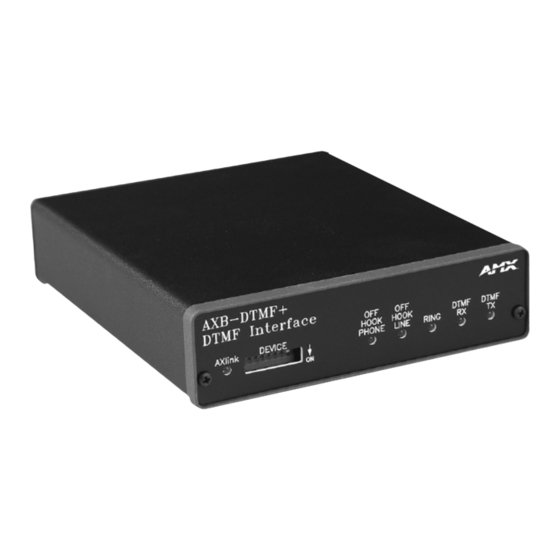

The AXB-DTMF DTMF Interface provides a complete dual tone multi-
frequency telephone control and audio interface for AMX Control Systems
over the AXLink data bus.
In addition to transmission and reception of DTMF tones, the DTMF
Interface can detect incoming and outgoing rings, distinctive ring pattern,
dial tone, busy signal and Caller ID data. Full call handling for off-hook,
hang-up, and programmable auto-answer is included. The unit can also
enable, disable, and monitor operation of extension telephones.
The DTMF Interface's line-level audio in and out jacks open up applications
for music-on-hold, telephone audio amplification, and recording.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMX AXB-DTMF
Summary of Contents for AMX AXB-DTMF

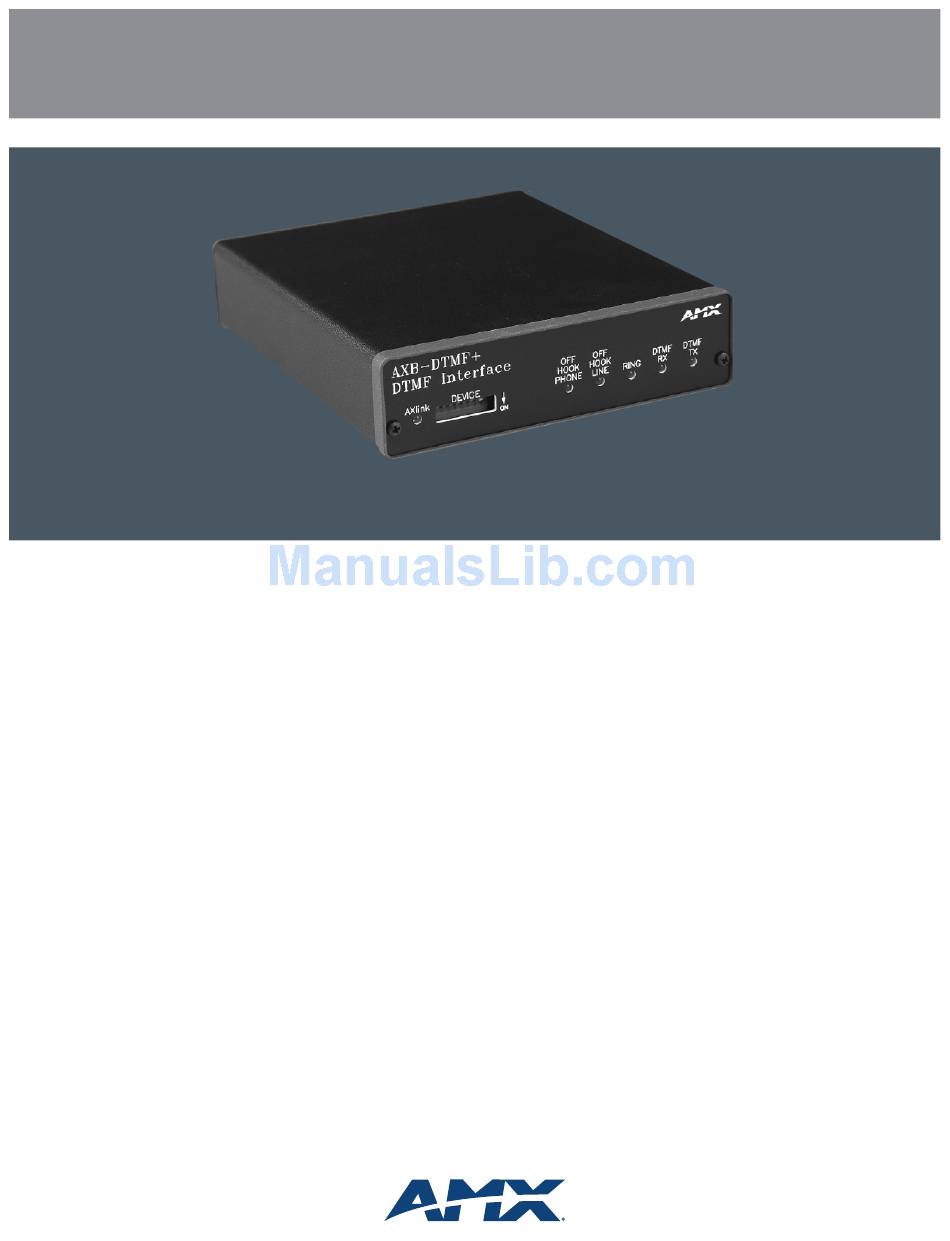

- Page 1 The AXB-DTMF DTMF Interface provides a complete dual tone multi- frequency telephone control and audio interface for AMX Control Systems over the AXLink data bus. In addition to transmission and reception of DTMF tones, the DTMF Interface can detect incoming and outgoing rings, distinctive ring pattern, dial tone, busy signal and Caller ID data.
- Page 2 AXB-DTMF (FG946) • Transmits and receives dual tone multi-frequency (DTMF) signals • Detects incoming and outgoing ring, distinctive ring, dial tone, busy, and Caller ID data • Senses off-hook and hang-up of line and extension telephones • Provides programmable auto-answer operation •...
