The RDA-CKM Dual Choke Module is used for debuzzing, lamp noise
reduction, and to correct minor common neutral interactions. This unit con-
sists of dual 350 µS rise time chokes. It occupies only one enclosure space
and is useful with the RDD-DM series of integrated dimmer modules. The
module's 120 and 240-277 VAC ratings are UL and C-UL approved.
Mounting points
Mounting points

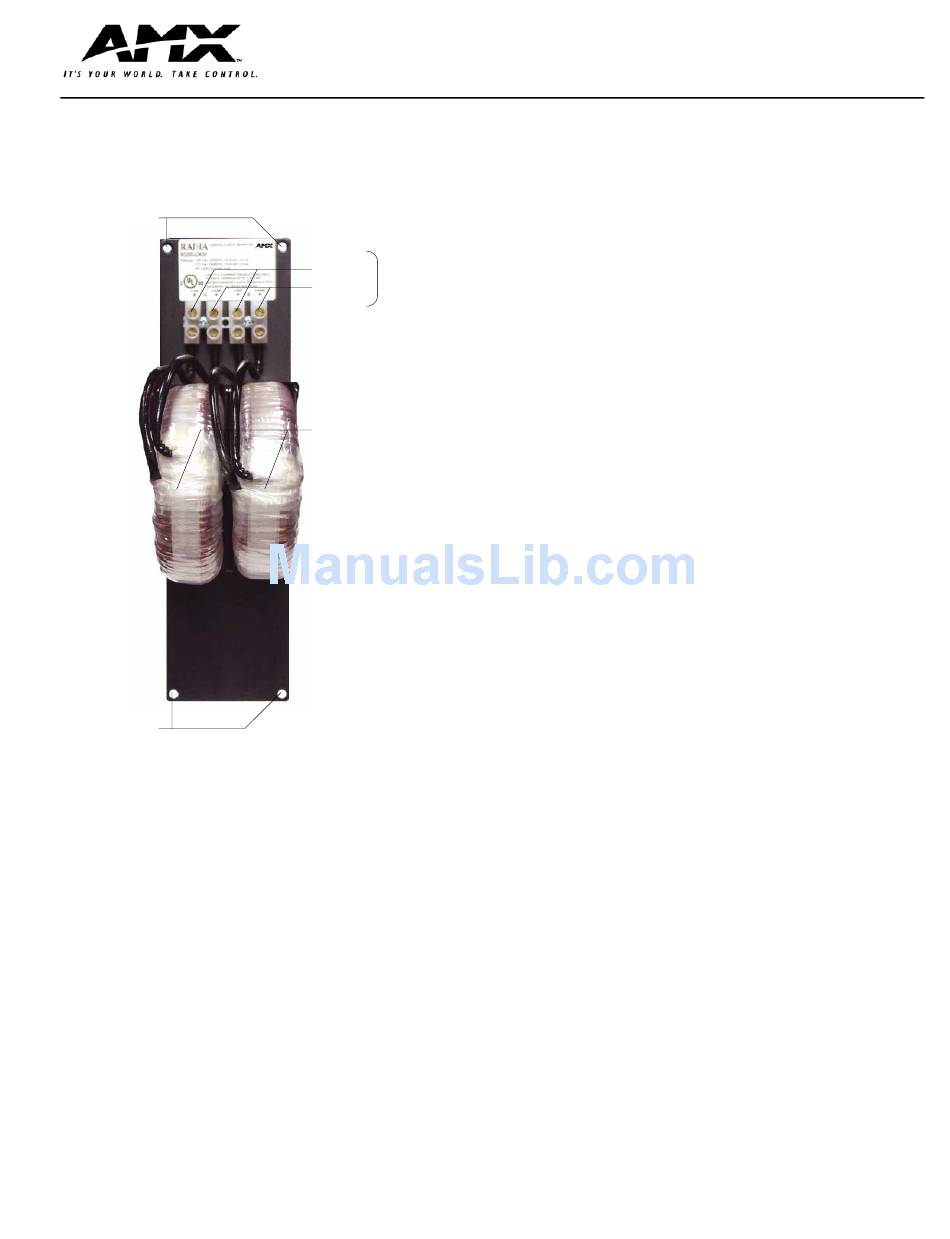

FIG. 1 RDA-CKM
RDA-CKM UL and C-UL Ratings:
Input:
• 120 VAC, 50/60 Hz, 2400 W
• 240-277 VAC, 50/60 Hz, 2400 W
Specifications:
• Dimensions (HW): 10.0" x 2.75" (254.00 mm x 69.85 mm)
• Use wires rated at 75°C (167°F)
• Torque terminals to 7 in-lbs (0.8 N/M)
• Max. wire size: 10 AWG (4 mm²)
• Wire stripping length: 0.28" (7 mm)
• Weight: 6.5 lbs (2.95 kg)
• BTU/hr: 300
Suggested Loads:
• Incandescent
• Low-voltage
• Neon, cold-cathode
Line In (hot)
High-voltage
connections
Load out
350 µS Choke
Installation Sheet
RDA-CKM Dual Choke Module
Caution Pre-Installation Notes:
• All Class 1 wiring must be connected to proper terminals.
• All control wiring must be connected to proper terminals.
• Disconnect power while installing or connecting the unit.
• Keep top and bottom air vents clear at all times.
• Test loads for shorts before connecting.
• Use low-voltage wires with a 300 volt rating or greater.
• Use field-installed copper conductors.
• Run all low-voltage and control wires away from heat producing parts
of the dimmer.
• Each dimming circuit must have a separate neutral connection.
• All electrical ratings are for continuous duty.
• For indoor use only.
• AC lighting loads only.
