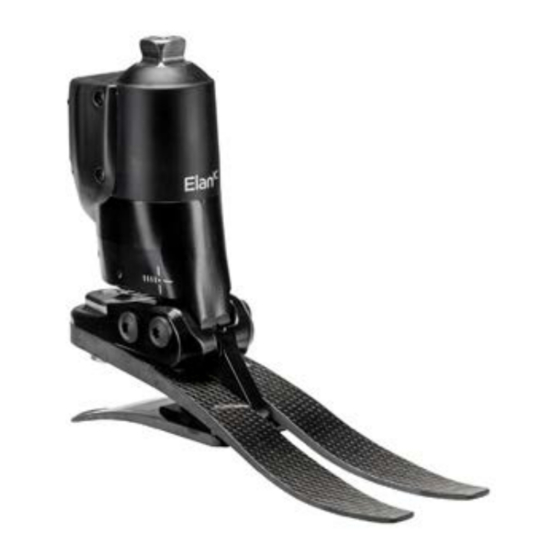

Blatchford ElanIC Quick Start Manual
Hide thumbs Also See for ElanIC:

Advertisement

Elan
IC
Quick Start Guide
ELANIC22L1S - ELANIC30R8S
ELANIC22L1SD - ELANIC30R8SD
How to Charge Elan
When the inductive charging (IC) pod is plugged
in and powered on without being attached to the
foot, the charging LED on the IC pod will switch ON
(steady).
To charge the foot, attach the IC pod to the foot.
The charging indicator LED on the foot is located on
the right hand side of foot.
938438
938439
IC

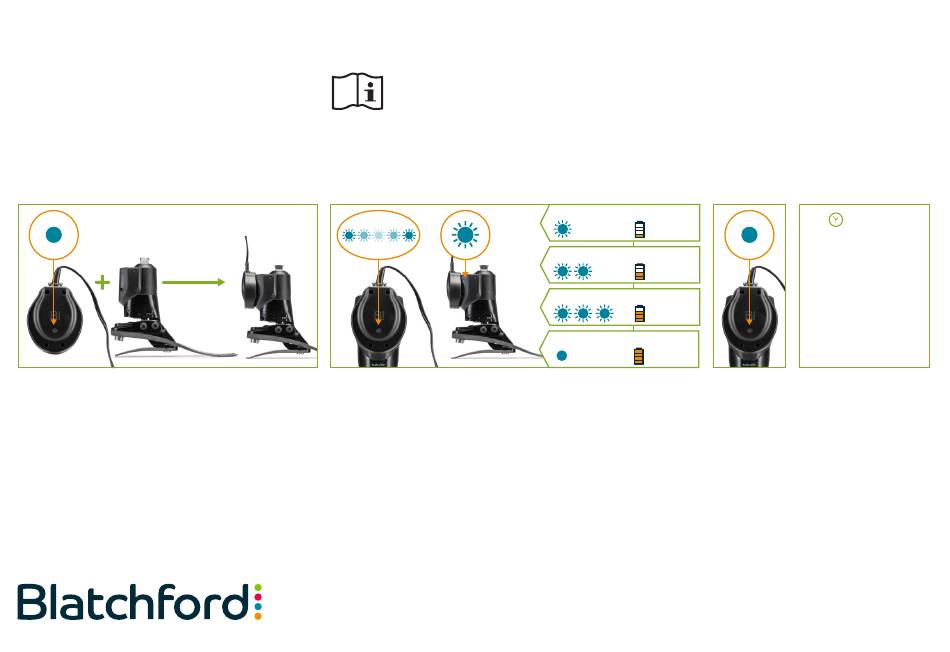

When the IC pod is attached to the foot and being charged, the
IC pod LED light will pulsate slowly between ON and OFF and
the charging LED on the foot will indicate charging status of
the battery by flashing repeatedly – refer to diagrams.
Note... If, after attaching the IC pod to the foot, the light on the
foot stays ON (steady) the battery is fully charged.
Detach the IC pod.
Note... If the light on the IC pod or foot flashes vigorously, the
charging is paused due to unit getting warm. Charging will
automatically resume when cool.
1 flash = battery low
2 flashes = battery medium
3 flashes = battery nearly full
ON steady = battery fully charged
1
EN ............. 1
EN
FR ............. 3
DE ............. 5
IT ............... 7
ES ............. 9
NO .......... 11
RU ........... 13
PL ........... 15
PT ........... 17
ZH ........... 19
AR ........... 21
6 hours +
After 6 hrs charging
IC Pod stops charging
and ElanIC starts
operating immediately
under battery power.
Detach IC Pod from foot.
ElanIC is ready to use.
After 6 hours
The ElanIC will start
operation the
consuming battery
IC pod stops
charge immediately,
charging.
whether in use or not.
The IC pod LED
Note... If the ElanIC
stops pulsating
is not used after
and changes to
being charged, the
ON (steady) and
battery will begin to
the charging
discharge gradually.
LED on the foot
After an extended
switches OFF.
period without use the
battery will discharge
Remove IC pod.
completely, and will
(Leaving attached
need to be recharged
adds no futher
again.
charge.)
