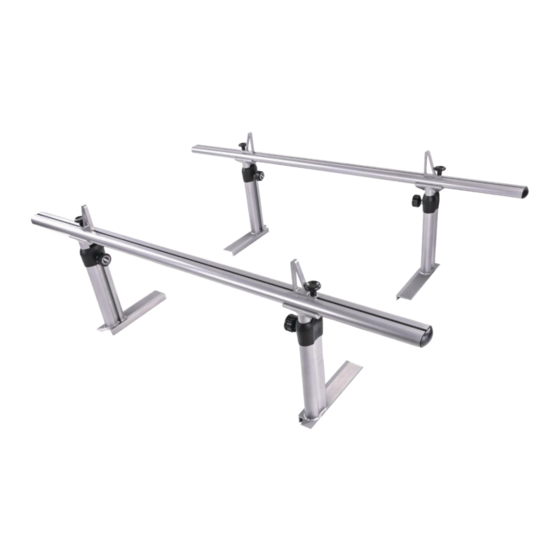

- Page 1 WWW.AAPRODUCTSINC.COM INSTRUCTION MANUAL APX2501 ( BLK / WHT / SLV ) Height-Adjustable Aluminum Pick-Up Truck Ladder Rack ( No drilling required )
- Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 ART LIST 2BAR PART# DESCRIPTION 1BAR ITEMS Upright (left) Upright (right) Cross-Bar Tubular-Cab Tie-down Plastic Adjust-Knob Rubber Sealing Strip C-Clamp Rubber Gasket T-Bolt M8*25 Lock Nut M8 Washer Spring Washer M8...
- Page 4 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 NSTALLATION DIAGRAM TEP 1 Slide 4 of the T-Bolts M8 * 25( J ) into the Cross-Bar’ s( C ) slot. Flip both the Uprights( A & B ) and connect the bolts with Washers( L ) &...
- Page 5 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 2 Clean bedrails. Position Rubber Gaskets( I ) and entire front Cross-Bar assembly on bedrails as close to cab as possible. Carefully align Rubber Gaskets under Cross-Bar bases. (TIP: Mount location is different for each bed design and may require adjustment to avoid interference with hardware mounting.) Install the front rack set on the truck bed with Clamps( H ) ( two for each Upright ).
- Page 6 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 4 Slide the Tie-down ( E ) ( two for each bar ) into the Cross-Bar’ s slot with 2 T-bolts M8 * 25( J ) follow-by; connect with Washers( L ) & Spring Washers( M ) & Plastic Adjust-Knob( F ). Tighten knob firmly to set Tie-down position.( Installation of the Tie-down is optional for customers’...
- Page 7 AA PRODUCTS INC™ WARRANTY AA Products Inc™ will warranty all truck and van products for the life of the product, and all accessories for a period of one years from the date of purchase. Subject to the limitations and exclusions described in this warranty, AA Products Inc™ will remedy defects in the structural integrity of the product related to materials or workmanship by repairing or replacing, at its discretion, a defective product without charge for parts or labor.
- Page 8 AAPRODUCTS INC. WARNING E-mail This product can expose you to chemicals including Lead, service@aaproductsinc.com Scan the QR code to Benzene, etc., which are known to the State of California to reach our Customer Call US Toll Free cause cancer or birth defects or other reproductive harm. For 1-888-806-3972 / 626-332-4245 Help Page: more information, visit www.P65warnings.ca.gov...
