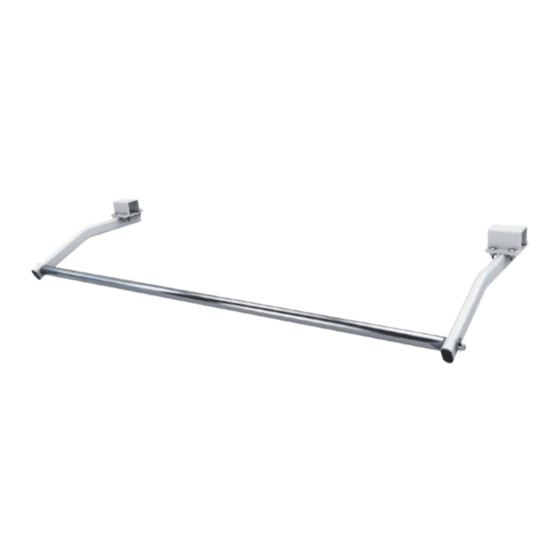

- Page 1 WWW.AAPRODUCTSINC.COM INSTRUCTION MANUAL P27-R / RX27 / RX27-T ( WHT & BLK ) MODEL NUMBER: P27-R MODEL NUMBER: RX27 MODEL NUMBER: RX27-T...
- Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 PART# P27-R RX27 RX27-T ITEMS Ladder Guide Ladder Stopper Carriage Bolt M8*60 Carriage Bolt M8*25 Bolt M8*25 Knob Washer Washer-Big Mounting Base Rubber Blanket Clamp Rubber Blanket Adjustable Hex-Nut Support Arm Support Arm Bracket Rear Roller Cross-Bar...
- Page 4 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 NSTALLATION DIAGRAM Installation Direction Of Rain-Gutter Roof Rack TEP 1 The front & rear bar installation Mounting Base & Cross-Bar & Adjustable Hex-Nut TIP: DO NOT tighten the Adjustable Hex-Nut Middle-bar installation ( RX27-T ) Middle Mounting Base &...
- Page 5 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 2 Install Rubber Blanket to protect the roof. Use a ladder or any assistance tools, put the assembled rack set onto the vehicle’s roof. Be careful! Install the assembled rack set on the roof ( TIP : For Three-Bar, please begin with the front and rear Mounting Base set for the better stability of the system.) Bolt M8*25 &...
- Page 6 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 4 For Three-Bar set assembly. Using tape measure, adjust the middle The middle bar bar to parallel the front and rear bar. Tighten all the screws Adjust the height Installation Direction Of Rear Cargo Roller TEP 1...
- Page 7 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 2 Carriage Bolt M8*25 & Washer-Small & Support Arm Bracket SSEMBLY COMPLETION...
- Page 8 AA Products Inc™ will remedy defects in the structural integrity of the product related to materials or workmanship by repairing or replacing, at its discretion, a defective product without charge for parts or labor. In addition, AA Products Inc™ may elect, at its discretion, not to repair or replace a defective product but rather to issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new AA Products Inc™ product.
