- Page 1 WWW.AAPRODUCTSINC.COM INSTRUCTION MANUAL Model Number: APX2503 Extendable Aluminum Low Profile Truck Bed Rack...

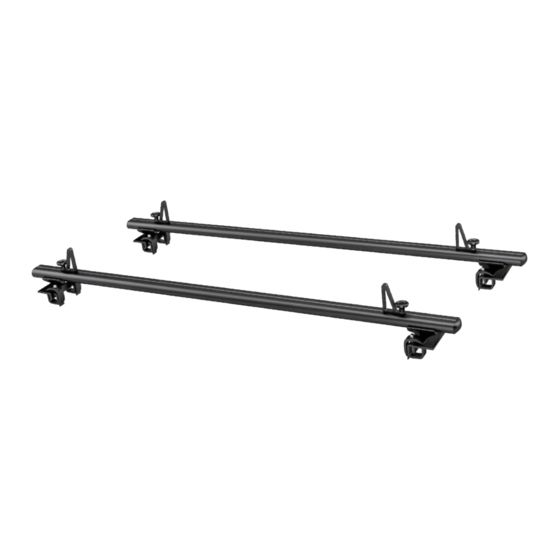

- Page 2 Model Number: APX2503 Extendable Aluminum Low Profile Truck Bed Rack The APX2503 is a Low-profile utility rack built for the purpose of Carry bikes, skis, cargo boxes or the Rooftop Tent all while preserving valuable cooler-carrying capacity underneath. This pairs low profile racks delivers a 300-lb. on-road capacity and Off-Road Rating for up to 180 lbs. all without the need to drill into the truck bed.
- Page 3 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 ART LIST Upright Pole - L QTY: 2 Clamp QTY: 8 Upright Pole - R QTY: 2 Rubber Gasket QTY: 4 T-Bolt M8*25 QTY: 12 Cross-Bar QTY: 2 Tubular-Cab QTY: 4 Lock Nut M8 QTY: 8...
- Page 4 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 NSTALLATION DIAGRAM TEP 1 Lock Nut M8 & Washer Upright Pole T-Bolt M8*25 T-Bolt M8*25 TEP 2 Tighten knob firmly to set Plastic Adjust-Knob & Tie-down position. Spring Washer &...
- Page 5 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 4 Make sure both uprights aligned then tighten all the bolts for security. TEP 5 Insert the Rubber Sealing Strip into the Cross-Bar‘s Lower Insert the Rubber Sealing Strip into the Cross-Bar‘s Upper & Lower channel to reduce wind-noise.
- Page 6 AA Products Inc™ Customer Service Representative will provide mailing address and any additional instructions. Please note that the purchaser will be responsible for the cost of mailing the product to AA Products Inc™ and that proof of purchase in the form of an original purchase invoice or receipt and a detailed description of the defect must be included in the mailing. ...
