Page 1: Instruction Manual

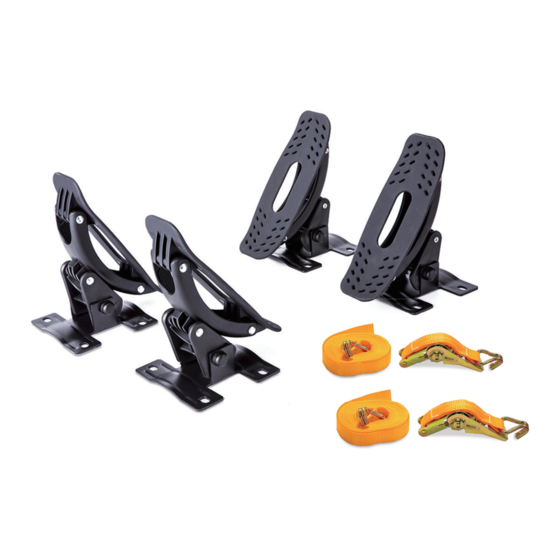

WWW.AAPRODUCTSINC.COM Instruction Manual Universal Steel Jetty Saddle Rack For Kayak Carrier MODEL NUMBER: KX405 / KX415 /KX485 / KX4125 / KX4125-TA... - Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 ART LIST KX415 KX485 PART# KX405 ITEMS KX4125 KX4125-TA Cradle Bracket Sponge Gasket Carriage Bolt Nylock Nut RS-501Rachet Strap RR-314 Ratchet Rope...
- Page 4 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 NSTALLATION DIAGRAM Installation Direction Of Kayak Rack TEP 1 Adjust the Cradle to the appropriate position. Find four Non-threaded holes on the Cradle, set two Sponge Gaskets under the Cradle to align holes on both side, then put four Carriage Bolts through the holes.
- Page 5 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 TRUCK CROSSBAR The Installation Direction Of KX485 / KX4125 / KX4125-TA Sponge Gasket & Bracket & Nylock Nut Installation Direction Of Rachet Strap TEP 1 Load the watercraft onto the cradles. It may be necessary to readjust the position to ensure...
- Page 6 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 TEP 2 Straps should always pass under the crossbar and loop the straps under the crossbar as below. RS-501Rachet Strap TEP 3 TO TIGHTEN: Fasten the hooks either side of your vehicle or trailer and insert strap into the spindle slot.Pull strap through and up and back to take up...
- Page 7 AA PRODUCTS INC™ WARRANTY AA Products Inc™ will warranty all truck and van products for the life of the product, and all accessories for a period of one years from the date of purchase. Subject to the limitations and exclusions described in this warranty, AA Products Inc™ will remedy defects in the structural integrity of the product related to materials or workmanship by repairing or replacing, at its discretion, a defective product without charge for parts or labor.
- Page 8 WARNING Contact us : Service@aaproductsinc.com etc., which are known to the State of California to cause cancer or Toll Free:1-888-806-3972 birth defects or other reproductive harm. For more information, visit 626-332-4245 www.P65warnings.ca.gov...
