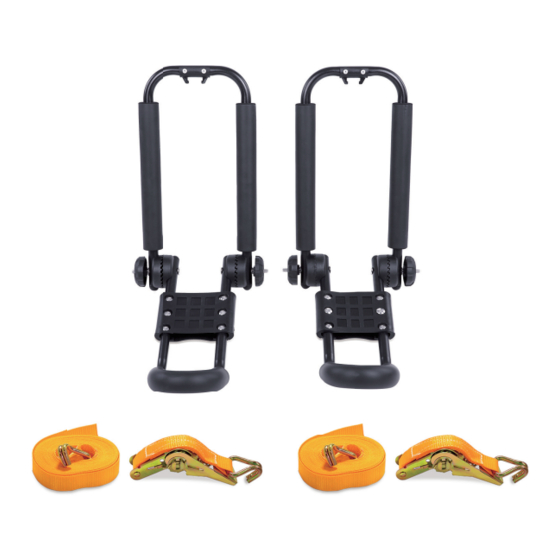

- Page 1 WWW.AAPRODUCTSINC.COM Instruction Manual Universal Steel Folding J-Bar Rack for Kayak Carrier MODEL NUMBER: KX105 / KX115 /KX145 / KX165 / KX165-TA KX125 /KX135 / KX155 / KX175 / KX175-TA...
- Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 ART LIST KX135 KX115 KX155 KX145 KX105 KX125 ITEMS PART# KX175 KX165 KX175-TA KX165-TA Cradle Bracket Sponge Gasket Carriage Bolt Nylock Nut Washer RS-501Rachet Strap RR-314 Ratchet Rope Wrench...
- Page 4 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 NSTALLATION DIAGRAM Installation Direction Of Kayak Rack TEP 1 Find two Non-threaded holes on middle of the Cradle, set one Sponge Gasket under the Cradle to align holes on both side, put two Carriage Bolts through and tighten with Nut & Washer. Sponge Gasket &...
- Page 5 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 TRUCK CROSSBAR The Installation Direction Of KX145 / KX155 / KX165 / KX165-TA / KX175 / KX175-TA Sponge Gasket & Bracket & Nylock Nut Installation Direction Of Rachet Strap TEP 1 Lift Watercraft onto the carrier.
- Page 6 NSTRUCTION MANUAL AAPRODUCTSINC For Technical Support Call:1-888-806-3972 / 626-332-4245 TEP 2 RS-501Rachet Strap TEP 3 TO TIGHTEN: Fasten the hooks either side of your vehicle or trailer and insert strap into the spindle slot.Pull strap through and up and back to take up slack.
- Page 7 AA PRODUCTS INC™ WARRANTY AA Products Inc™ will warranty all truck and van products for the life of the product, and all accessories for a period of one years from the date of purchase. Subject to the limitations and exclusions described in this warranty, AA Products Inc™ will remedy defects in the structural integrity of the product related to materials or workmanship by repairing or replacing, at its discretion, a defective product without charge for parts or labor.
- Page 8 WARNING Contact us : Service@aaproductsinc.com etc., which are known to the State of California to cause cancer or Toll Free:1-888-806-3972 birth defects or other reproductive harm. For more information, visit 626-332-4245 www.P65warnings.ca.gov...
