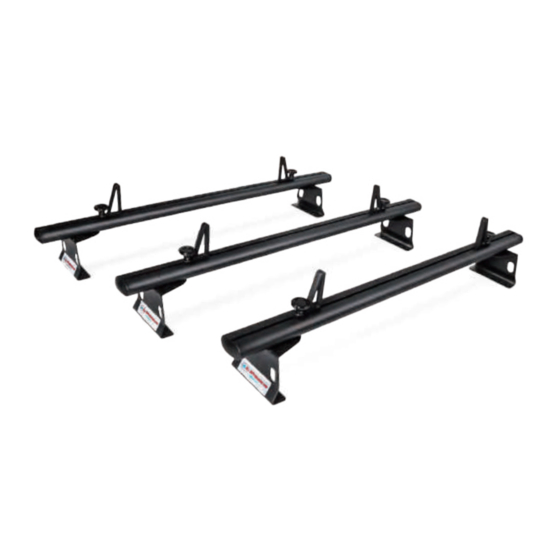

- Page 1 WWW.AAPRODUCTSINC.COM INSTRUCTION MANUAL Aluminum Van Roof Rack With Ladder Stopper MODEL: AX312 SERIES ( WHITE / BLACK ) MODEL: AX302 SERIES ( WHITE / BLACK )
- Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 ( Use for Chevy City Express & Nissan NV200 Series Vans & Ford Transit Series Vans(Transit-Connect) ) PART# 1 BAR 2 BAR 3 BAR ITEMS Mounting Base Mounting Base-Lower (Middle-Bar Only) Cross-Bar Tubular-Cap Tie Down...
- Page 4 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 ( Use for Mercedes Benz Metris Series Vans & Dodge Ram Promaster City Series Vans ) PART# 1 BAR 2 BAR 3 BAR ITEMS Mounting Base Mounting Base-Lower (Middle-Bar Only) Cross-Bar Tubular-Cap Tie Down Plastic Adjust-Knob...
- Page 5 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 ( Use for Dodge Ram Promaster Full-size Cargo Van Series Vans & Ford Transit Cargo Van Series Vans) PART# 1 BAR 2 BAR 3 BAR 4 BAR ITEMS Mounting Base Cross-Bar Tubular-Cap Tie Down Plastic Adjust-Knob...
- Page 6 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 ( Use for Nissan NV1500/ 2500/ 3500 Series Vans ) PART# 1 BAR 2 BAR 3 BAR 4 BAR ITEMS Mounting Base Cross-Bar Tubular-Cap Tie Down Plastic Adjust-Knob Rubber Sealing Strip Nut-Clip Bolt M8*20 T-Bolt M8*25...
-
Page 7: Front Bar
NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 TEP 2 Slide the Tie Down ( two for each bar ) into the Cross-Bar’s slot with 2 T-Bolts M8*25 follow-by, then tighten with a Plastic Adjust-Knob, Washer M8 & Spring Washer M8. ( Installation of the ladder stoppers is optional for customers’... - Page 8 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 Installation Onto Van ( Find type of vehicle install instructions below) CHEVY CITY EXPRESS & NISSAN NV200 TEP 1 Use the proper tool, take off the cover on the roof top to locate the M8 threaded hole. Place a Rubber Seal for each hole. Installing the Base Bracket: Put two Carriage Bolts M8*30 on the Base Bracket upside down.
- Page 9 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 FORD TRANSIT CONNECT TEP 1 Use the proper tool, take off the cover on the roof top to locate a hole (thread / non-thread). Place a Rubber Seal for each hole. Set position for the Adapter Base: Connect the Base Bracket, Adapter Base and the Mounting Base with two Carriage Bolts M8*30 upside down, tighten with Nuts &...
- Page 10 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 MERCEDES BENZ METRIS TEP 1 Find the threaded holes on the roof. They are a pair of M6 threaded holes on each corner. Take out the covers ( if any ). Optional: Put a Rubber Seal on each hole to improve sealing.
- Page 11 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 DODGE RAM PROMASTER CITY or Two-Bar Set Assembly ( Ideally speaking, set the bars onto the very front & very rear anchor-point of van roof ) Find the threaded holes on the roof. They are a pair of M6 threaded holes on each corner. Take out the covers (if any). Optional: Put a Rubber Seal on each hole to improve sealing.
- Page 12 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 DODGE RAM PROMASTER FULL-SIZE CARGO VAN TEP 1 Find the T-shaped Bolt ( T-shaped Mechanism comes OEM standard ) on the vehicle’ s roof top. Installing the Base Bracket: Put two Carriage Bolts M8*30 on the Base Bracket upside down. Then slide the Adapter Bracket underneath the T-shaped Bolt.( See FIG 12 ) FIG 12...
- Page 13 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 FORD TRANSIT CARGO TEP 1 Use the proper tool, take off the cover on the roof top to locate the M8 threaded hole. Place a Rubber Seal for each hole. Installing the Base Bracket: Put two Carriage Bolts M8*30 on the Base Bracket upside down. Align the middle hole to the vehicle’...
- Page 14 NSTRUCTION MANUAL NSTRUCTION MANUAL AAPRODUCTS INC. AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 For Technical Support Call:1-888-806-3972 626-332-4245 626-332-4245 NISSAN NV1500/ 2500/ 3500 TEP 1 Insert two Nut-Clip to the Roof Bracket ( the U-shaped bracket ). Align both side-holes of the Mounting Base to the Nut-Clips pre-thread holes.
- Page 15 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806-3972 626-332-4245 CCESSDRIES FOR OPTIONAL UPGRADES MODEL NO: CCK-400 / CCK-600 / CCK-800 Universal Conduit Carrier Kit( NO Drilling Required ) COLOR Black Silver MATERIAL Cast Aluminum door and end cap; Stainless Steel hardware FITMENT 4"...
-
Page 16: Disclaimer Of Liability
This warranty is expressly made in lieu of any and all other warranties, express or implied, including the warranties of merchantability and fitness for a particular purpose. AA Products Inc™’s sole liability to any purchaser is limited to the remedy set forth above. In no event will AA Products Inc™ be liable for any lost profits, lost sales, or for any consequential, direct, indirect, incidental, special, exemplary, or punitive damages or for any other damages of any kind or nature.
