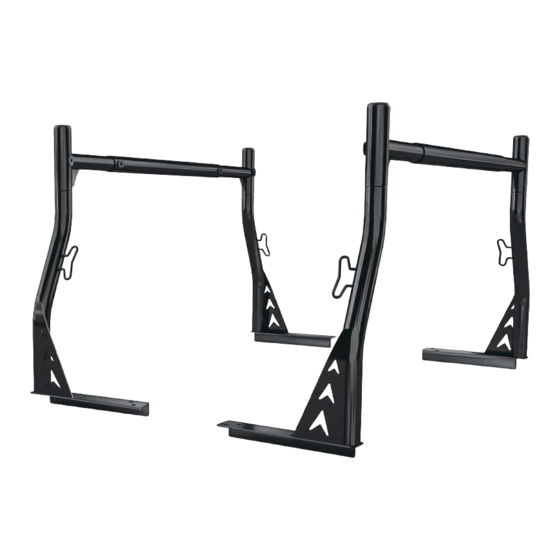

- Page 1 WWW.AAPRODUCTSINC.COM INSTRUCTION MANUAL X33-A / X33 / X33 + 8CLAMP TRUCK RACK ( BLK & WHT )
- Page 2 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or death occurred while using any AA-Racks products. Retain these instructions for future reference.
- Page 3 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 ART LIST X33+8CLAMP PART# X33-A (1 BAR) X33 (2 BAR) ITEMS (2 BAR+8CLAMP) Upright Pole ( R ) Upright Pole ( L ) Middle Cross-Bar T-Bar ( R ) T-Bar ( L ) T-bar Cap Adjustable Hex-Nut...
- Page 4 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 NSTALLATION DIAGRAM Assembling The Rack Adjustable Hex-Nut Adjustable Hex-Nut NOTE: DO NOT tighten any hex-nuts on the T-bars. Mounting Installations 1. DIRECT BOLT-ON INSTALLATION (FOR MODEL: X33-A / X33): (Proper uses of Tools are required for installation) TEP 1 Mark as needed Bed-rail...
- Page 5 NSTRUCTION MANUAL AAPRODUCTS INC. For Technical Support Call:1-888-806- 3972 / 626-332-4245 TEP 3 SSEMBLY COMPLETION Check all mounting hardware to insure tightness, tighten all the nuts to secure installation. You are now done! 2. C-CLAMP MOUNTING INSTALLATION (FOR MODEL: X33+8CLAMP): (The C-Clamps installation might be limited due to different bed-rail structures varied from different Make &...
- Page 6 AA Products Inc™ will remedy defects in the structural integrity of the product related to materials or workmanship by repairing or replacing, at its discretion, a defective product without charge for parts or labor. In addition, AA Products Inc™ may elect, at its discretion, not to repair or replace a defective product but rather to issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new AA Products Inc™ product.
