AA Products P-APX25-RO Instruction Manual

MODEL NO: P-APX25-RO
AAPRODUCTS INC.
W
ARNING!
Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in
property damage, serious bodily injury, and/or death. AA Products Inc. is not responsible for any property damage, personal injury, or
death occurred while using any AA-Racks products. Retain these instructions for future reference.
Any modification or unintended use of this product voids any warranty and could create a hazardous condition.
Loads must be secure according to local height and deification regulations and or laws.
Secured loads and connections must be re-checked periodically for tightness.
In order to prevent installation problems, any consultation or use of certified installer or installation service company is recommended.
F
EATURES

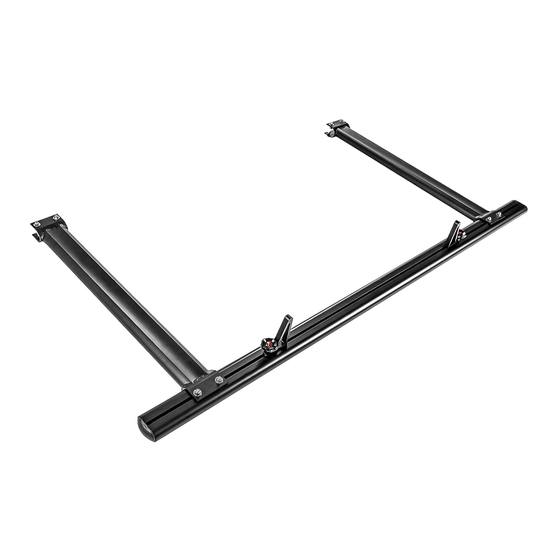

The P-APX25-RO is used in the APX25. It saves you the hassle of loading heavy bulky items onto the truck rack
and makes the loading more securer and faster.
P
ART LIST
NO ITEMS
1
2
3
I

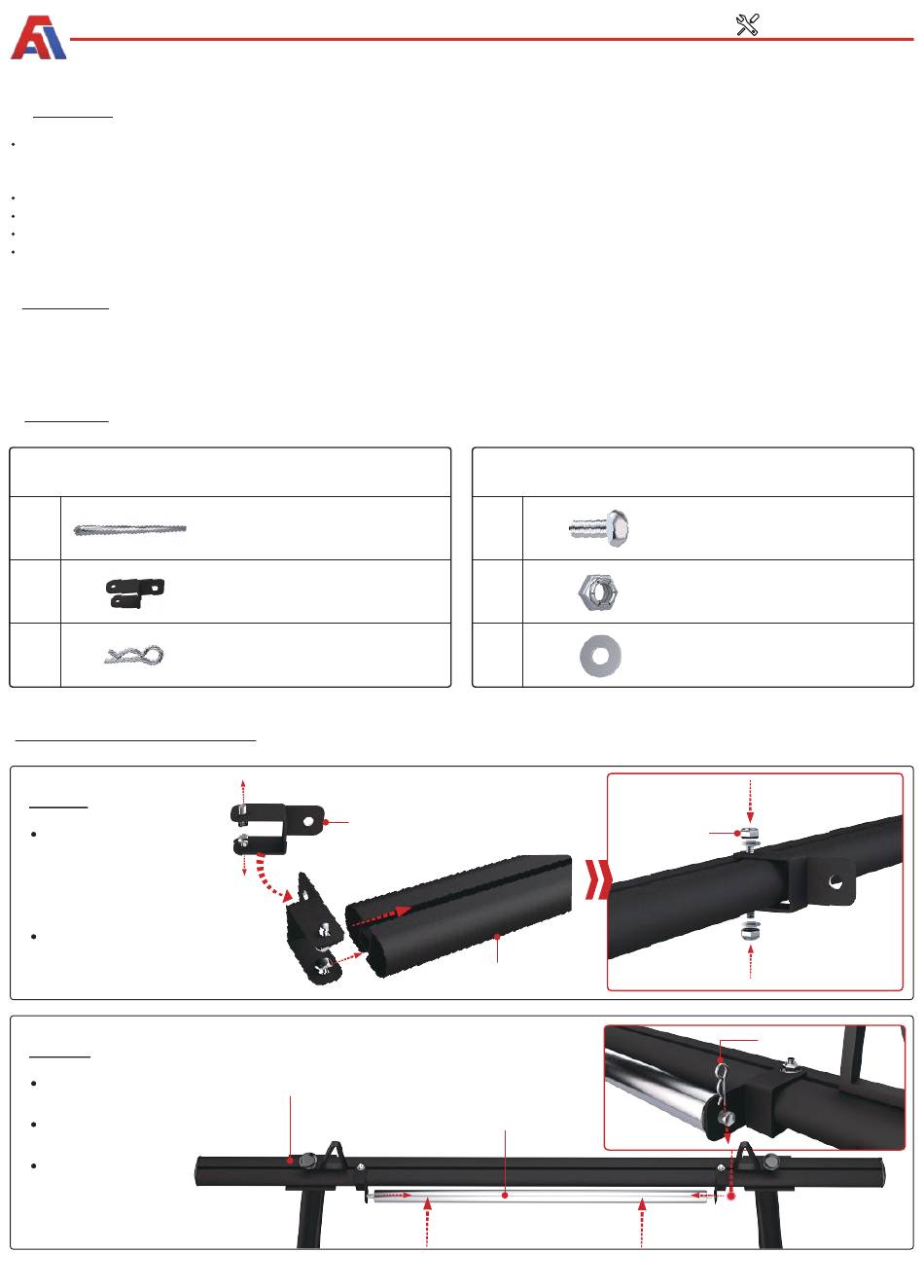

NSTALLATION DRAWINGS
S
TEP 1
Connect the Support Bracket with
the T-Bolts, Remember to slide the
Support Bracket onto the cross bar
before connecting the uprights, and
then install the ladder stoppers at last.
Connect T-bolts with washers &
Nut. Note： DO NOT tighten the nuts
during this process.
S
TEP 2
Connet Support Bracket & Rear
Roller Cross-Bar.
Set two Safety Pin insert into holes
both on Rear Roller Cross-Bar.
Tighten all the Nuts
NAME QTY
Rear Cross-Bar 1
Support Bracket 2
Safety Pin 2
Support Bracket
& T- Bolt M8 * 25
Rear Rack of APX25
NO ITEMS
4
5
6
Crossbar of APX25
Rear Cross-Bar
I
NSTRUCTION MANUAL
For Technical Support Call:1-888-806- 3972 / 626-332-4245
NAME
T-Bolt M8 * 25
Nut
Washer
Nut & Washer
* DO NOT tighten
the nuts during
this process.
Safety Pin
QTY
4
4
4
