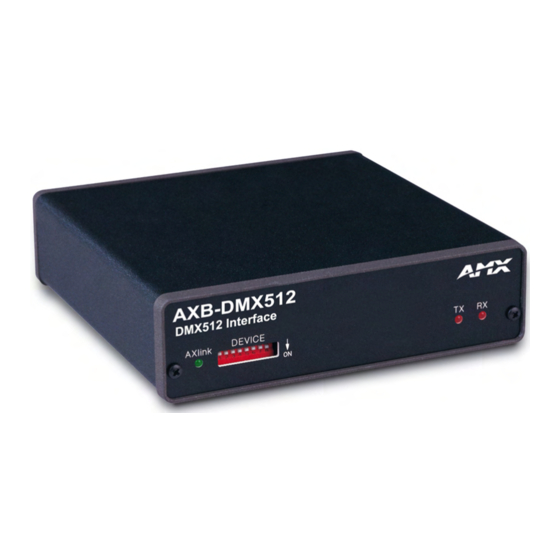

AMX AXB-DMX512 Specifications

dmx512 interface
The AXB-DMX512 Interface acts as an intelligent bi-directional DMX512 to
AXLink interface, transmitting and receiving up to 512 DMX channels for
lighting dimmers, spotlights, and other DMX control applications.
An intelligent interface, the AXB-DMX512 contains onboard processing
and memory. DMX channels can be grouped, soft-patched, or assigned to
a fader. Up to 72 presets (284 presets with added memory) can be stored
and recalled from internal memory.
A DMX lighting board can operate in tandem with the AXB-DMX512,
generate levels for storing internal presets, or bypass the interface for
direct control of channels. The board's channel commands will not be
affected by AXB-DMX512 channel patches or groupings.
The AXB-DMX512 can be extended up to 3,000 feet using the AXLink
data/power bus. The optional AC-RK Accesory Rack Kit is available for
rack mounting.
