SYNERGY DOUBLE-WIDTH SHELF - SA/DS

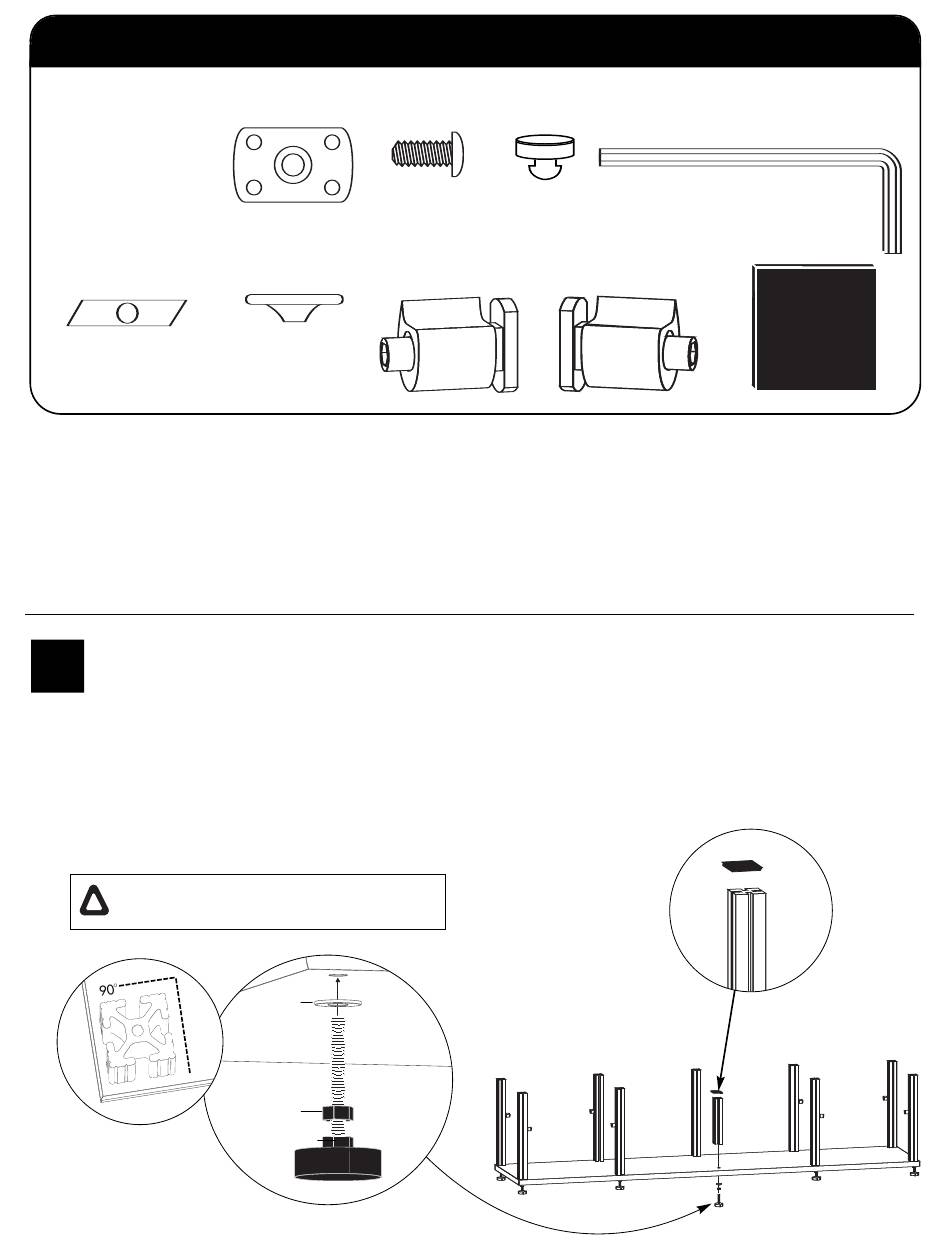

Parts
1 - Center Post
1 - Double-Width Shelf
4x
(300-565)
Drop In Nuts
Installing the Double-Width Shelf to Assembled Units
Removing Top (Recommended):
Remove top connector bolts and set aside for step 5.
1
Connect Post to Bottom Shelf
A
.
Connect Post
Install short post front and center. Square the
post to the bottom shelf and screw foot with
metal washer through to the extruded post.
Hand tighten fully and use wrench to tighten
nut onto underside of shelf.
WARNING:
!
!
Tighten by screwing the leveler foot NOT the post.
©2005 Salamander Designs Ltd..
4x
4x
(300-490)
Low Head Screw
(300-560) - Flat Nut
2x
1x
(301-280)
Plastic Cap Plug
Washer
Hex Nut
Leveler Foot
4x
(300-610)
Shelf Tabs
(PHK-370)
(PHK-380)
1x
Shelf Peg "B"
Shelf Peg "A"
Without Removing Top:
Remove center connector bolt and loosen all other top bolts.
Unscrew the foot below the center post and CAREFULLY
remove the post.
Use the Drop-In Nuts in place of the Flat-Nuts in step 2.
B
.
Post Cover
Press post cover onto the center post to protect the center shelf.
Hardware Bag - PHK-510
1x
1/8" Hex Key (400-070)
1x
(300-265)
Post End Cap
Doc# 500-950 / v6.05 / 1 of 2
