SDAV7 6629
Assembly Instructions
Tools Required
Parts
1
1 - Left
Adjustable Shelf
SDAV7_6629 10/14

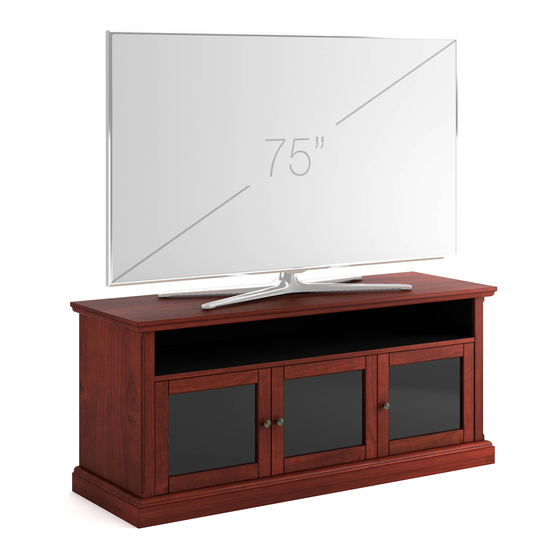

Thank you for purchasing the SDAV7 6629 audio/video cabinet.
Unpack the contents and check to ensure that all of the parts are in proper
condition. To help protect the environment, use the appropriate recycling
and discarding methods for the packaging items.
Assemble this item on a soft surface, such as carpet, to protect the finish.
2
1 - Middle
1 - Right
Adjustable Shelf
Adjustable Shelf
3
4
3 - Rear Panels
5
12 - Shelf Pins
page 1 of 4
Advertisement
Related Manuals for Salamander Designs SDAV7 6629
Summary of Contents for Salamander Designs SDAV7 6629
- Page 1 SDAV7 6629 Assembly Instructions Tools Required Thank you for purchasing the SDAV7 6629 audio/video cabinet. Unpack the contents and check to ensure that all of the parts are in proper condition. To help protect the environment, use the appropriate recycling and discarding methods for the packaging items.
- Page 2 Level Cabinet (4 Locations) Install Middle Shelf Install shelf pins by screwing into the threaded inserts inside of cabinet. SDAV7_6629 10/14...
- Page 3 Install Left & Right Shelves Install shelf pins by screwing into the threaded inserts inside of cabinet. Install Rear Panels SDAV7_6629 10/14...
- Page 4 Install Middle Rear Panel SDAV7_6629 10/14...
- Page 5 Door Front SALAMANDER DESIGNS LIMITED WARRANTY Salamander Designs Ltd. (Salamander) provides the following Limited Warranty. The Limited Warranties herein described for the specific products listed below shall be in lieu of any other warranty, expressed or implied, including but not limited to any implied warranty of merchantability or fitness for a particular use. These Limited Warranties do not cover damages incurred in shipment, failures caused by other products not supplied by Salamander, or failures due to accident, misuse, abuse or alteration of the product.
