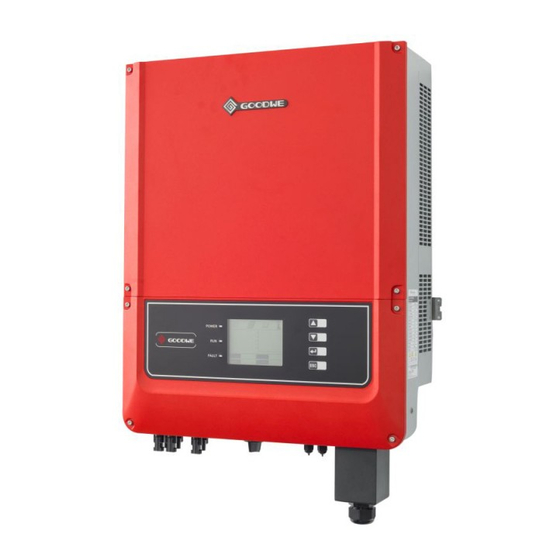

Brand:
GoodWe
Type:
Solar On Grid String Inverter
Models:
GW09K-DT, GW10K-DT, GW12K-DT, GW15K-DT, GW17K-DT, GW20K-DT, GW25K-DT

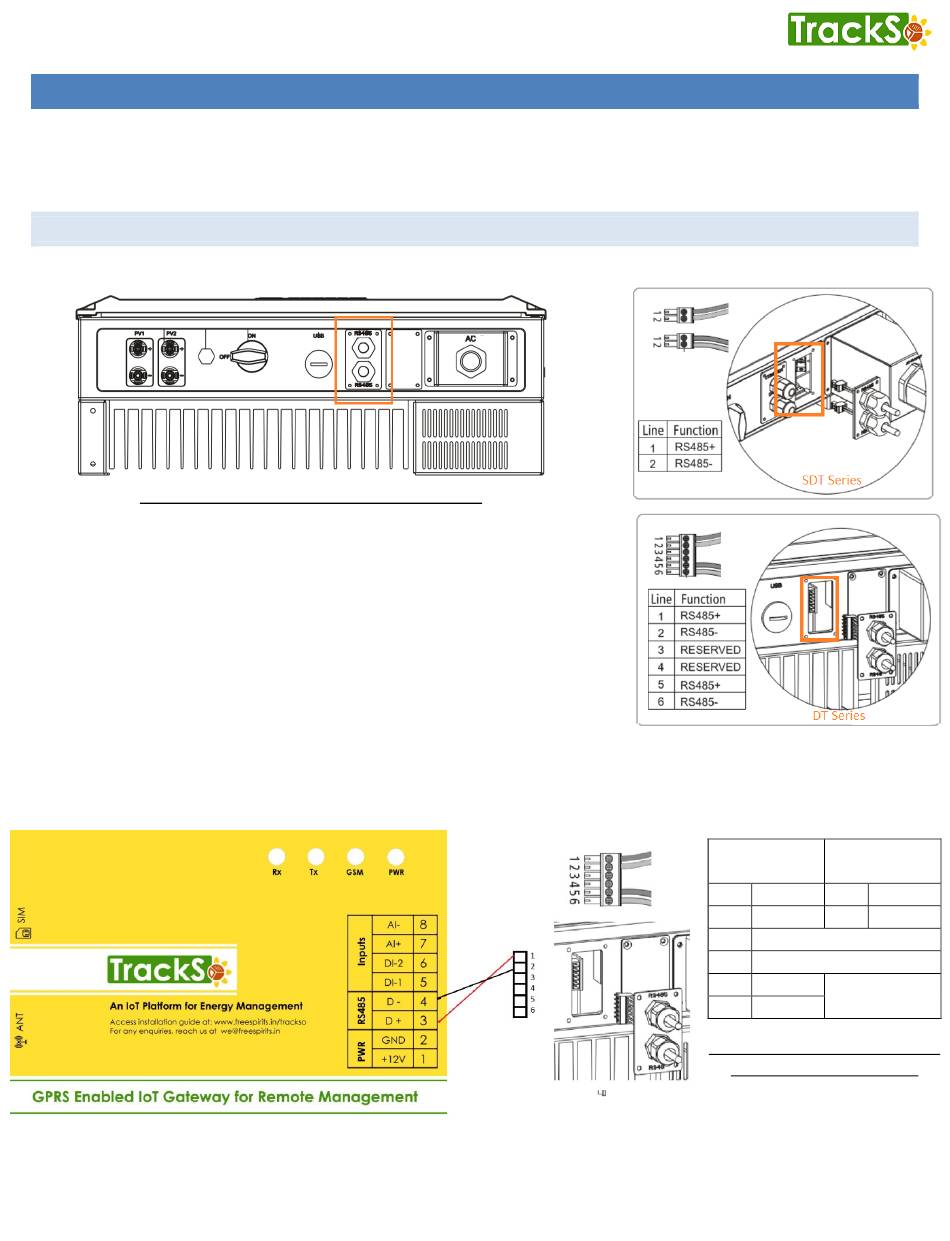

CONNECTION DIAGRAM
Figure D1 – GoodWe Sring Inverter Connections
Connection Steps:
1. Please unscrew the RS485 terminal as shown in Figure D1.
2. Please make the connections from the Terminal Block of Goodwe RS485
chipt to TrackSo IoT Gateway as mentioned in the Table – T1.
3. Please provide 12V external supply to TrackSo IoT Gateway via 12V, 2A DC
adaptor provided in the package.
4. The RS485 cables should be kept separate from the AC cable and the DC
cables to avoid interferences.
Note: Please insure to carry 2PIN/6PIN Terminal supplied with inverters.
The second pair (5/6) is used to connect multiple inverters via RS485.
TRACKSO INSTALLATION GUIDE FOR GOODWE INVERTER
GoodWe Pin
TrackSo Pin
Assignment
Assignment
1
RS485+
3
RS485+
2
RS485-
4
RS485-
3
NA
4
NA
5
RS485+ Used for
Daisy Chain
6
RS485-
Table T1 – GoodWe connections
with TrackSo IoT Gateway
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Goodwe GW09K-DT
Summary of Contents for Goodwe GW09K-DT
- Page 1 Connection Steps: 1. Please unscrew the RS485 terminal as shown in Figure D1. 2. Please make the connections from the Terminal Block of Goodwe RS485 chipt to TrackSo IoT Gateway as mentioned in the Table – T1. 3. Please provide 12V external supply to TrackSo IoT Gateway via 12V, 2A DC adaptor provided in the package.
- Page 2 Data Bits: 8 , Stop Bit: 1 , Parity: None CONFIGURATION AT THE INVERTER END SETTING THE BAUD RATE Default Baud rate for GoodWe Inverters is 9600bps. SETTING THE INVERTER ID Set correct Inverter Ids The inverter ID is used to identify the inverter in a RS485 connection ...
- Page 3 Please put ON the dip switch (The default if OFF) Multiple Inverters Please put ON the dip Switch in the last Inverter ( The default is OFF) The above details are mentioned in the Installation & Operation Manual for GoodWe Inverters.
- Page 4 TRACKSO WORKING 1. Insure correct connections as detailed in the installation guide. 2. Insert the SIM card. 3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required) 4. Power LED (Red) of TrackSo IoT gateway glows and stays ON. NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the installed location.
- Page 5 5. To check the exact network status send the following message to mobile number of the device SMS Command= *2222#<Stat.gsm> IMEI IMEI No. of the data logger (Device Key) Network SIGN Signal Strength out of 31 GPRS CONT- connected , NC- not connected Connected to TrackSo Server or not CONT- connected, NC- not connected no.
- Page 6 9. If the state remains Not receiveing for more than 10 minutes, click on your email ID at the top right of the screen and click on ‘Event Ingestion Logs’ in the dropdown. 10. Check if there is some log generated at the time of installation of the TrackSo IoT Gateway device. a.
