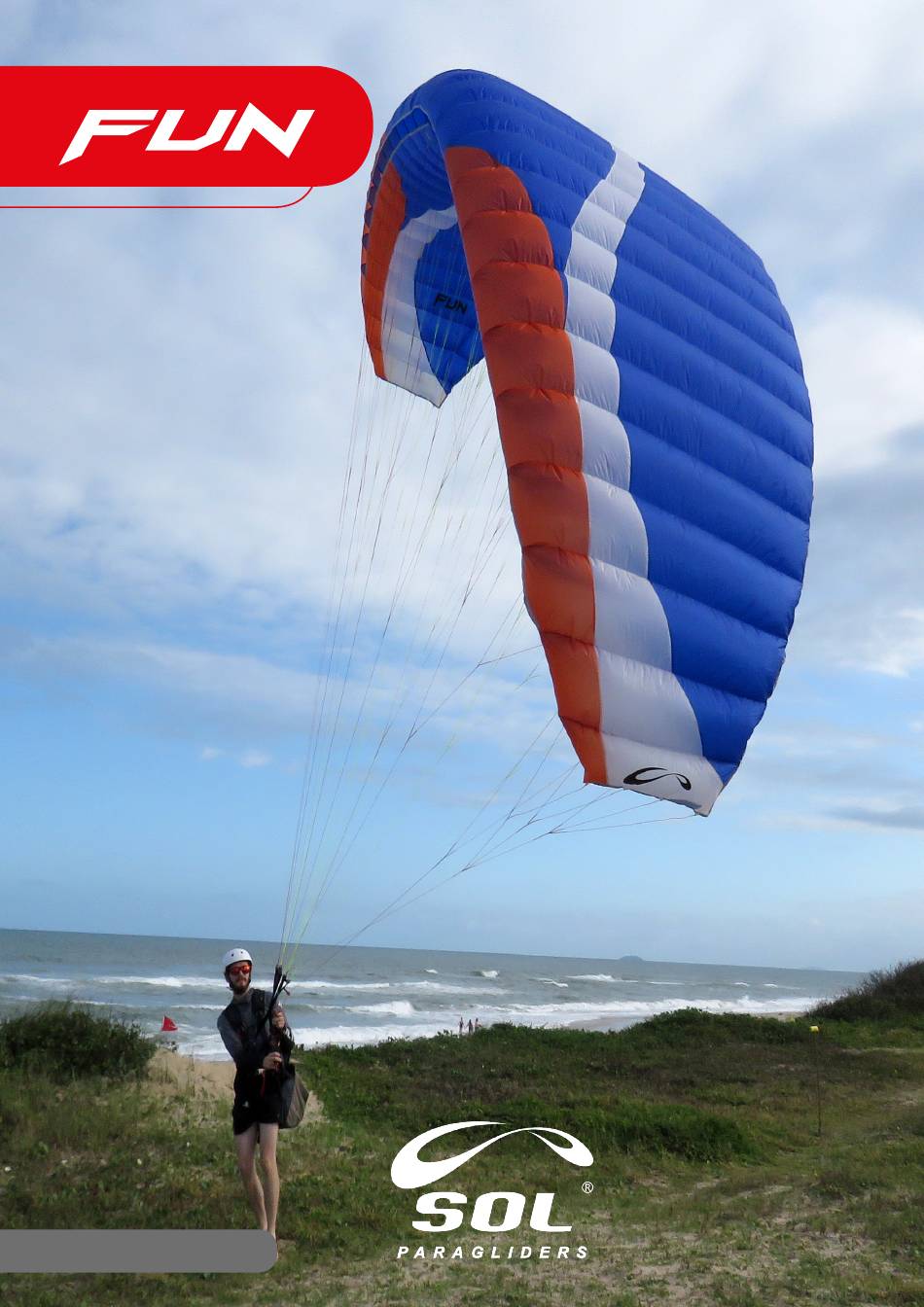

- Page 1 Manual Ground Handling version 2 05/2019...
-
Page 2: Table Of Contents
Sumario WELCOME TO THE SOL TEAM ..............4 Symbols ..................4 IMPORTANT NOTES ..................5 FUN - THE PROJECT ..................6 Recommendation ................6 Certification ................... 6 Special characteristics ..............6 Accessories ..................6 Technology ..................8 Overview Fun ................10 Overview risers ................ -
Page 3: Welcome To The Sol Team
- It’s not possible to transfer this responsibility of risks, using this equipment, to the We hope your FUN will provide you with many happy moments and that you’re producer, distributor or seller. experiencing moments that will last forever in your memory. This way our philosophy will proof right: security, performance, easy handling and innovation. -
Page 4: Fun - The Project
The FUN is an equipment for your training on the ground. It wasn’t made for flight. You alone are responsible for all risks that come with his use. The inappropriate and/ or abusive use of your equipment increases this risk. -
Page 5: Technology
Technology The 3 Riser System guarantees stability, 25% Fabrics composed out of different materials less lines, better weight distribution and less assure long life and more resistance with less deformation throughout the years. deformation and weight. Cutting edge technology laser equipments prepare all molds and parts of the canopy. -
Page 6: Overview Fun
Overview Fun Overview risers 1. Trailing edge 1. Riser A. 2. Top 2. Riser B. 3. Leading edge 3. Riser C. 4. Bottom 4. Brake lines. 5. Stabilo 5. Toggle connection. 6. Lines 6. Taggle. 7. Risers 7. Connection to harness. -
Page 7: Line Plan
Never and under no circumstances the line length can be altered! life. During all consideration and calculation, security always is our first goal.. The used material mix for the lines of the FUN forms an ideal combination: long life with little deformation and aerodynamic drag. -
Page 8: Packing
Step 1: Bundle up your FUN in form of a cabbage. This way you’re avoiding that the FUN drags over the ground during folding. -
Page 9: Storing
Whenever it is possible avoid to submit your FUN to the sun light, it has a high UV rate, especially in heights. It is recommended to store your FUN very well whilst it not in use. It should be stored dry in a dry place, protected from UV rays, distant from chemical products. -
Page 10: Tips For Care
- Handling the FUN on a earthy ground under strong wind conditions accelerates the aging process of your equipment. - After a water or tree landing the FUN must be sent for inspection to an authorized dealer’s workshop. - It must be avoided that sand, stones or snow enter in the cells, otherwise the weight on the trailing edge could brake the glider and cause a full-stall. -
Page 11: Warranty
Remember: nature is our FUN engine. Any alterations on original fabric colors, lines and risers. If your FUN gets out of use remember it cannot be recycled. Please give it to your Any damage caused by chemical products, sand, friction, cleaning products or salt dealer or your flying-school, they should know how to handle it. -
Page 12: Technical Data
TECHNICAL DATA Weight, measure and data Model Cells Real Suface 12,73 14,30 m² Real Span 7,78 8,25 Real A/R 4,75 4,75 Projected Surface 11,07 12,44 m² Projected Span 6,34 6,72 Projected A/R 3,63 3,63 Line diameter Dyneema PPSLS 0.7 - 1.0 - 1.2 - 1.6 Weigth Risers... -
Page 13: Parts And Materials
Parts and materials WTX 40 PU + Silicon 40 gr/sm Bottom WTX 36 PU + Silicon 36 gr/sm - WTX 40 PU + Silicon 40 gr/sm Profiles/Diagonal taps Pro-Nyl High Tenacity Nylon rip-stop Hard finish 36 gr/sm Reinforcements Nylon Maxfio 2,5 mm Reinforcements inside/outside Cetim Polyester 25mm Loops... -
Page 14: Line Lengths
Line lengths FUN 12 FUN 14 4786 4779 4789 4827 4916 5059 5052 5063 5107 5209 4893 4866 4892 4918 5171 5143 5172 5213 5019 4994 5025 4948 5304 5278 5317 5246 5066 5037 5080 4972 5353 5323 5375 5272... -
Page 15: Line Lengths Individually
Line lengths individually FUN 12 FUN 12 Name Line reference Diameter / mm Number of lines Lenght / mm Name Line reference Diameter / mm Number of lines Lenght / mm Liros PPSLS 125 1,05 Liros PPSLS 125 1,05 Liros PPSLS 125... - Page 16 FUN 14 FUN 14 Name Line reference Diameter / mm Number of lines Lenght / mm Name Line reference Diameter / mm Number of lines Lenght / mm Liros PPSLS 125 1,05 Liros PPSLS 125 1,05 1005 Liros PPSLS 125...
- Page 17 Sol Sports Ind. e Com. Ltda. Rua Walter Marquardt, 1180 cp 370 89259-565 Jaraguá do Sul, SC BRAZIL Telefone (+55) 47 3275 7753 E-mail: info@solsports.com.br www.solparagliders.com.br facebook: solparagliders instagram @solparagliders...
