INSTALLATION and USER'S MANUAL

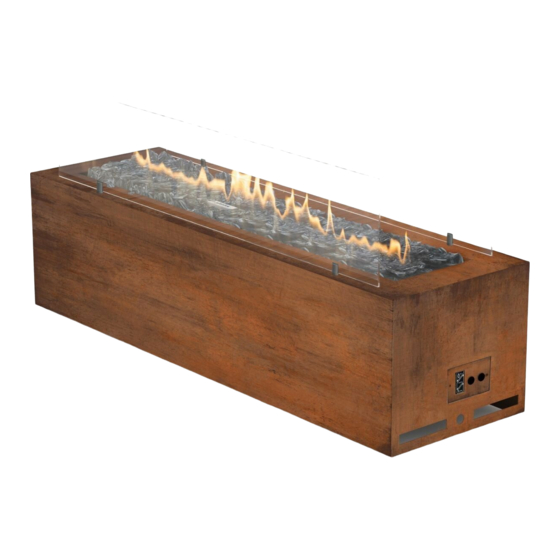

Galio Corten/Black Manual
G20/G25 (Natural Gas) G30/G31 (Propane-Butane/Propane)
L
L2
L1
L3
H
H1
H2
L
L1
L2
L3
D

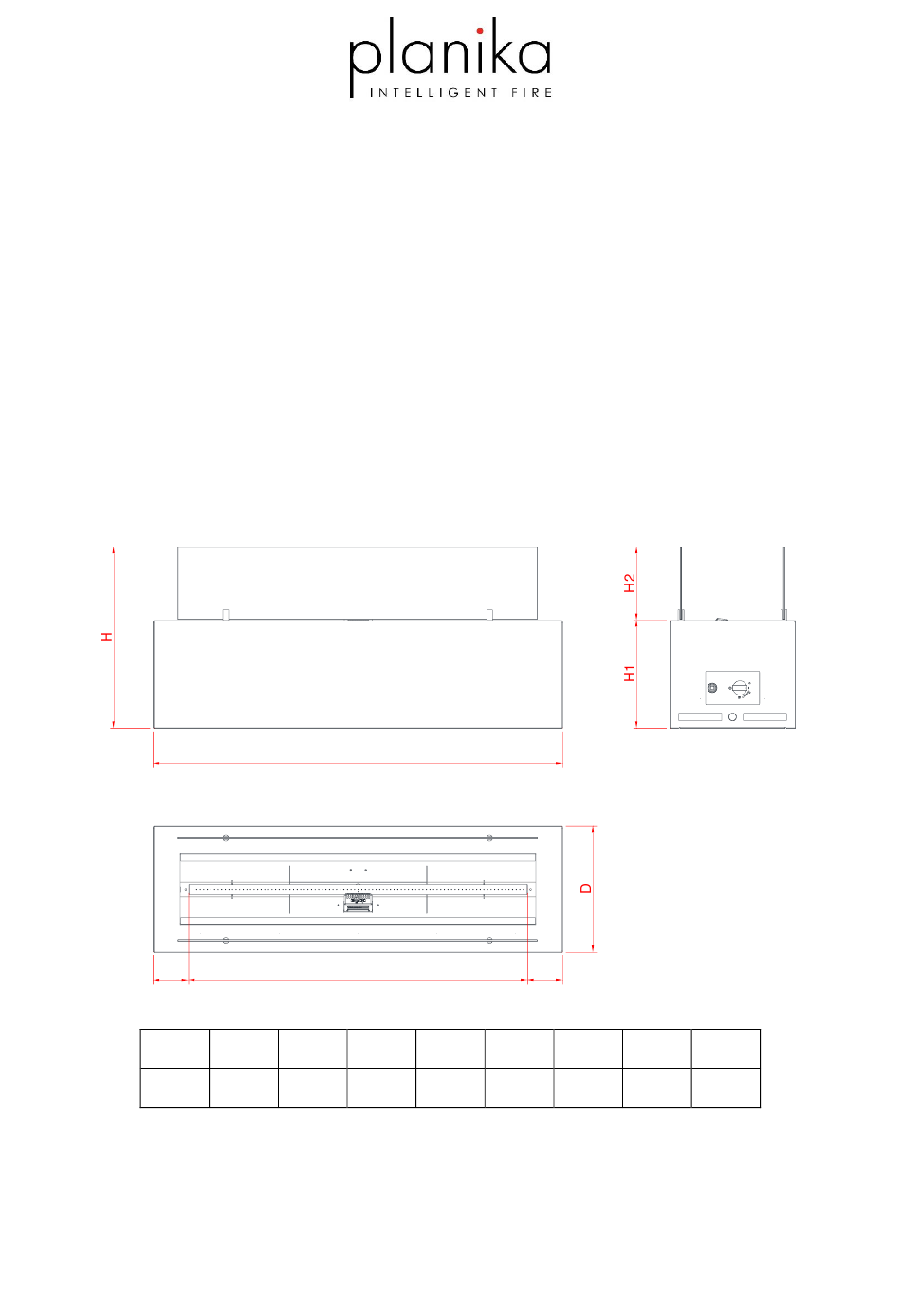

[mm]
500
300
200
1140
944
98
98
350
Manufactured by
Planika Sp. z o.o.
Bydgoska 38
86-061 Brzoza
Poland
Copyright Planika Sp. z o.o.
www.planikafires.com
IG0266#03
02.06.2020
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planika Galio Corten
Summary of Contents for Planika Galio Corten
- Page 1 INSTALLATION and USER’S MANUAL Galio Corten/Black Manual G20/G25 (Natural Gas) G30/G31 (Propane-Butane/Propane) [mm] 1140 Manufactured by Planika Sp. z o.o. Bydgoska 38 86-061 Brzoza Poland Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020...
-
Page 2: Table Of Contents
Checking the flame appearance........................16 MAINTENANCE AND UPKEEP ..........................16 6.1. Testing and cleaning ............................16 6.2. Glass cleaning ..............................16 TROUBLESHOOTING ..............................17 TECHNICAL SPECIFICATION ............................. 18 MANUFACTURER’S CONTACT DETAILS ........................18 Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 3: Introduction
• If The Galio Corten/Black Manual is not in use for a longer period of time (e.g. winter time), we advise you to store it inside. Copyright Planika Sp. z o.o. -
Page 4: Safety Instruction Regarding The Use Of The Gas Cylinders
• Corrosion of the coating of the base of Galio Corten is a natural process resulting from the characteristics of the Corten steel which the fireplace is made of. It is an additional protective layer of the appliance against the negative influence of unfavorable weather conditions. -
Page 5: Installation
• Place Galio Corten/Black Manual on a flat, paved surface outside of the building, preferably on the place of final installation. Leave sufficient space on the side of the appliance where control panel is located (minimum 1 m). -
Page 6: Installation Of Glass Screens
• In the case of Galio Corten/Black Manual powered with natural gas, to obtain the optimum image of the flame, cover the burner with a single layer of decorative stones leaving some spaces uncovered of approximately every 10 cm (Photo 2). -
Page 7: Gas Cylinder Montage (Only Lpg Version)
Figure 4 Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 8: Installation Of The Gas Linkage
3.5.2. Connection and replacement of the gas cylinder (LPG version) The Galio Corten/Black Manual is delivered together with an elastic gas linkage which, on one end is connected to the valve of the device and on the other end to the 37mbar regulator (in the twist-on version) ready to be connected to the gas cylinder. - Page 9 (See point 5.1). • After removing the leak one may open the gas bottle valve again. Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020...
- Page 10 Disconnection of the gas cylinder Twist-on connection Quick-release Turn off the Galio Corten/Black Manual– put it into the OFF position. The main and pilot burner need to be turned off. 2. Turn the bottle valve into the OFF position 2. Turn the switch into the OFF position.
-
Page 11: Regulator Replacement (Lpg Version)
5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50 mbar. Use only the redactors that comply with the EN16129 European Norm. 2. Turn off the Galio Corten/Black Manual– the „OFF” position. The main burner and the pilot burner need to be turned off. -
Page 12: Operating Instructions
4.1. General Notes The Galio Corten/Black Manual fireplace has a control valve with a built-in ignition for the main burner (without pilot flame). The flame height of the main burner may be appropriately regulated with by turning the knob. Next to the knob is placed elective ignition button (powered by AAA battery). -
Page 13: Start-Up Of The Device
2-3 times. This will be required especially when you have replaced and installed a new LPG gas cylinder. • When the flame is ignited keep holding the knob for around 5 seconds until the thermo-couple, which will keep the main valve in an open position, warms up. Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 14: Regulation Of The Flame Size
To turn off the device, simultaneously press and turn the knob all the way clockwise (Photo 8). The gas supply will be cut and the flame on burner will be turned off. Photo 8 • Additionally, close also the valve on the gas cylinder. Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 15: Testing
To do that apply all connections with soapy water (or water with another foamy substance) or with a professional spray for leak detection. • If air-bubbles are present that means the connection has a leak. Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 16: Checking The Flame Appearance
If the problem happens again please contact the dealer. 5.2 Checking the flame appearance. • Burn The Galio Corten/Black Manual on max flame height and check the appearance of the flame. • The flame should be linear and evenly placed on the whole length of the main burner. -
Page 17: Troubleshooting
A vivid/ bright orange and Holes blocked in the apparatus Unmount the burner and clean/ smoky flame of the producing the gas and air mixture. unblock the apparatus’ holes. burner. Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020... -
Page 18: Technical Specification
Thermocouple Gas control valve BS190 Flexible hose (4 m) Ø9mm MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoska 38 86-061 Brzoza Poland Telephone: + 48 52 364 11 60 Copyright Planika Sp. z o.o. www.planikafires.com IG0266#03 02.06.2020...
