INSTALLATION MANUAL
L1
www.planikafires.com
Lincoln
B
C
D
x 1
D
D1
i1262#03
E
x 1
x 1
F
x 3
x 1
G
x 1
x 1
H
H1
L
L1
L2
D
D1
05.06.2017
H
x 1
I
x 1
['']
[mm]
5
1050
41
/
16
3
644
25
/
8
13
1062
41
/
16
11
246
9
/
16
7
570
22
/
16
3
390
15
/
8
1
356
14
/
64
Fixed unit's
weight
= 87 kg / 191,8 lbs
1
Advertisement
Table of Contents
Related Manuals for Planika Linkoln
Summary of Contents for Planika Linkoln

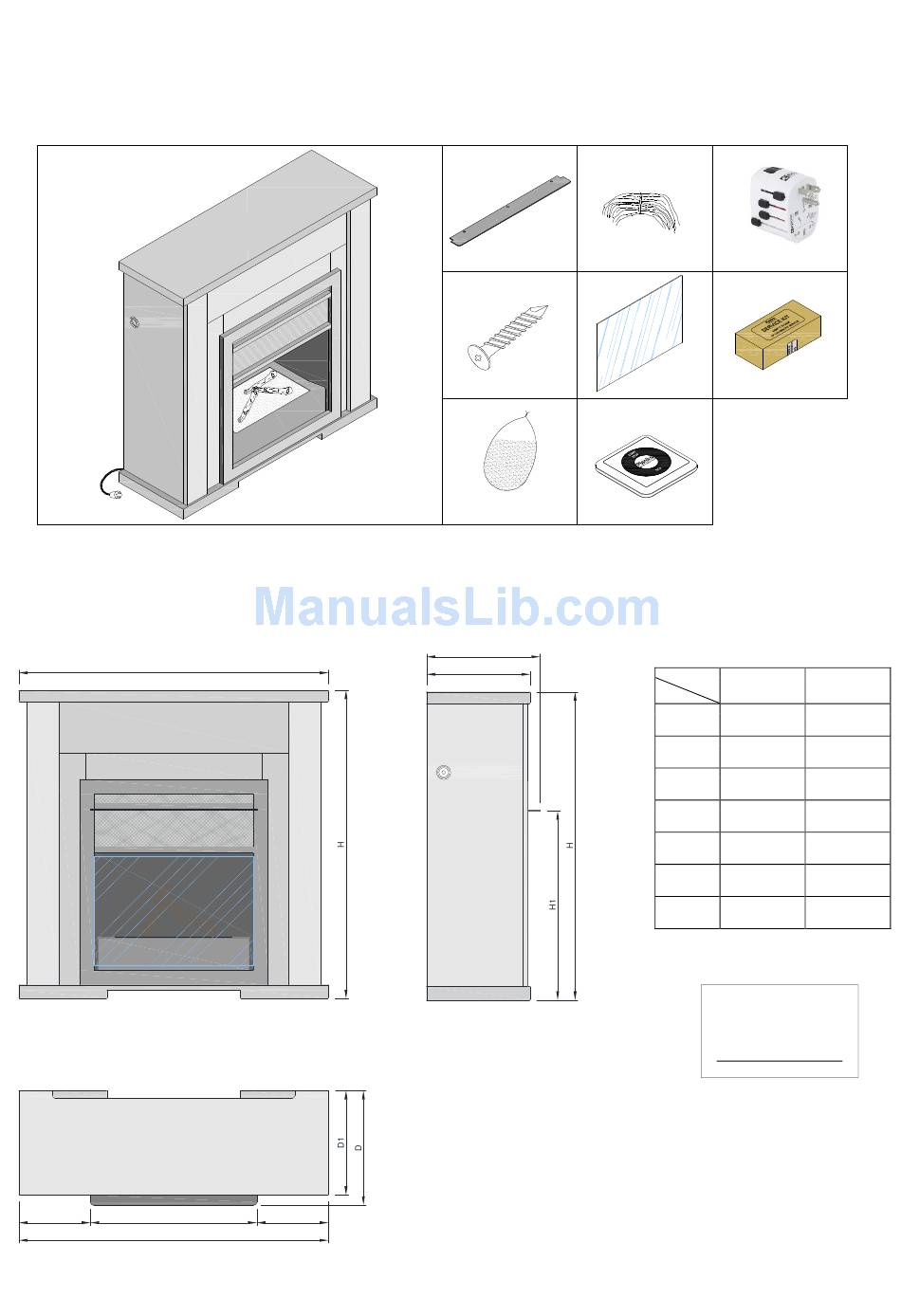

- Page 1 INSTALLATION MANUAL Lincoln [‘’] [mm] 1050 1062 Fixed unit’s weight = 87 kg / 191,8 lbs Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017...
